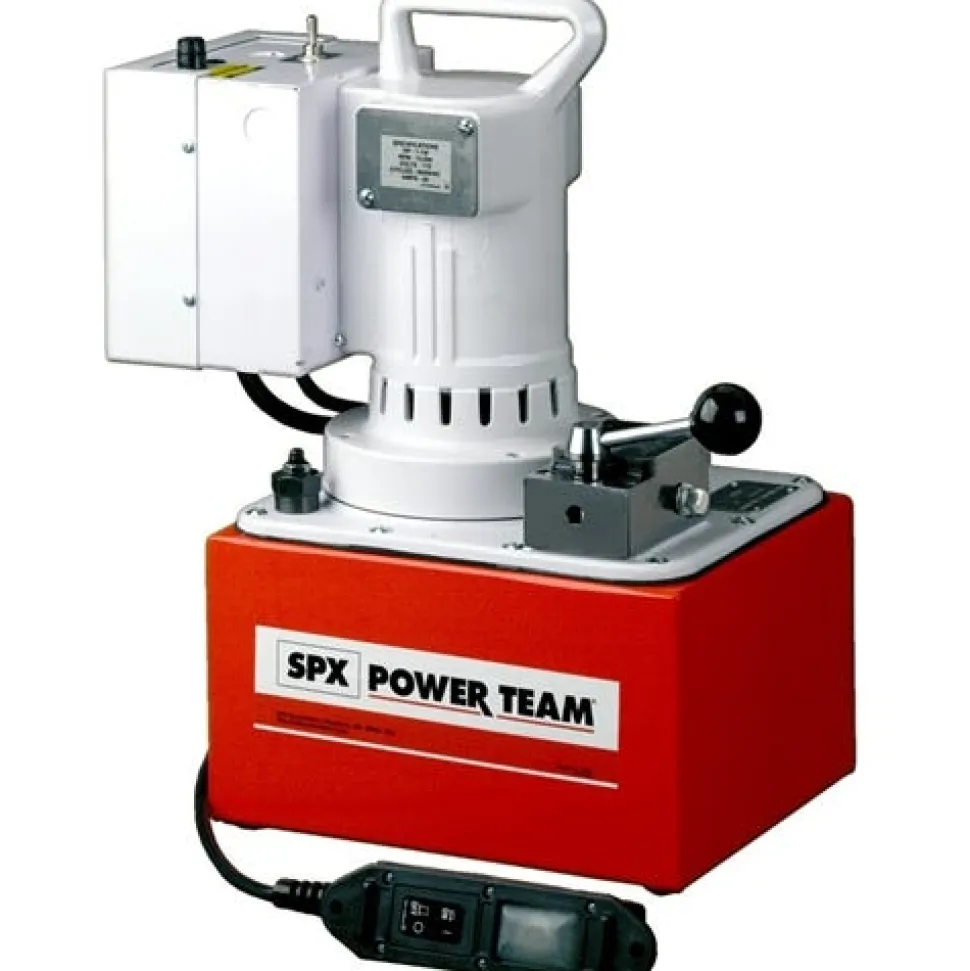

Power Team Electric Hydraulic Pump – Double Acting PE554

Power Team

Electric Hydraulic Pump – Double Acting PE554

FEATURES:

• Two-speed high performance.
• Designed for operating pressures to 10;000 psi.
• Has 1-1/8 hp; 12;000 rpm; 11/115 volt; 50/60Hz universal motor; draws 25 amps at full load; starts at reduced voltage.
• Internal relief valve preset at 10;000 psi; 2-1/2 gallon metal reservoir.
• 10 foot remote motor control
• 4-way valve for double-acting systems. 9506 valve; Advance Hold; Return.

SPECIFICATIONS:

For Use with Cylinder Type	Double-Acting
Description	Base model 1 1/8 hp pump with 2 1/2 gallon reservoir; and 4-way valve for double-acting systems.
Valve Type	4-Way
Valve Number	9506
Valve Function	Advance Hold Return
Control Switch	Remote Motor
Motor (4;000 rpm)	1 1/8 hp*; 110/115 VAC 50/60 Hz; Single Phase
ReservoirUsable (cu. in.)	1150
Oil Delivery (cu. in./min. @) 0 psi	704
Oil Delivery (cu. in./min. @) 700 psi	440
Oil Delivery (cu. in./min. @) 5;000 psi	74
Oil Delivery (cu. in./min. @) 10;000 psi	56

“
