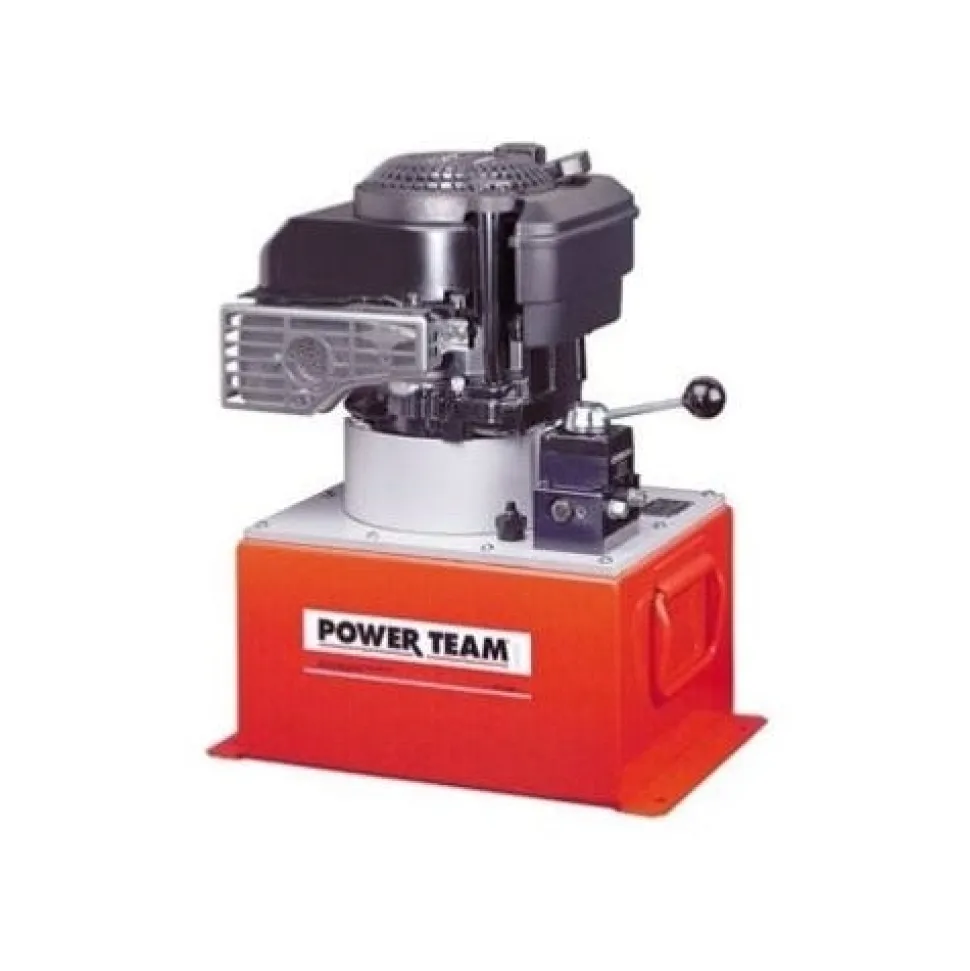

Power Team Single-Acting Gasoline Hydraulic Pump PG553

Power Team

Single-Acting Gasoline Hydraulic Pump PG553

FEATURES:

• A logical choice at work sites where electricity or compressed air are unavailable.
• All gasoline engine/hydraulic pumps feature inPosi-Checkin valve to guard against pressure loss when valve is shifted from inadvancein to inholdin.
• 6 hp Intek inDiamond Edgein 4-cycle; by Briggs & Stratton; 5 gallon reservoir.
• Comes with a 9520 3-way valve for single-acting cylinders.
• 6 hp (4;5 kW) Intek Diamond Edge 4-cycle; by Briggs & Stratton. 5 gallon (19 liter) reservoir.
• Same basic pump as PE55 series electrical Vanguard pumps.
• PG553 has a 9520 3-way valve for single-acting cylinders.
• PG554 has a 9506 4-way valve for double-acting cylinders.
• For up to 150 Ton Cylinders

SPECIFICATIONs:

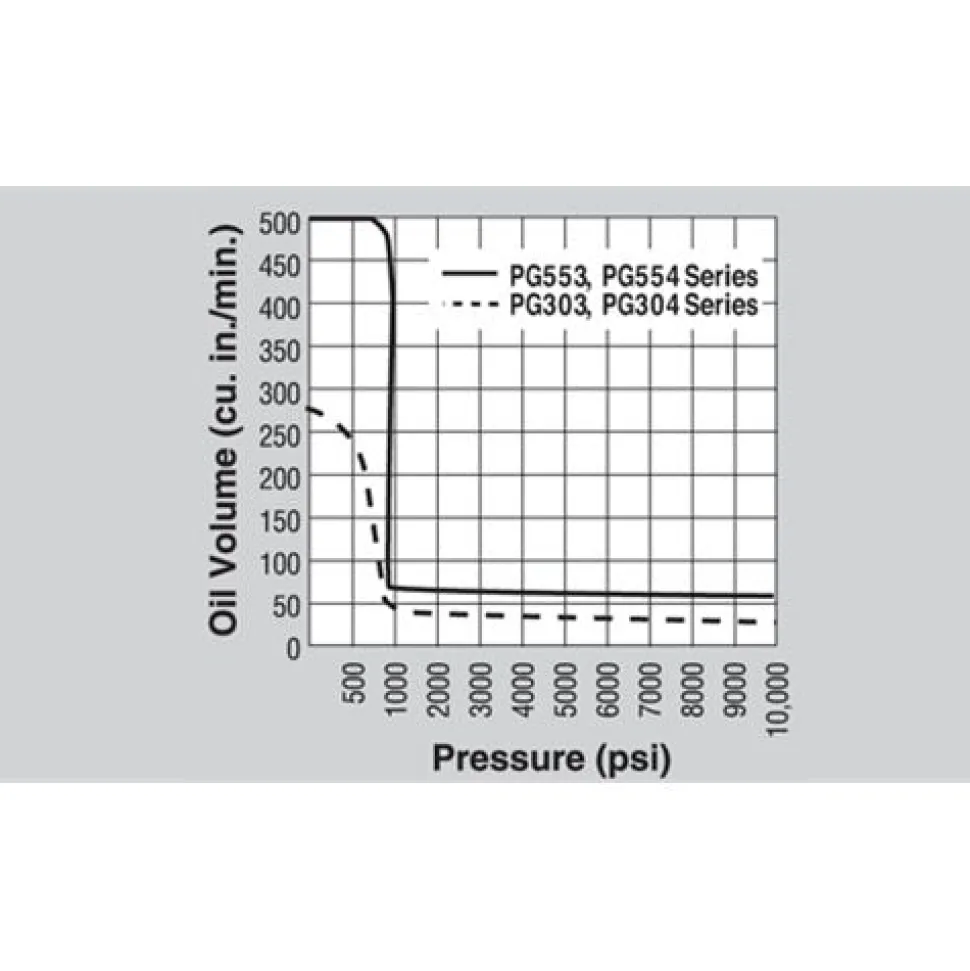

• Oil Delivery @ 10;000 PSI 55 CU.
• Order Number: PG553
• For Use with Cylinder Type: Single-Acting
• Description: 6 hp pump with 5.7 gallon reservoir and single-acting valve.
• Valve Type: 3-Way
• Valve Number: 9506
• Valve Function: Advance Hold Return
• Reservoir Usable (cu. in.): 1300
• Horsepower: 6
• Cycle: 4

“
