Power Team Single/Double-Acting Max Output Gasoline Powered Pump PG120HM

Power Team

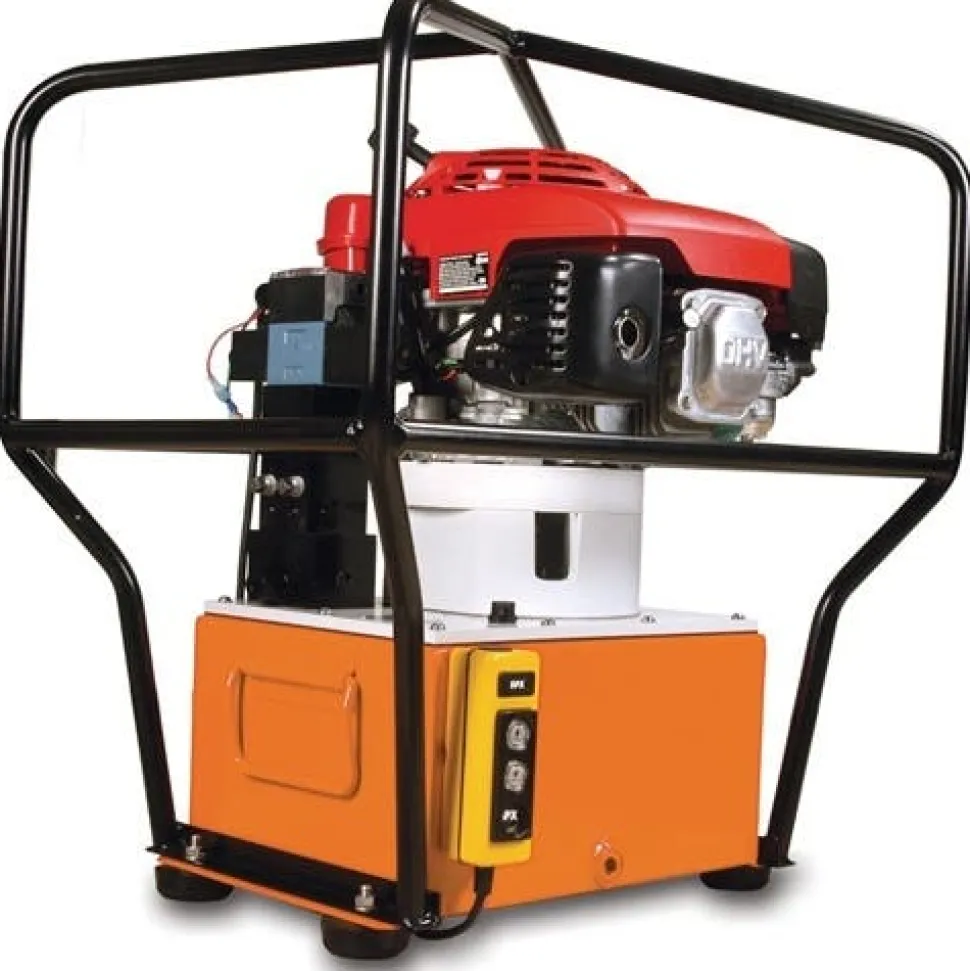

Single/Double-Acting Max Output Gasoline Powered Pump PG120HM

FEATURES:

• Financing is available. Click here for details.
• Two-speed high performance pumps ideal for construction; structure moving and rigging applications.
• A logical choice at work sites where electricity or compressed air are unavailable. For single- or double-acting cylinders at operating pressures to 10;000 psi.
• All gasoline engine/hydraulic pumps feature inPosi-Checkin valve to guard against pressure loss when valve is shifted from inadvancein to inholdin.
• PG1200 Series pumps powered by a Honda 4-cycle; 5.5 hp engine with automatic decompression and electronic ignition. Deliver over 1/2 gallon (130 cu. in.) of oil per minute at 10;000 psi.
• A 5 gallon reservoir means adequate capacity for multi-cylinder applications. Dual element air cleaner protects engine from dusty environments.
• Heavy duty inroll cagein provides pick-up points for lifting. Horizontal bars on PG1203; PG1204 and PG1204S protect unit; provide hand holds for carrying.
• Rubber anti-skid insulation on bottom of reservoir resists skidding and dampens vibration. PG1200M-4 and PG1200M-4D include a pump cart with 12″ wheels.
• Adjustable external pressure regulator.

SPECIFICATIONS:

For Use with Cylinder Type	Single-Acting/ Double-Acting
Description	PG1200M-4D; except without inRoll Cagein and cart. Ideal for house moving industry
Valve Type	4-Way Manifold
Valve Number	9506 9642
Valve Functio	Advance Hold Return
Usable(cu. in.)	1;300
Reservoir Horsepower	5.5
Cycle	4

“
