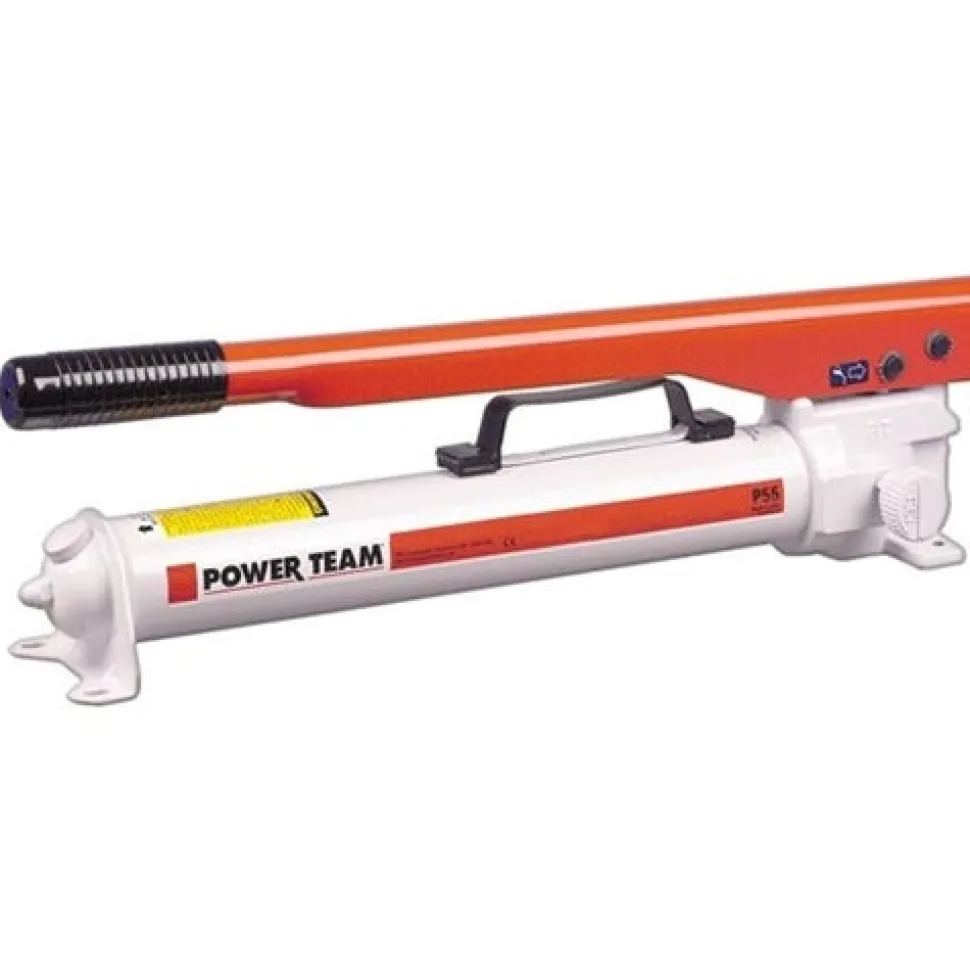

Power Team SPX Hydraulic Hand Pump 1 Speed P55

• Power Team SPX
• SPX Hydraulic Hand Pump 1 Speed P55
• BEST SUITED FOR APPLICATIONS WHERE THERE IS LITTLE OR NO FREE TRAVEL.
• All metal construction; won’t burn through in welding environments.
• Formed metal handle provides less flex; and reduces operator fatigue.
• Convenient fill port on P23 and P55 allows pumps to be filled in a horizontal or vertical position.
• Fill cap seal acts as safety valve preventing over-pressurizing of reservoir.
• Relief valve inboard of check valve prevents loads from drifting down.
• Large valve knob gives added control for slowly metering loads down.
• Power Team hand pumps; with the angled fill port; have a built in inrelief valvein protection system. This system is designed to protect over-pressurization of the reservoir from sudden back pressure. This system also works as a seal to prevent oil leaks.
• SPECIFICATIONS:
• Order No.: P55
• For Use With: Single Acting Cylinders
• Speed: 1
• Volume per Stroke (cu. In): 0.16
• Maximum Pressure (psi): 10;000
• Handle Effort (lbs.): 145
• Oil Cap Reservoir: 55
• Usable Oil Cap Reservoir (cu. In): 45
• Oil Port (in): 3/8 NPTF
• Weight (lbs): 15.8

“
