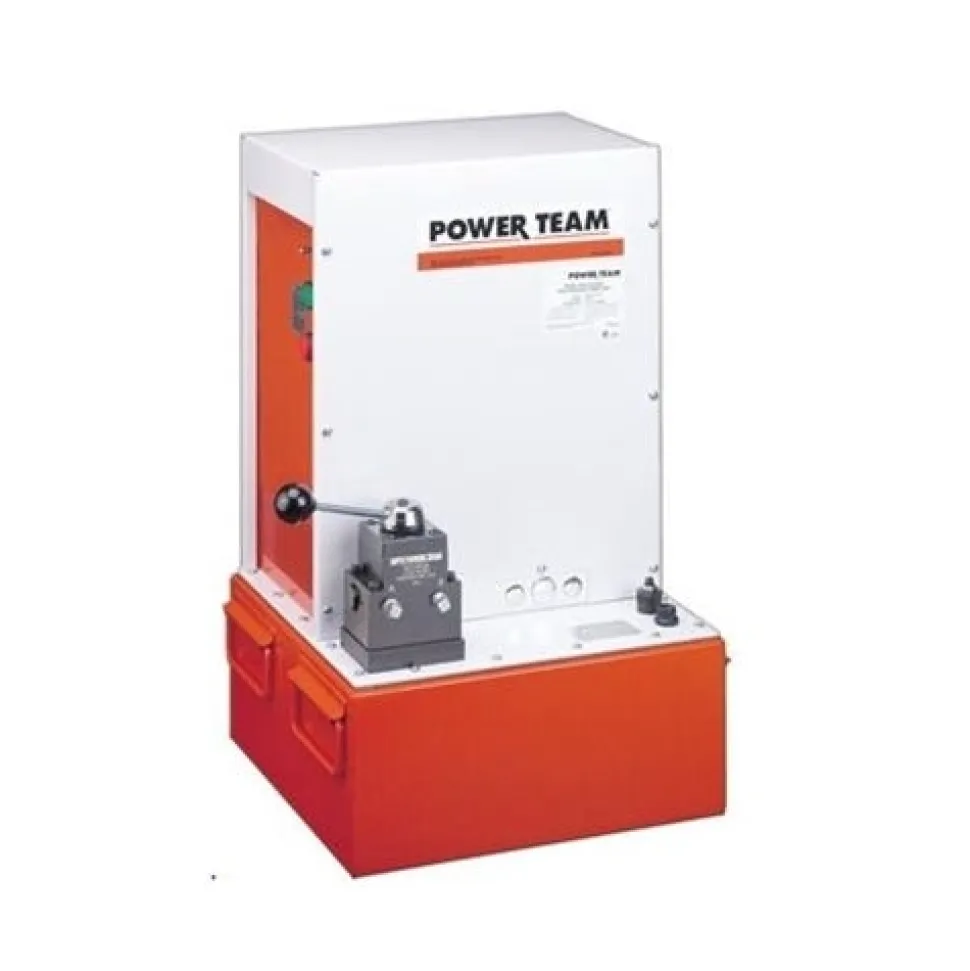

Power Team Up to 200 Ton Electric Hydraulic Pump – Double Acting PQ604

Power Team

Up to 200 Ton Electric Hydraulic Pump – Double Acting PQ604

FEATURES:

• Financing is available. Click here for details.
• For operating single- or double-acting cylinders.
• Metal shroud keeps dirt and moisture out of motor and electrical components.
• Electrical shut-down feature prevents unintentional restarting of motor following an electrical service interruption.
• Internal relief valve limits pressure to 10;000 psi. External relief valve is adjustable from 1;000 to 10;000 psi.
• Pumps operate below maximum OSHA noise limitation (74-76 dBA).
• Start and operate under full load; even with voltage reduced 10%.

SPECIFICATIONS:

<td2 hp; 230 Volt 60 Hz; Single Phase

For Use with Cylinder Type	Double-Acting
Description	2 hp pump with 5.7 gallon reservoir and manual valve.
Valve Type	4-Way
Valve Number	9506
Valve Function	Advance Hold Return
Control Switch	115V -22 amps 230V -11 amps
Motor
ReservoirUsable (cu. in.)	1;250
Oil Delivery (cu. in./min. @) 100 psi	730
Oil Delivery (cu. in./min. @) 1;000 psi	70
Oil Delivery (cu. in./min. @) 5;000 psi	65
Oil Delivery (cu. in./min. @) 10;000 psi	60

“
