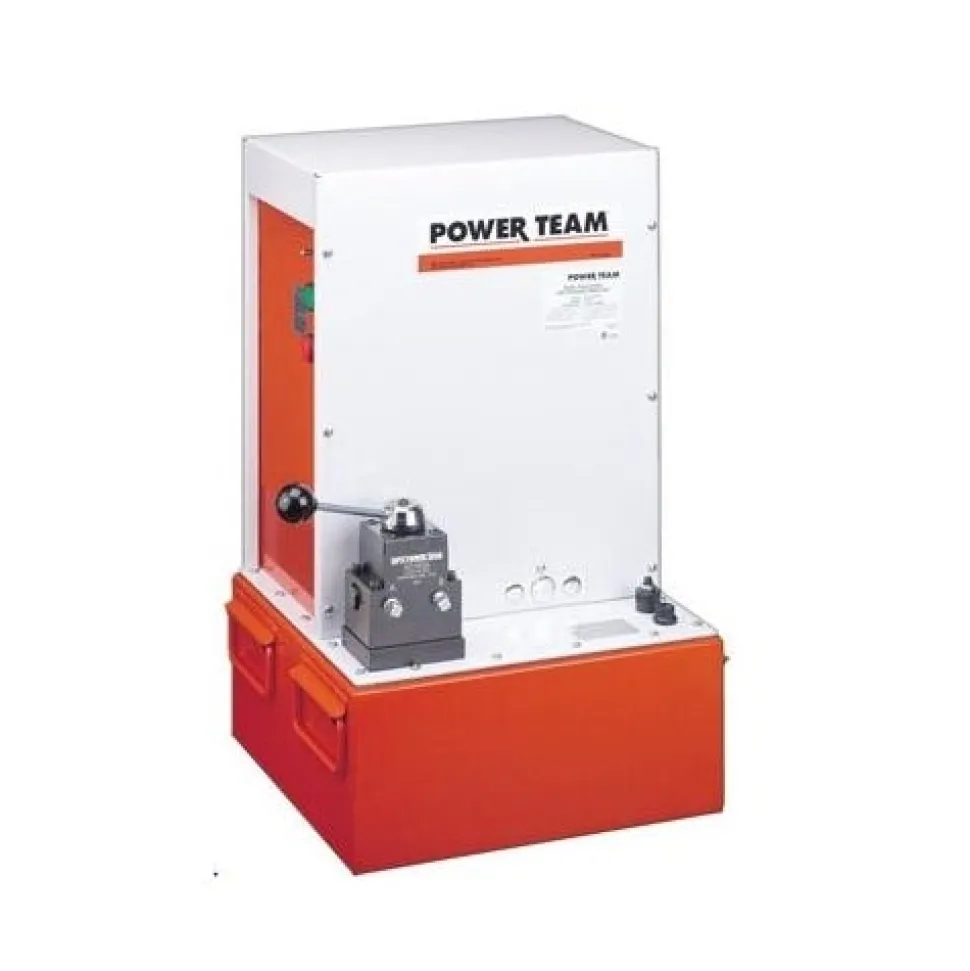

Power Team Up to 400 Ton Electric Hydraulic Pump – Double Acting PQ1204S

Power Team

Up to 400 Ton Electric Hydraulic Pump – Double Acting PQ1204S

FEATURES:

• Financing is available. Click here for details.
• Start and operate under full load; even with voltage reduced 10%.
• Electrical shut-down feature prevents unintentional restarting of motor following an electrical service interruption.
• Internal relief valve limits pressure to 10;000 psi. External relief valve is adjustable from 1;000 to 10;000 psi.
• Pump prewired at factory with a 3hp; 460 volt; 60 Hz. 3 Phase motor. Other electrical configurations are available.
• 24 volt control circuits on units with remote controls for added user/operator safety.
• 3 hp (3 phase) motor with thermal overload protection.
• Motor starter and heater element supplied as standard equipment; no hidden charges !
• Metal shroud keeps dirt and moisture out of motor and electrical components.
• Pumps operate below maximum OSHA noise limitation.

SPECIFICATIONS:

For Use with Cylinder Type	Double-Acting

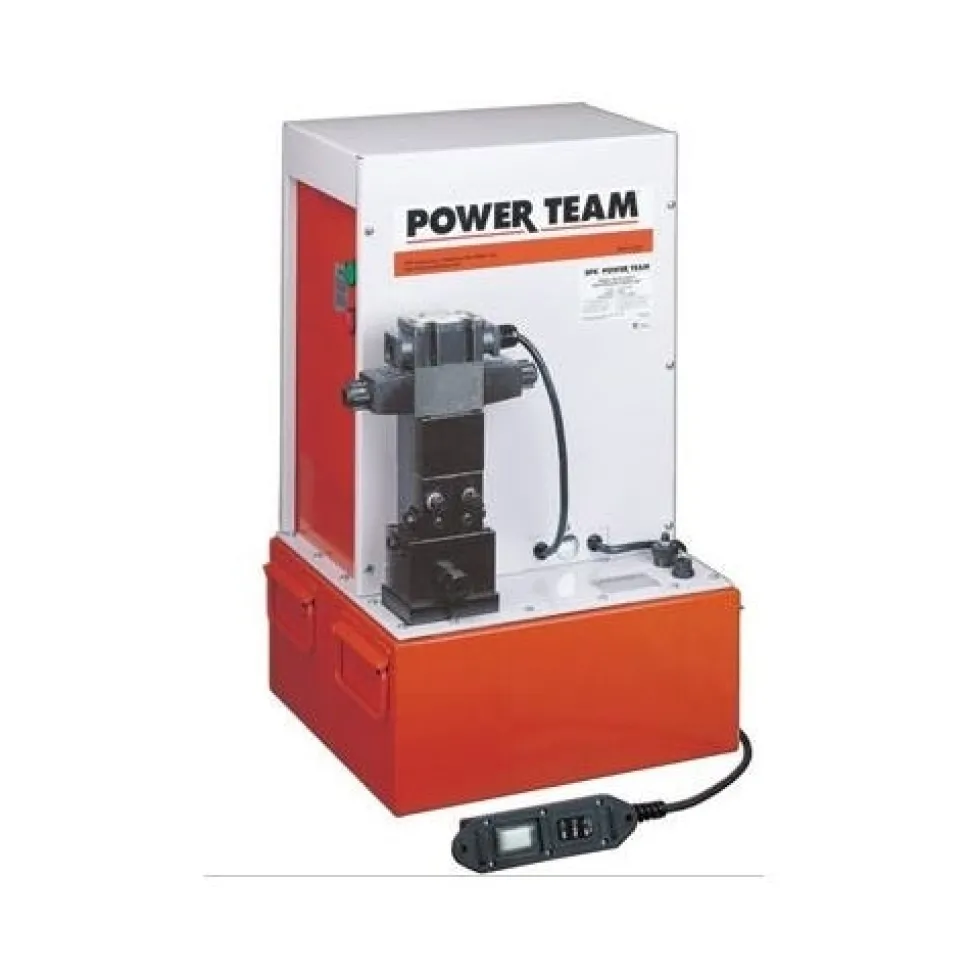

Description	PQ1204; except has solenoid operated remote valve.
Valve Type	4-Way
Valve Number	9512
Valve Function	Advance Hold Return
MaximumAmp Draw at 10;000 psi	230V -10.5 amps 460V -5.3 amps
Motor	3 hp; 460 Volt 60 Hz; 3 Phase
ReservoirUsable (cu. in.)	1;250
Oil Delivery (cu. in./min. @) 100 psi	730
Oil Delivery (cu. in./min. @) 1;000 psi	160
Oil Delivery (cu. in./min. @) 5;000 psi	130
Oil Delivery (cu. in./min. @) 10;000 psi	120

“
