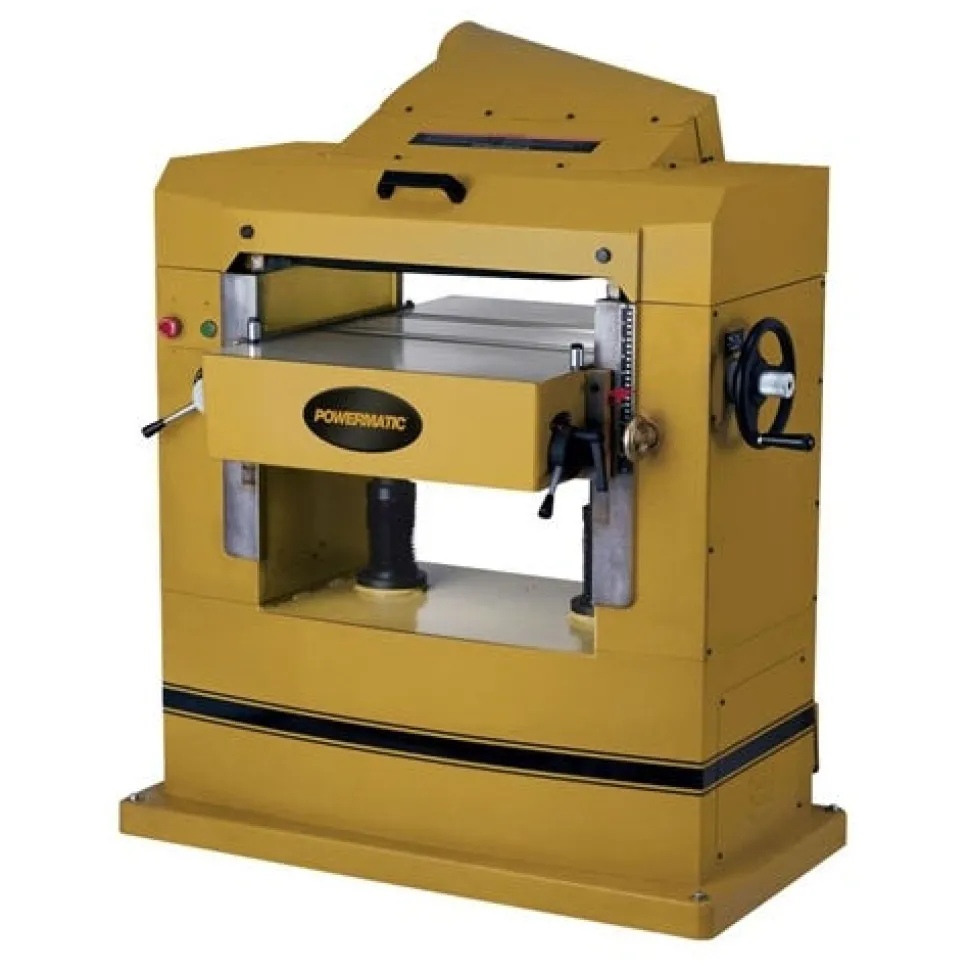

Powermatic 201 22″ Planer 7.5HP 1PH 230V 1791261

Powermatic

201 22 Planer 7.5HP 1PH 230V 1791261

This 1;300 lb. heavy-duty cast iron planer offers rock solid rigidity and accurate planing for years to come. The model 201 is available with a 7-1 /2 horsepower; single-phase motor. This planer is perfect for the small to medium shop with continuous planing requirements.

FEATURES:

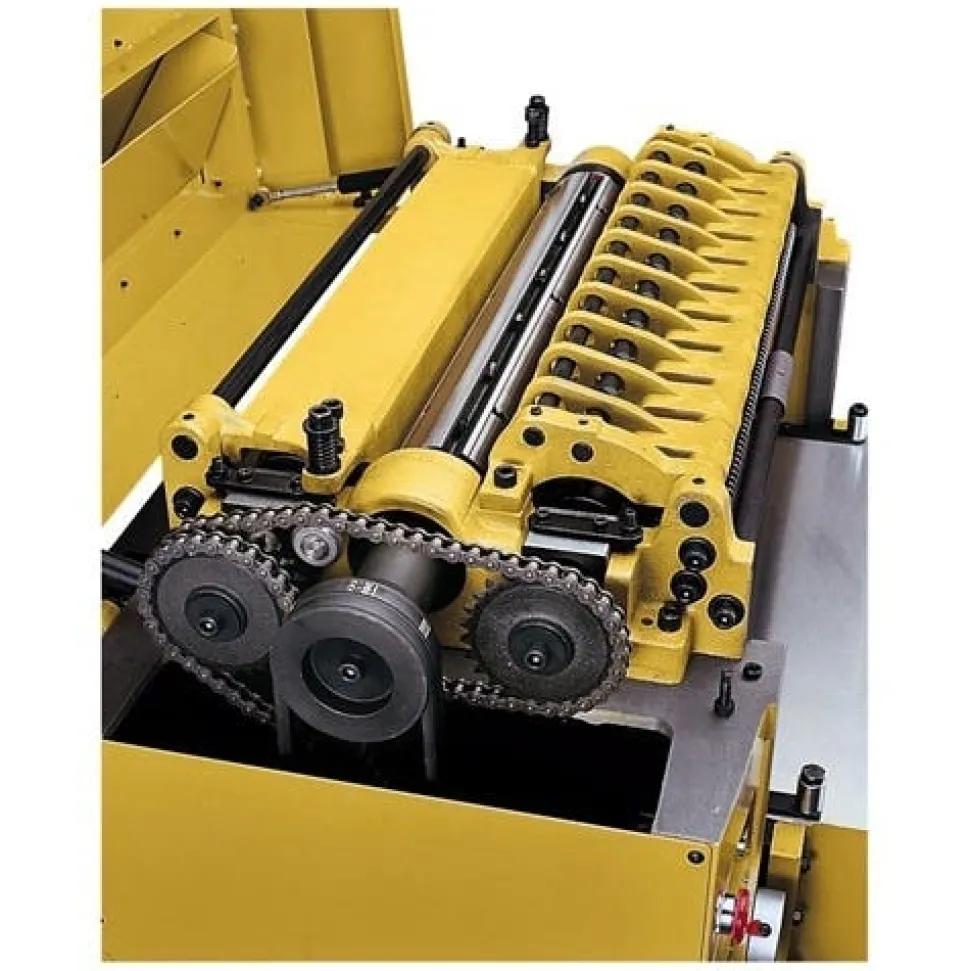

• Straight knife cutterhead with 4 high speed steel knives gives a clean smooth cut.
• Segmented infeed roller with sectional chipbreaker for planing multiple height stock.
• All cast iron construction; the heavy cast iron table travels on two large lead scews.
• Roller bearing-mounted feed rollers for smooth operation and long life.

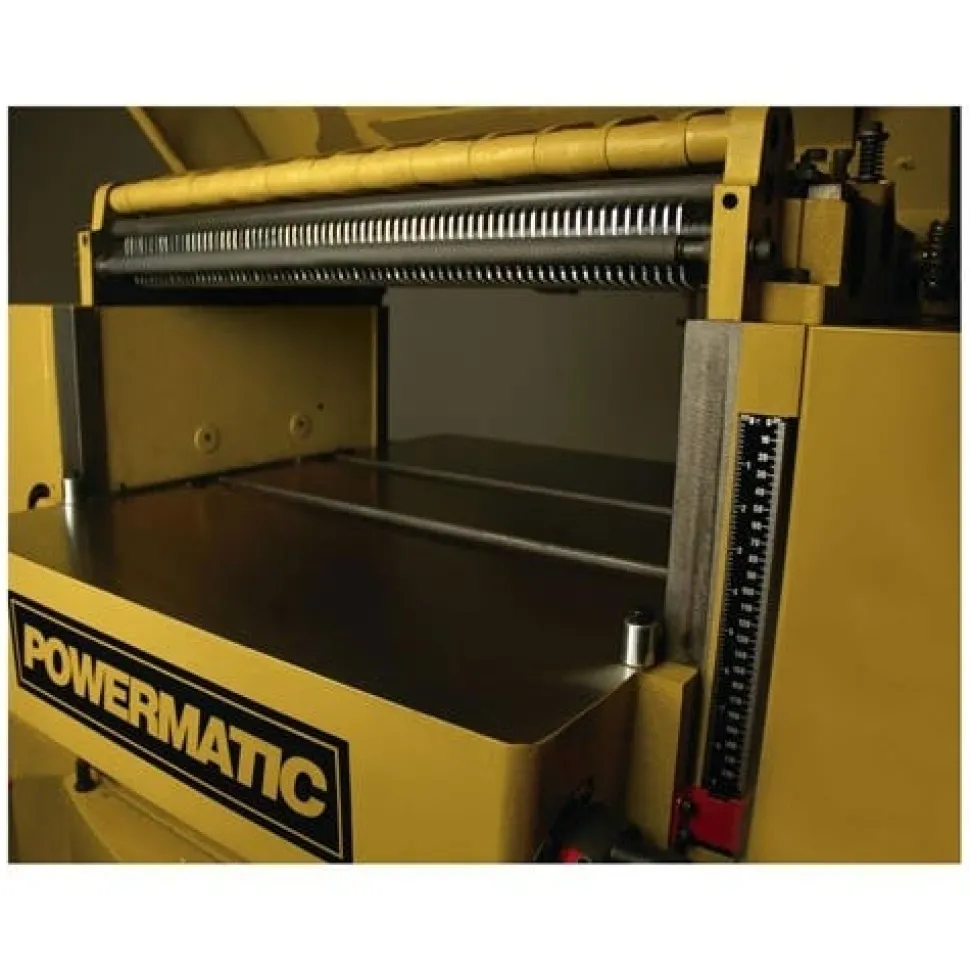

• Adjustable bed rollers allow smooth feeding of rough or finished workpieces.
• 2 feed speeds – 20/30 fpm – accommodates rough and fine finish work.
• Dust chute with 5″ port for dust collection.

SPECIFICATIONS:

Style (Type)	Floor
Type of Cutterhead	Straight Knife
Cutterhead Speed (RPM)	4;800
Cutterhead Diameter (In.)	3-1/4
Cuts Per Minute	19;200
Number of Knives	4 Straight High Speed Steel Knives
Maximum Depth of Cut (In.)	3/16
Maximum Full Width Depth of Cut (In.)	3/16
Maximum Planing Width (In.)	22
Maximum Planing Thickness (In.)	9-1/4
Minimum Planing Length (In.)	10
Feed Rate (FPM)	20/30
Infeed Roller Diameter (In.)	3
Segmented Infeed Roller Diameter (In.)	3
Outfeed Roller Diameter (In.)	3
Bed Rollers Adjustable from Front	2
Table Size (L x W) (In.)	32-1/4 x 24
Table Support	2 Column
Column Diameter (In.)	2-1/2

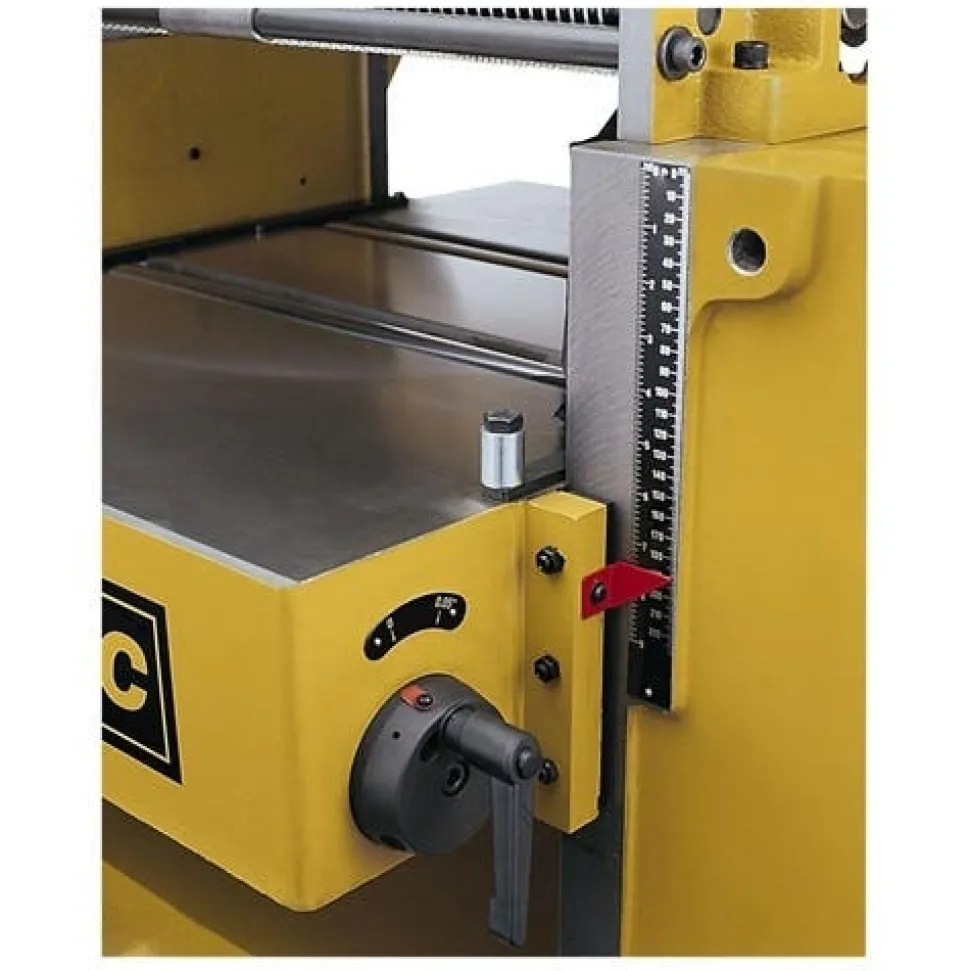

Digital Readout	Inch / Metric
Dust Collection Minimum CFM Required (CFM)	900
Motor Power (HP)	7-1/2
Motor Phase	1
Motor Voltage (V.)	230 Only
Prewired Voltage (V.)	230
Recommended Circuit Size (Amps.)	50

“
