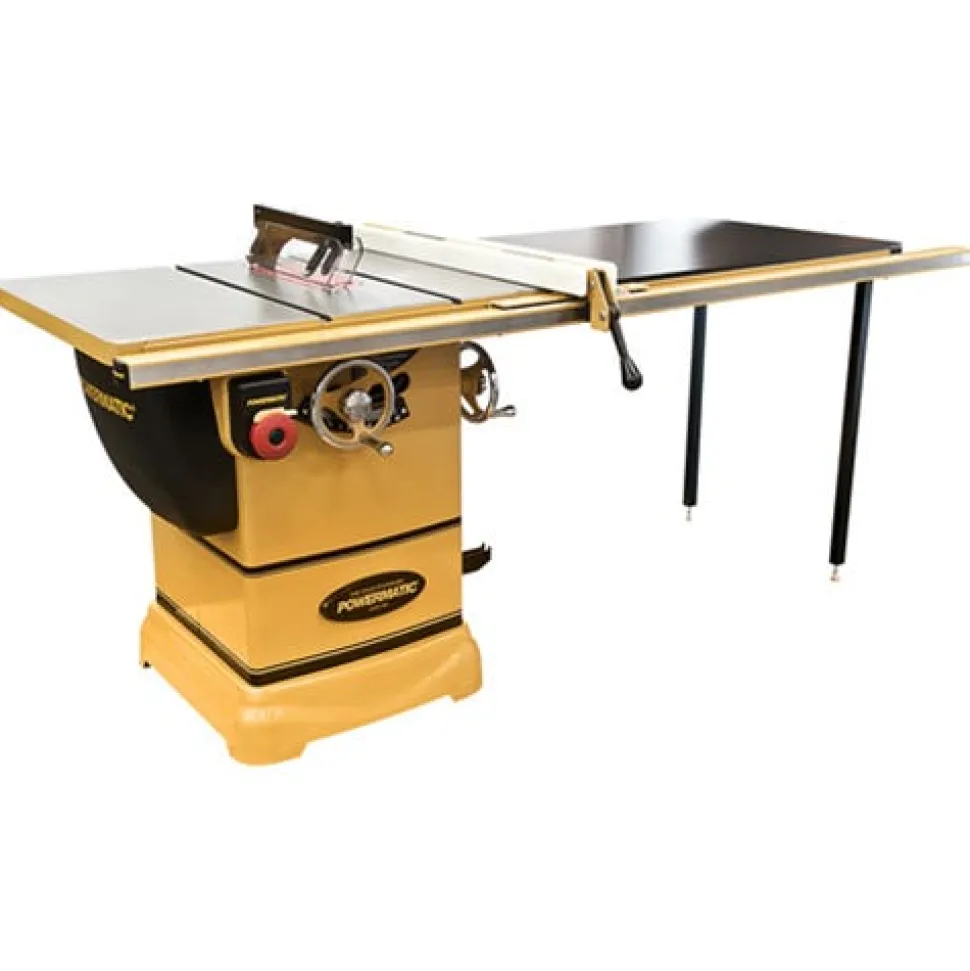

Powermatic PM1000 Table Saw 52″ Maximum Rip Capacity 1791001K

• Powermatic
• FREE SHIPPING

• PM1000 Table Saw 52 Maximum Rip Capacity 1791001K
• Cabinet saw that only requires 115V power
• A blade surround and collection hose provide an unobstructed path; maximizing dust collection
• Conveniently located hands free power switch
• Tool-less guard assembly with independent side leaves is easy to use; maximizing safety
• The sturdy miter gauge pivots 60 degrees to either side; allowing easy adjustment for a full range of cuts
• Exclusive AccuFence provides rigidity and precision
• The poly-V belt drive system reduces vibration and maximizes efficiency
• Ergonomically designed 7 handwheels provide momentum making blade height and bevel adjustments easy
• Arbor lock allows for one handed blade changes with minimal tools
• Cast iron work surface features a beveled edge
• Bevel scale is conveniently located with large; easy to read numbers
• Style (Type)    Cabinet
• Blade Diameter (In.)    10
• Arbor Diameter (In.)    5/8
• Arbor Speed (RPM)    4200
• Maximum Depth of Cut (In.)    3-1/8
• Maximum Depth of Cut at 45 Degrees (In.)    2-1/8
• Maximum Rip Left of Blade (In.)    12
• Maximum Rip Right of Blade (In.)    52
• Maximum Diameter of Dado (In.)    8
• Maximum Width of Dado (In.)    13/16
• Table Type    Cast Iron
• Table Height from Floor (In.)    34-1/4
• Table Size (In.)    20 x 27
• Dust Collection Minimum CFM Required (CFM)    350
• Dust Port Outside Diameter (In.)    4
• Motor Power (HP)    1-3/4
• Motor Phase    1
• Motor Voltage (V.)    115/230
• Prewired Voltage (V.)    115
• Motor Current (Amps)    15/7.5
• Recommended Circuit Size (Amps.)    20

“
