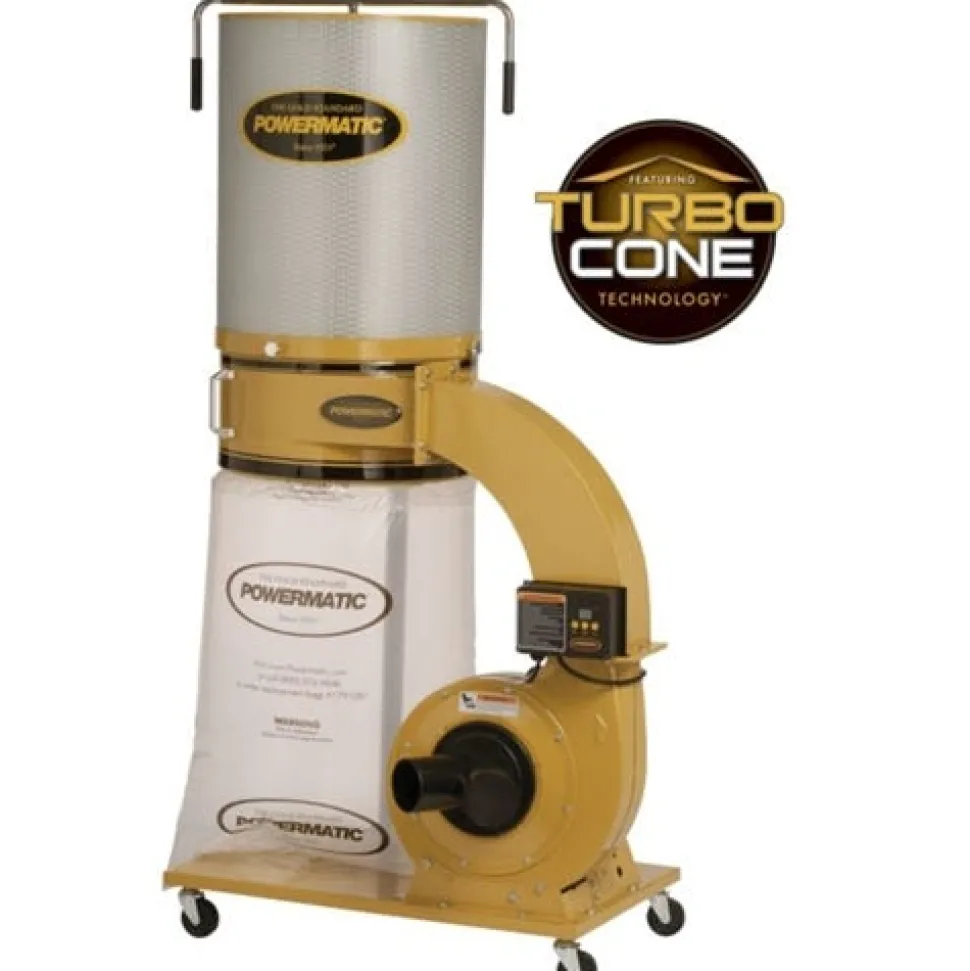

Powermatic PM1300 Dust Collector with Canister Kit 1791079K

• Powermatic
• TurboCone improves chip separation and collector bag packing efficiency
• The cone eliminates premature filter clogging for sustained performance
• Remote-controlled digital timer can be programmed for up to 99 minutes
• Canister filter offers over six times filtering surface area of standard bags
• All-metal duct construction for rigidity and improved air flow
• Dual 4 dust ports for simultaneous collection from two machines
• 1-3/4HP motor offers plenty of power for effective air movement
• Collection bag uses a snap ring for rapid installation and removal
• 10 cubic feet capacity collection bag reduces number of bag changes.
• Four swivel casters for easy maneuverability
• Specifications
• Part Number:    1791079K
• Trademark:    TurboCone
• Remote Control:    Yes
• Sound Rating:    75 – 90 dB
• 1-Hose Connection Diameter:    6 in
• 2-Hoses Connection Diameter:    4 in
• Bag Diameter:    20 in
• Filter Bag/Canister Length:    26 in
• Collection Bag Capacity:    10 cubic foot
• Collection Bag Length:    30 in
• Air Flow @ 6″:    1;064 cu.ft/min
• Static Pressure:    11.31 inch of water
• Particle Size (Micron):    98% of 2 micron particles: 86% of 1 micron particles
• Velocity @ 6″5;374 foot per minute
• Air Inlet:    (1) at 6″ or (2) at 4″
• Impeller Diameter:    12 in
• Impeller Fins:    6
• Impeller Material:    steel
• Separator Tank Diameter:    20 in
• Separator Tank Height:    10 in
• Motor Power:    1 HP
• Motor Phase:    1 Ph
• Motor Voltage:    115 / 230 V
• Prewired Voltage:     115 V
• Motor Current:     15 / 7.5 A
• Web Description:    PM1300TX-CK Dust Collector; 1.75HP 1PH 115/230V; 2-Micron Canister Kit
• Model Number:    PM1300TX-CK
• Brand:    Powermatic
• Overall Dimensions:    45 x 23 x 30 (shipped); 37 x 29 x 72 (assembled)
• Height:    30 inch
• Width:    23 inch
• Length:    45 inch
• Net Weight:     154 pound

“
