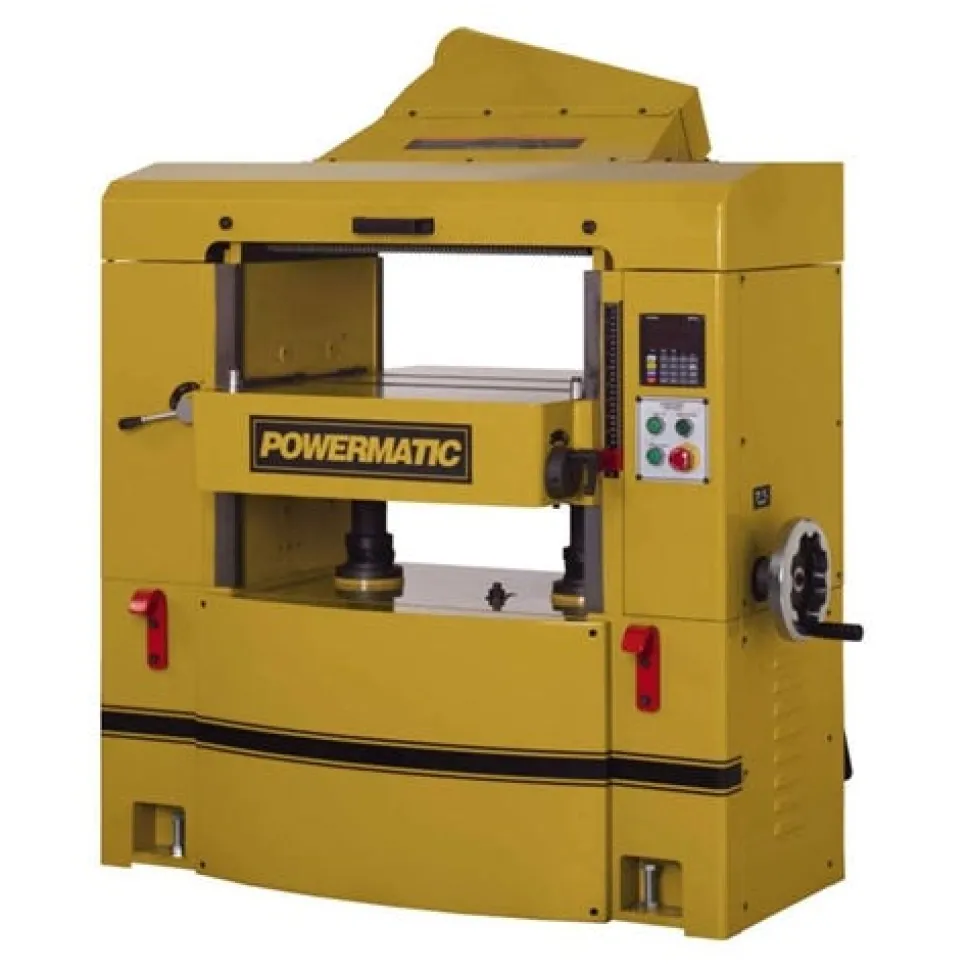

Powermatic WP2510 25″ Planer 15HP 3PH 230/460V w/ Helical Head 1791303

Powermatic

WP2510 25 Planer 15HP 3PH 230/460V w/ Helical Head 1791303

The Powermatic WP2510 Planer has a solid steel helical cutterhead with 174 four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller; setting up table heights is quick and easy.

FEATURES:

• Solid steel helical insert head with 174 four-sided carbide inserts eliminates need for adjustment after changing knives; reduces sound levels.
• Digital readout and simple PC controller make quick and easy table height set ups.
• Segmented serrated infeed roll with segmented chip breakers has 1/4″ independent yield; for planing multiple height stock.
• Massive gear box maintains positive feed by using a large chain drive with automatic chain tensioners; to power infeed and outfeed rollers.
• 3″ diameter infeed and outfeed rollers are supported by four large needle bearings for long life.
• Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0″ to 0.050″ at a touch.
• Frame machined from heavy cast iron and extra wide side panels with gibs; offers rigid bed support and accurate alignment.
• Solid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding.
• 3 speed feed selector allows you to quickly change feed rates.
• Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock.

SPECIFICATIONS:

Style (Type)	Floor
Type of Cutterhead	Helical
Cutterhead Speed (RPM)	5;000
Cutterhead Diameter (In.)	3-3/8
Cuts Per Minute	30;000
Number of Knives	174 Four-Sided Carbide Inserts
Maximum Depth of Cut (In.)	1/4
Maximum Full Width Depth of Cut (In.)	1/8
Maximum Planing Width (In.)	25
Maximum Planing Thickness (In.)	auto 9/manual 10
Minimum Planing Length (In.)	10
Feed Rate (FPM)	20/25/30
Infeed Roller Diameter (In.)	3
Segmented Infeed Roller Diameter (In.)	3
Outfeed Roller Diameter (In.)	3
Bed Rollers Adjustable from Front	0 – 0.05
Table Size (L x W) (In.)	32-3/16 x 26
Table Support	2 Column
Column Diameter (In.)	2-1/2
Digital Readout	Inch / Metric
Dust Collection Minimum CFM Required (CFM)	600
Dust Port Outside Diameter (In.)	5
Motor Power (HP)	15
Motor Phase	3
Motor Voltage (V.)	230/460
Prewired Voltage (V.)	230
Motor Current (Amps)	37/18.5
Recommended Circuit Size (Amps.)	50/25

“
