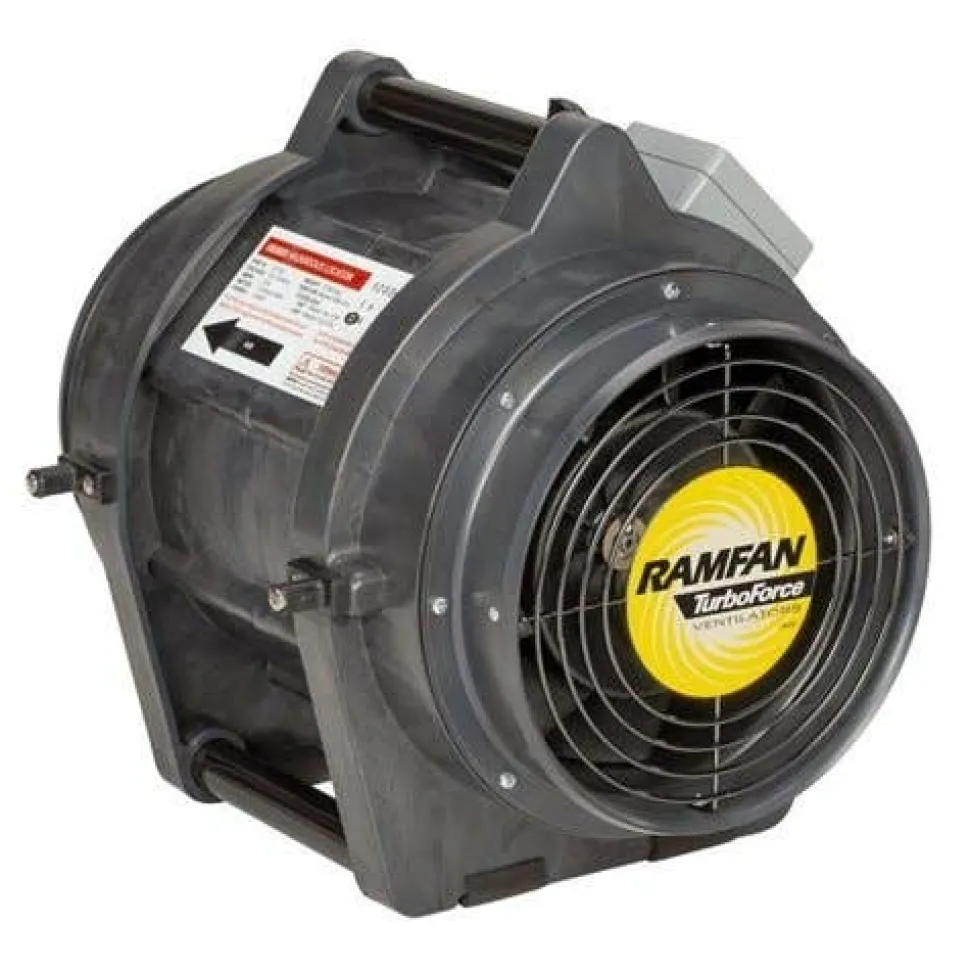

RamFan UB20XX 8″ Blower/Exhaust (Axial Explosion Proof) No Duct 980 CFM EF7002

• Ram Fan
• 8 Blower Only UB20 EF7002
• Confined Space Fan; Axial Explosion Proof; 1/3 HP HP; Duct Dia. 8 In.; Material UV resistant Anti-static Polyethelyne housing; Blower/Fan Speed 3450 rpm; Maximum Flow in Free Air 980 cfm; Voltage 115V; Amps 2; Color Black; Length 44 In.; Width 12 In.; Height 14 In.; Standards CE0539/EX-PROOF CERT on file: ATEX II 2 G Ex d e IIB T6; Ingress Protection: IP55; Includes Fan
• The RamFan UB20XX is an intrinsically safe 8 in. blower. The UL listed motor is totally enclosed for safe use in a variety of adverse atmospheres.
• The UB20XX is very compact and lightweight
• The motor is ultra-quiet at 74dB
• Horsepower: 1/3
• UL rated Class I
• Fan: 8 in. (200) x 9 blade
• Fan RPM: 3590
• Phase: 1o
• Frequency(Hz): 60
• Dimensions: 14 in. H/12 in.W/34 in. L
• Weight: 35lbs-15ft / 45lbs-25ft
• Running Amps: 2
• Starting Amps: 8.5
• Noise Level: 74dB
• Horsepower: 1/3
• Air Flow: 980 CFM (free flow); 789 CFM (15′ with 1 90 degree turn)

“
