RIDGID 1224 Threading Machine 1/2″-4″ 26092

Ridgid

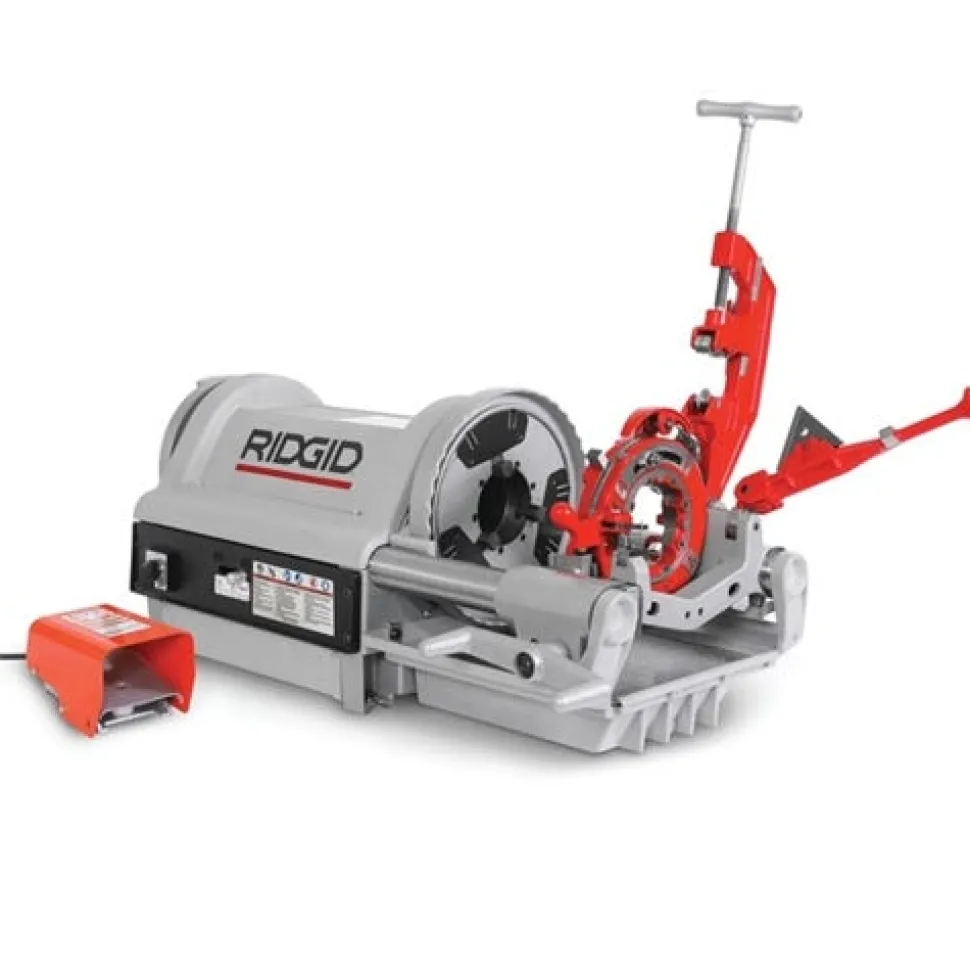

Model 1224 Threading Machine 26092

The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.

FEATURES:

• An induction motor helps minimize noise.
• A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.
• 1/4-2″ Universal Die Head, 2 1/2″-4″ receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.
• Constant and proper lubrication of dies and workpiece with through-head oiling.

SPECIFICATIONS:

Nominal Pipe Capacity	1/4″-2″ (6mm-100mm) @ 36 RPM, 2-1/2″-4″ (65mm-100mm) @ 12 RPM, 4″-6″ (100mm-150mm) with 161 Geared Threader.
Bolt Capacity	1/4″-2″ (6mm-50mm).
Motor Control	Reverse/off/forward, heavy-duty rotary-type and integral foot switch.
Gear Box	Two-speed gear box with a 3:1 ratio.
Chuck	Hammer-type with replaceable rocker-action jaw inserts.
Rear Centering Device	Cam action.
Oiling Pump	Self-priming, gerotor-type, automatic-reversing, constant-flow.
Oiling	Through die head
