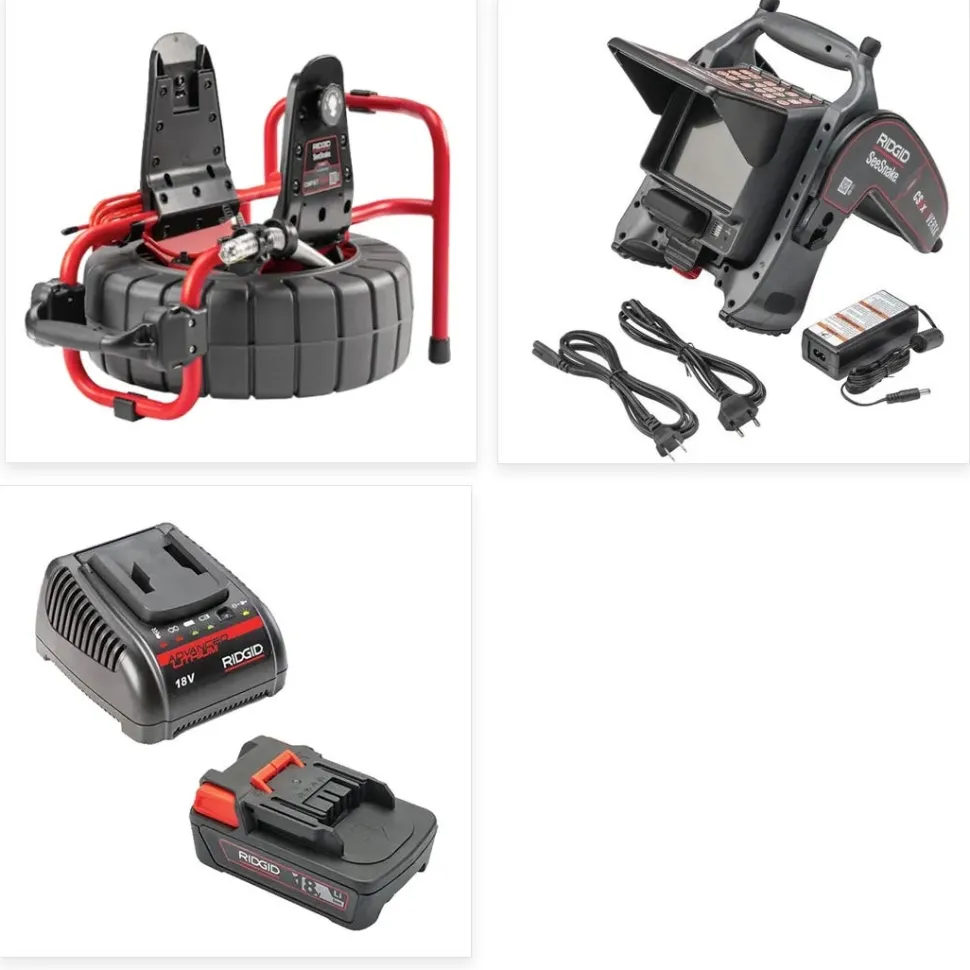

RIDGID C40 SeeSnake CS6x VERSA Monitor Compact Self-Leveling 131′ Flexible Cable Battery Kit 63828 KIT-RD63828

Ridgid

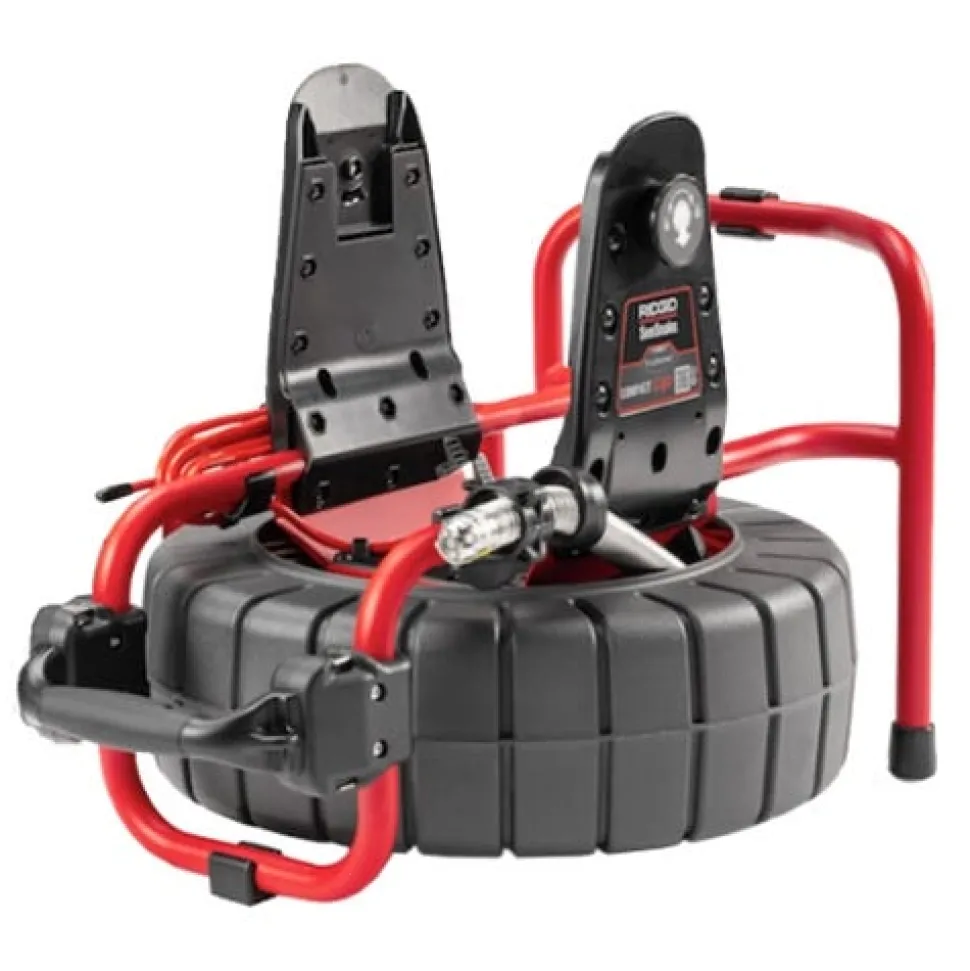

SeeSnake Compact C40 Camera (Reel Only) 63668

FEATURES:

• 25 mm self-leveling camera head provides a crisp image that is always upright
• Equipped with high power FleXmitter 512 Hz sonde which is compatible with all RIDGID locators
• Download the free HQx Live app to view and record inspection jobs on your phone or tablet
• Use with the SeeSnake CS6x Versa to create the optimal viewing angle and for fast; efficient job setup

COMPACT SERIES QUICK COMPARISON GUIDE:

SPECIFICATIONS:

“

Ridgid

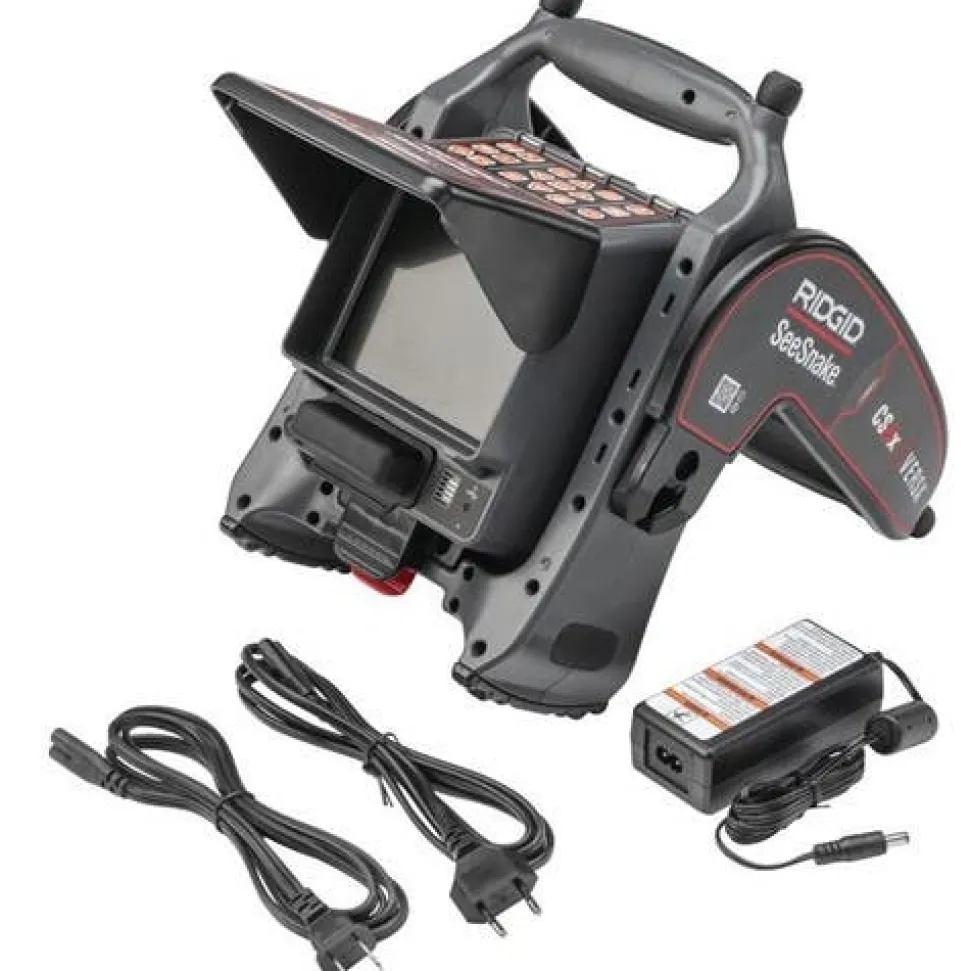

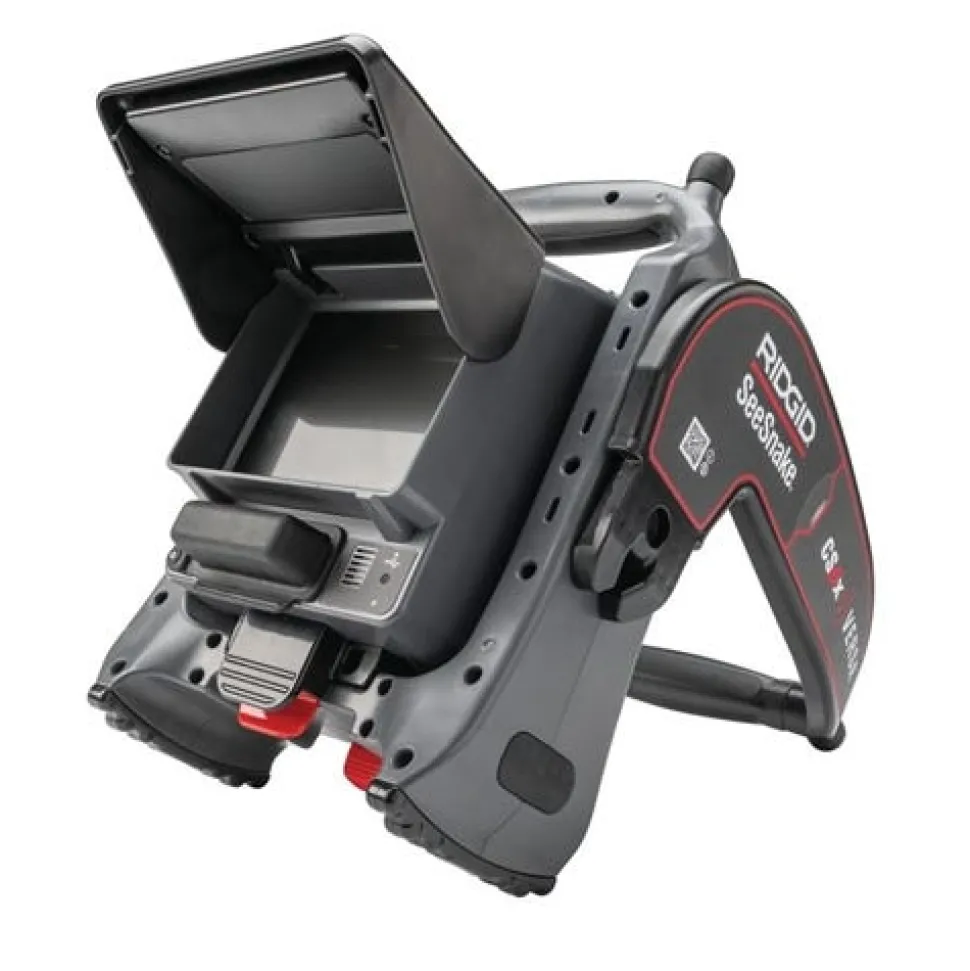

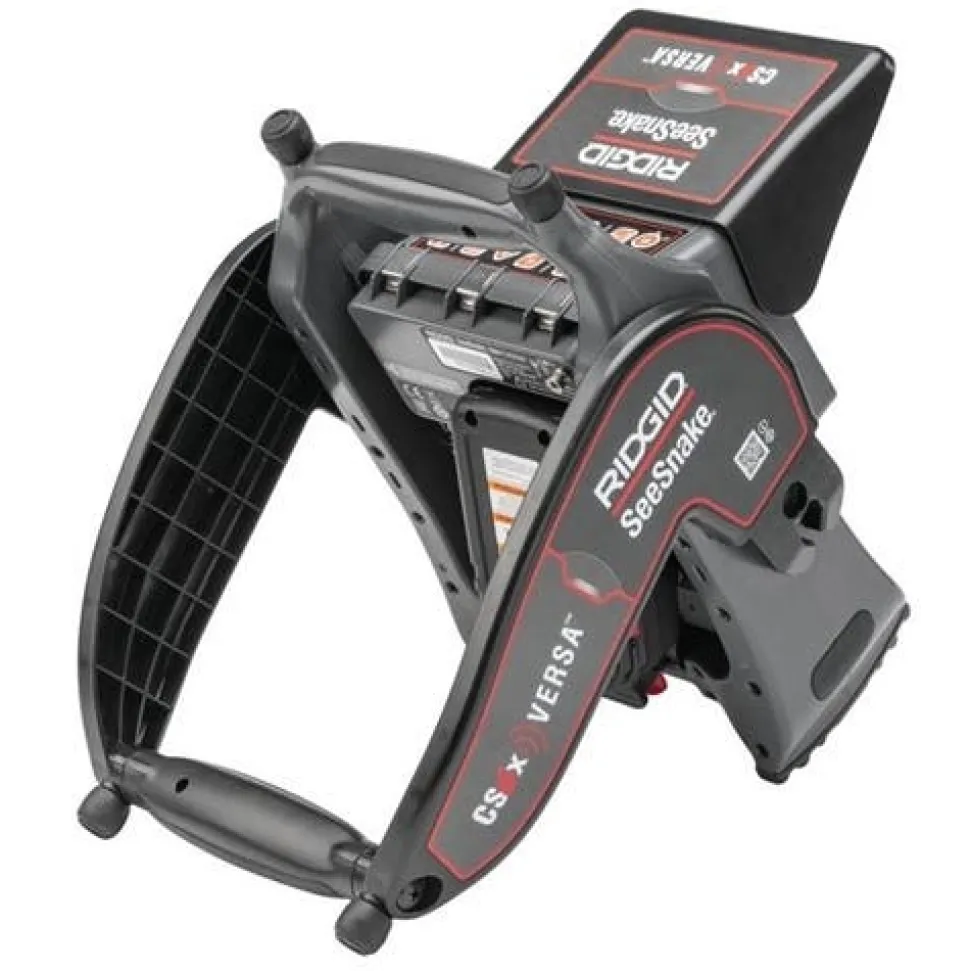

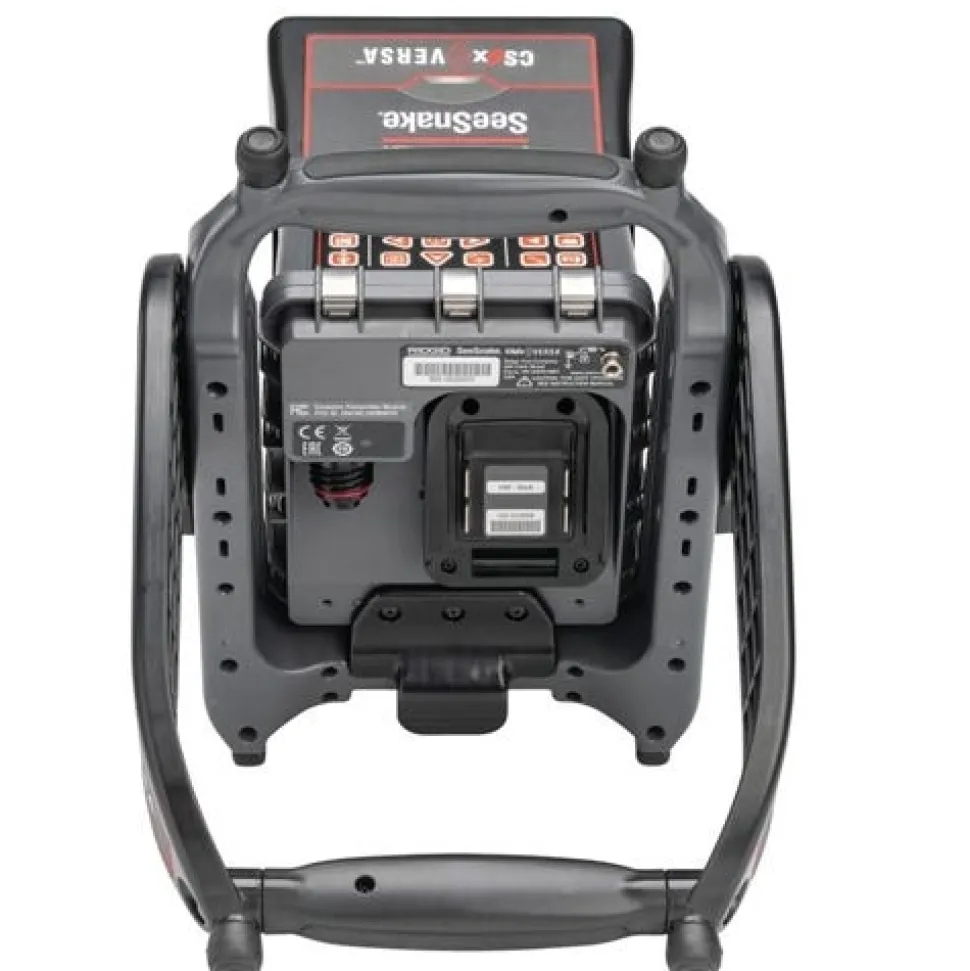

CS6x VERSA Digital Recording Monitor w/ Wi-Fi 64943

Improving jobsite ergonomics; the CS6x Versa has high and low monitor mounting positions and a unique pivoting frame that lets users tilt the monitor to the desired angle for optimal viewing efficiency. This design allows the sunshade to remain open in all usage situations for maximum glare reduction.

FEATURES:

• The CS6x Versa has a 5.7” daylight viewable screen; direct USB recording; full TruSense compatibility; and Wi-Fi connectivity for remote viewing and recording on a phone or tablet.
• The frame docks to the Compact 2/C40/M40 and can be used mounted or unmounted.
• Pivoting frame with high and low mounting positions allow flexible placement and optimal viewing
• Docks to the Compact 2/C40/M40 camera reels for efficient transport; storage; and operation
• Operates on one 18 V battery or with the included AC power adapter
• Improved ingress protection against dust and moisture

SPECIFICATIONS:

Weight without Battery	4.9 lb (2.2 kg)
Length	13.1 (332 mm)
Width	9.2″ (233 mm)
Height	12.2″ (309 mm)
Display	Color LCD; 5.7″ (145 mm)
Video	MPEG4 (H.264) 30 FPS
Autolog	MPEG4 (H.264) Space saving frame rate
PhotoTalk	MPEG4 (H.264) Single image with audio
Photo	JPG
Audio	Integrated microphone and speaker
Ingress Protection	IP×5
Transfer Method	USB drive
Power Source	18 V Li-ion rechargeable batteryor AC adapter
Operating Temperature	14°F – 122°F (-10°C – 50°C)

“
