RIDGID HC300 3″ Hole Cutting Tool 115V 50/60 Hz 76777

Ridgid

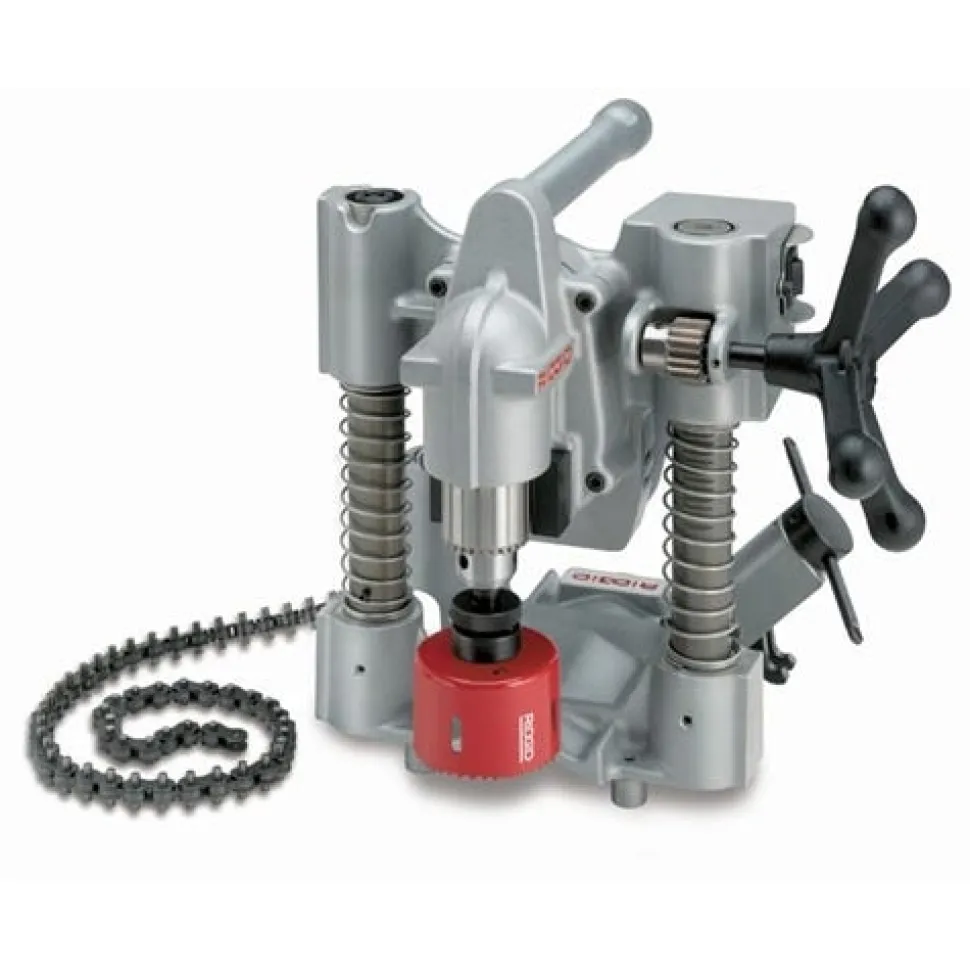

HC300 Hole Cutting Tool

The RIDGID Model HC300 Hole Cutting Tool is designed to cut holes up to 3 (76 mm) diameter into steel pipe. The multiple hole size allows the use of fittings such as Mechanical T; Vic-O-Let; Weld-O-Let and others for branching unpressurized pipelines. An integral motor and gear reduction optimizes the performance and saw life. A single-feed handle and ON/OFF switch allows for easy operation. The Model HC300 offers great features that translate into unparalleled field and shop performance.

FEATURES:

• Quick Connecting Two-piece Design – This unique design allows for easy mounting; transport and set up. This is particularly useful when working off a ladder or overhead.
• Single-Hand Chain Latching – The Model HC300 features a patented spring-loaded chain that saves time and significantly aids set up and operation.
• Ergonomic Design – With all controls at the operators fingertips; the tool has been designed for maximum productivity.
• High Speed – With a powerful 1.2 HP; 11 Amp motor; the Model HC300 delivers 360 RPM to quickly bore holes while optimizing hole saw life.
• Horizontal and Vertical Flats – Ensures perpendicular cutting.

SPECIFICATIONS:

Hole Cutting Capacity	Up to 3″ (76 mm)
Pipe Diameter Mounting Range	1-1/2″ (38 mm) to 8″ (200 mm)
Chuck Size	1/16″(1.6 mm) to 1/2″ (13 mm)
Motor	Universal; 115V/230V; 60Hz; 2 HP. Approved by CSA to CSA and UL standards
Output Speed	360 RPM (no load)
Arbor Capacity	Up to 7/16″
Weight	31 lb
Height	12.8″
Length	11.9″
Width	13.2″

*Approved by CSA to CSA and UL standards; 115V/230V*

“
