RIDGID M40 SeeSnake CS6x VERSA Monitor Compact Self-Leveling 131′ Stiff Cable Battery Kit 63818

RIDGID

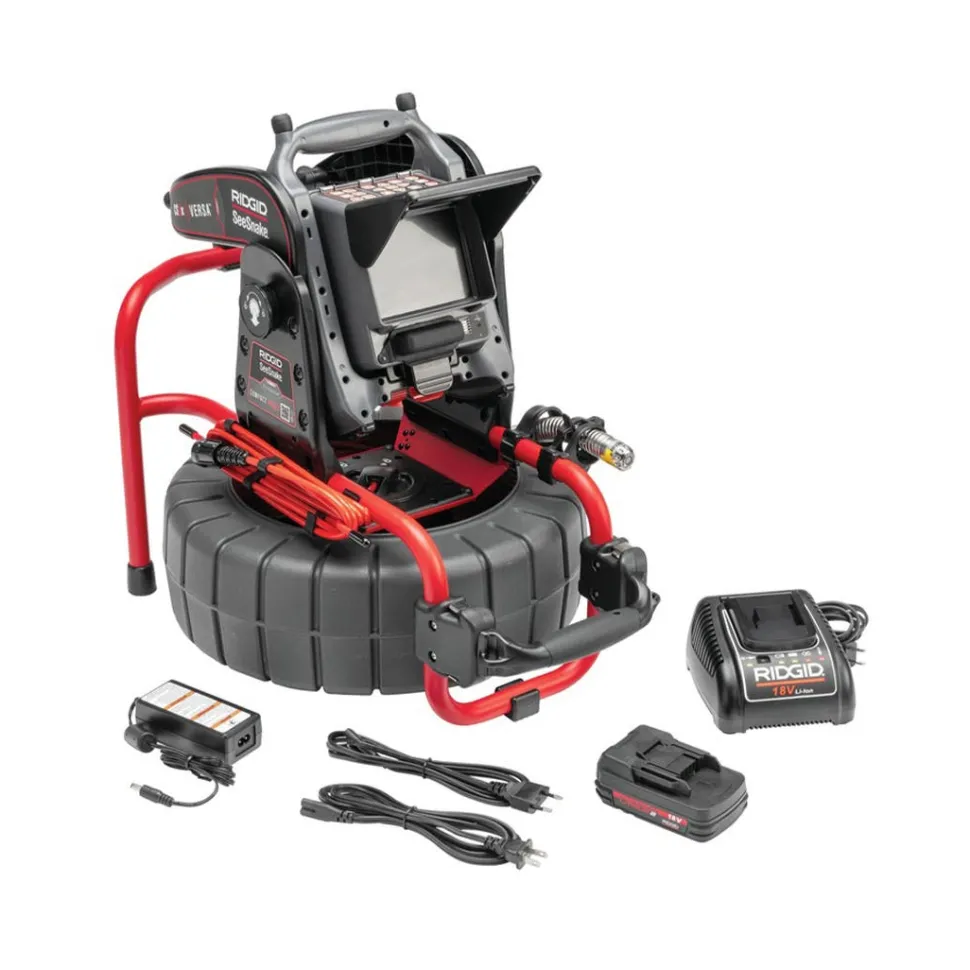

Compact M40 Kit w/ SeeSnake Camera (63673), CS6x Monitor (64943), 18V Battery & Charger Kit (66003)

Improving jobsite ergonomics, the CS6x Versa has high and low monitor mounting positions and a unique pivoting frame that lets users tilt the monitor to the desired angle for optimal viewing efficiency. This design allows the sunshade to remain open in all usage situations for maximum glare reduction.

FEATURES:

• The CS6x Versa has a 5.7” daylight viewable screen, direct USB recording, full TruSense compatibility, and Wi-Fi connectivity for remote viewing and recording on a phone or tablet.
• The frame docks to the Compact 2/C40/M40 and can be used mounted or unmounted.
• Pivoting frame with high and low mounting positions allow flexible placement and optimal viewing.
• Docks to the Compact 2/C40/M40 camera reels for efficient transport, storage, and operation.
• Improved ingress protection against dust and moisture.
• 25 mm self-leveling camera head provides a crisp image that is always upright.
• High dynamic range image sensor provides bright, saturated images with improved detail, even in difficult lighting conditions.
• Equipped with high power FleXmitter 512 Hz sonde which is compatible with all RIDGID locators.
• Use with the SeeSnake CS6x Versa to create the optimal viewing angle and for fast, efficient job setup.
• Works with ProPress & SeeSnake Monitor Units.

SPECIFICATIONS:

Display	Color LCD, 5.7 (145 mm)
Video	MPEG4 (H.264) 30 FPS
Autolog	MPEG4 (H.264) Space saving frame rate
PhotoTalk	MPEG4 (H.264) Single image with audio
Photo	JPG
Audio	Integrated microphone and speaker
Ingress Protection	IP×5
Transfer Method	USB drive
Power Source	18 V Li-ion rechargeable battery or AC adapter
Operating Temperature	14°F – 122°F (-10°C – 50°C)
Storage Temperature	14°F to 158°F (-10°C to 70°C)
Push Cable Length	131′ (40 m)
Push Cable Diameter	0.26″ (6 mm)
Push Cable Core	0.14″ (3.5 mm)
Fiberglass Push Cable Bend Minimum Radius	2.5″ (63.5 mm)
Camera Type	1″ (25 mm)
Frequency	512Hz

INCLUDES:

• (1) CS6x VERSA Digital Recording Monitor with Wi-Fi 64943
• (1) SeeSnake Compact M40 Camera (Reel Only) 63673
• (1) 18V Li-Ion Charger 64383
• (1) 2.5 Ah 18V Battery 56513
