Ridgid
SeekTech Inductive Signal Clamp 72963

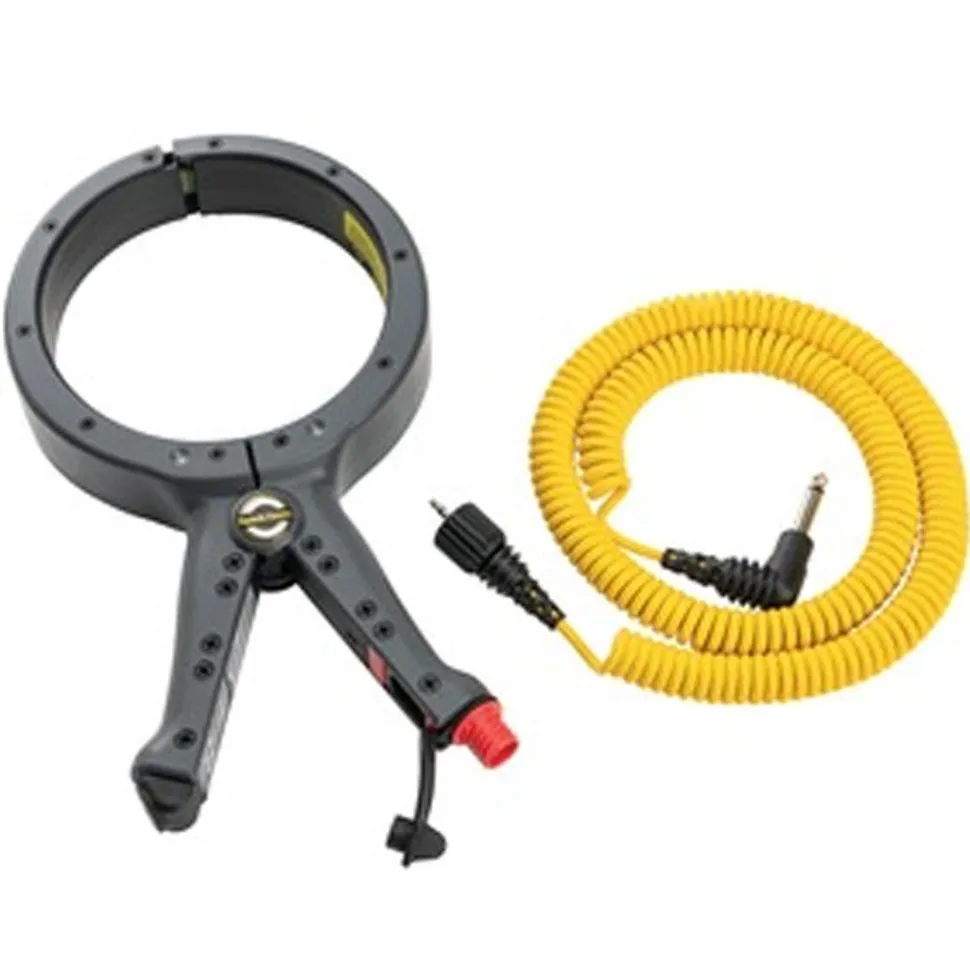

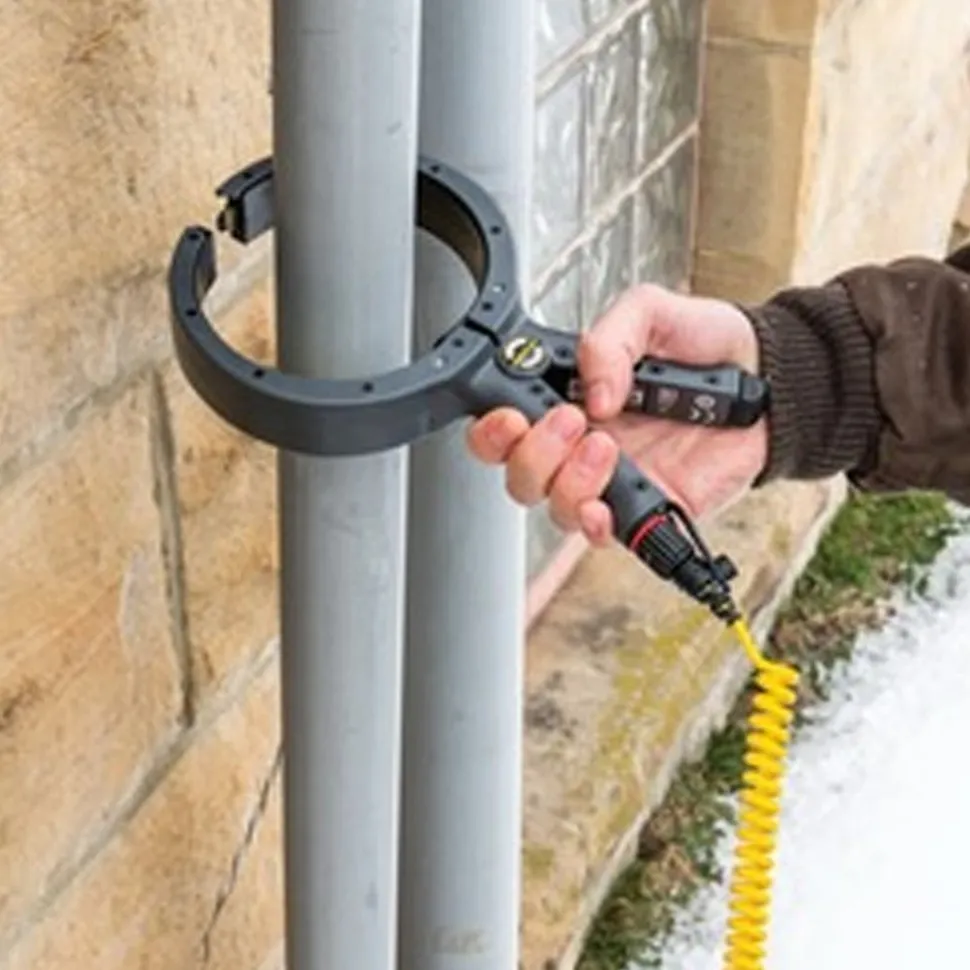

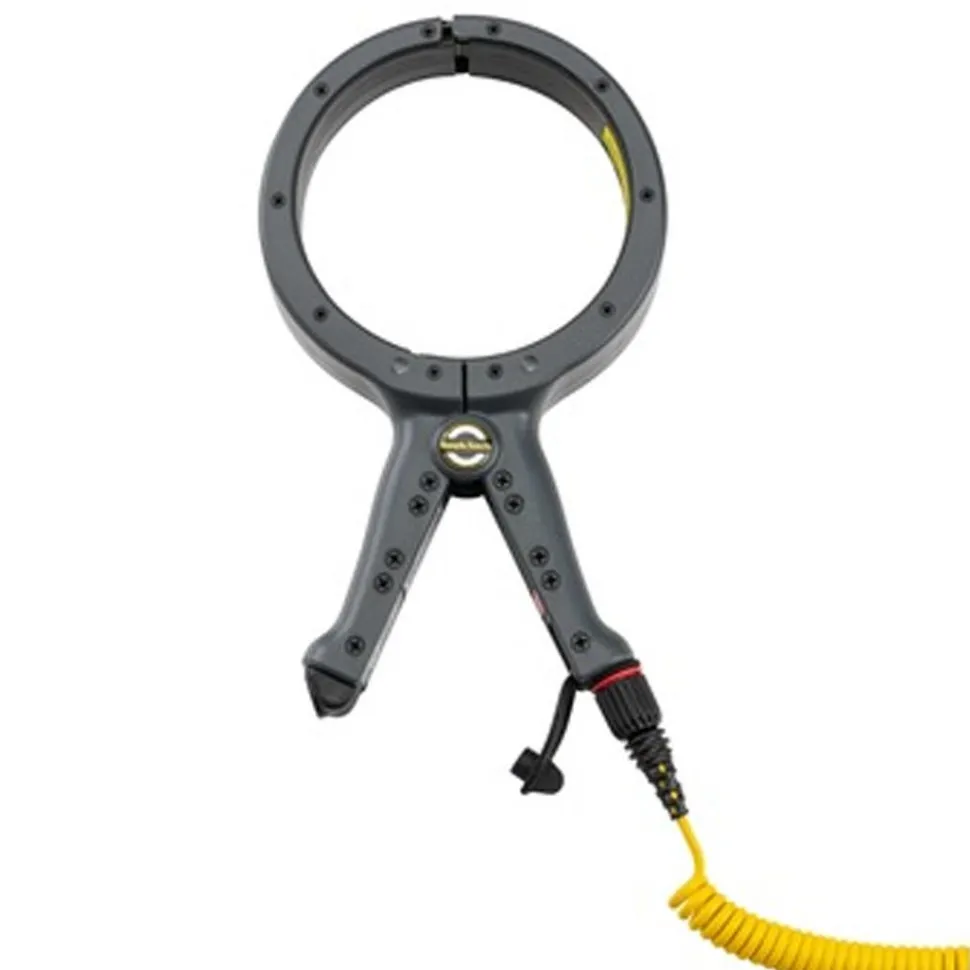

The RIDGID SeekTech Inductive Clamp allows users to apply a signal to a cable or pipe when direct connection is not possible. Compatible with all RIDGID transmitters.
FEATURES:
- Induces a signal onto a cable or pipe less than 119 mm (4.7 in) in diameter.
- Compatible with all RIDGID SeekTech line transmitters, including the ST-305, ST-305R, ST-33Q+, and ST-510.
- Additionally compatible with any comparable line transmitter which has a 10 watt or less maximum output power if frequency is under 45 kHz, and a 1 watt maximum if above 45 kHz.
- Can be used with frequencies from 8 kHz to 262 kHz.
- Removable and easy to store coiled cord.
- Ergonomic handle for easy opening and closing.
- Convenient pull tab for opening and closing in tight spaces.
SPECIFICATIONS:
Dimensions
Inside Diameter
Cord Length
Power Source
Â
Â
Frequencies
10.4″Â x 5.8″ x 1.5″
4.7″
2.5 ft
Line transmitter with 10 watt or less max output power with frequency
45 kHz
Â
Â
8 kHz to 262 kHz
OPT SKU | RD72963 |
---|---|
MPN | 72963 |
UPC/GTIN | 095691729637 |
Product Type | Utility Line Locators & Metal Detectors |
Google Category | Business & Industrial > Law Enforcement > Metal Detectors |
Power Method | Cordless |
Shipping Weight | 5.00 |
