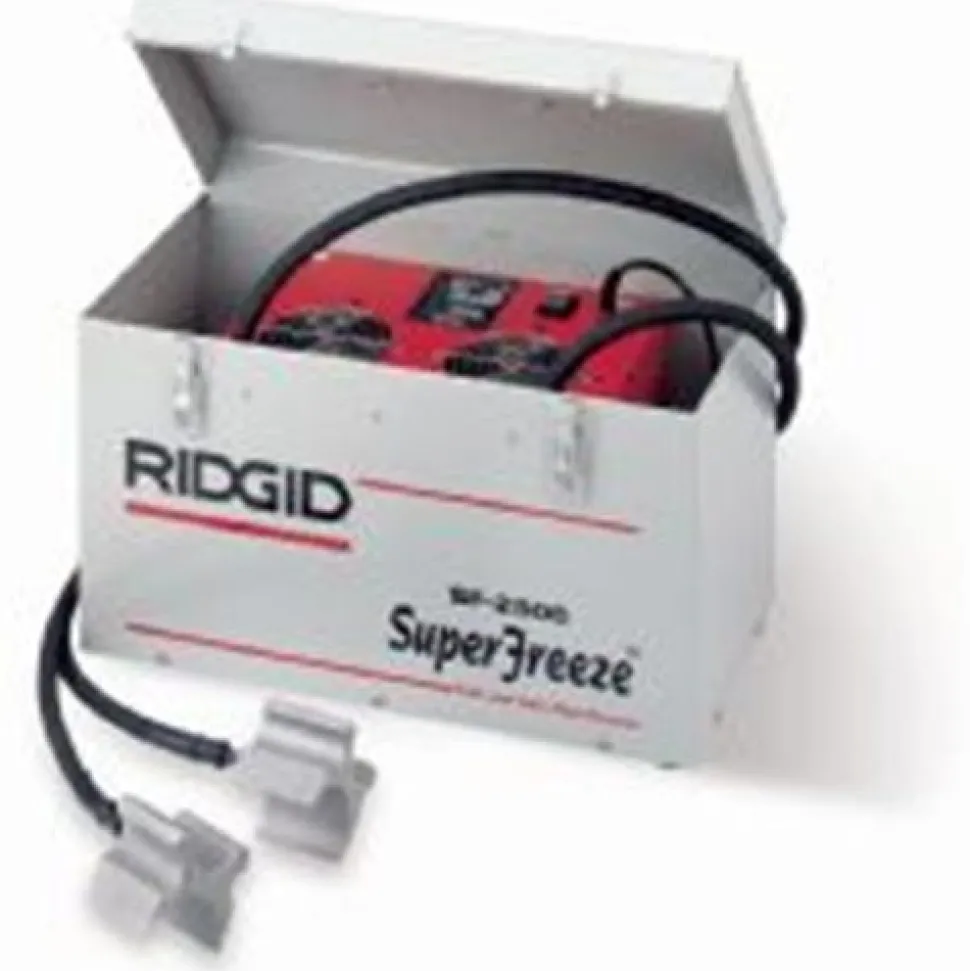

RIDGID SF-2500 SuperFreeze Pipe Freezer 68967

Ridgid

Model SF-2500 SuperFreeze

The SuperFreeze Pipe Freezer is an easy-to-use pipe-freezing unit that allows the contractor to keep water systems operating while making repairs. The RIDGID Model SF-2500 is a mini-refrigeration unit that circulates self-contained refrigerant to its aluminum freeze heads. This forms an ice plug in as little as 6 minutes. Once the pipe is plugged; repairs can be made while the ice plug is maintained by the unit. Includes a bottle of specially formulated freeze gel to speed freezing. Apply the gel to freeze heads before placing on pipe.

SPECIFICATIONS:

Capacity

SF- 2500; 115V	Copper tube: 1/2 – 2 1/2 inch (15 – 65 mm). Steel pipe: 1/2 – 1 inch (15 – 25 mm).
SF-2500; 230V	Copper tube: 1/2 – 2 1/2 inch (15-65mm) Steel pipe: 1/2 – 2 inch (15-50mm)

*The freeze head cavities on these units are specifically sized for copper tube sizes. They may be used on steel pipe sizes with adherence to the instructions.*

Other Specifications

Compressor	Rotary; 230V; 50 Hz; 2.4 amp; 505 Watts.
Refrigerant	R-507.
Hose Length	2;6 m ( 5.2 m span).
Dimensions	22 7/8 (58 cm) x 11″ (28 cm) x 14 1/2″ (37 cm) (L x W x H).

“
