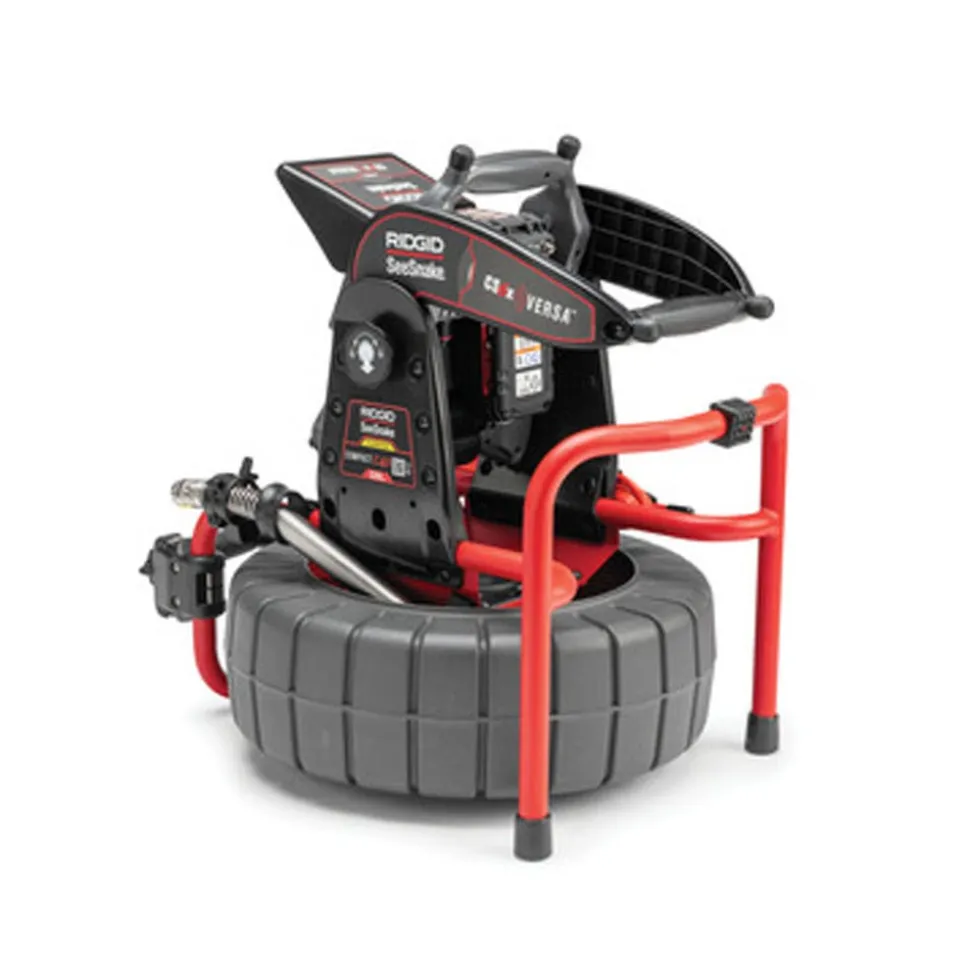

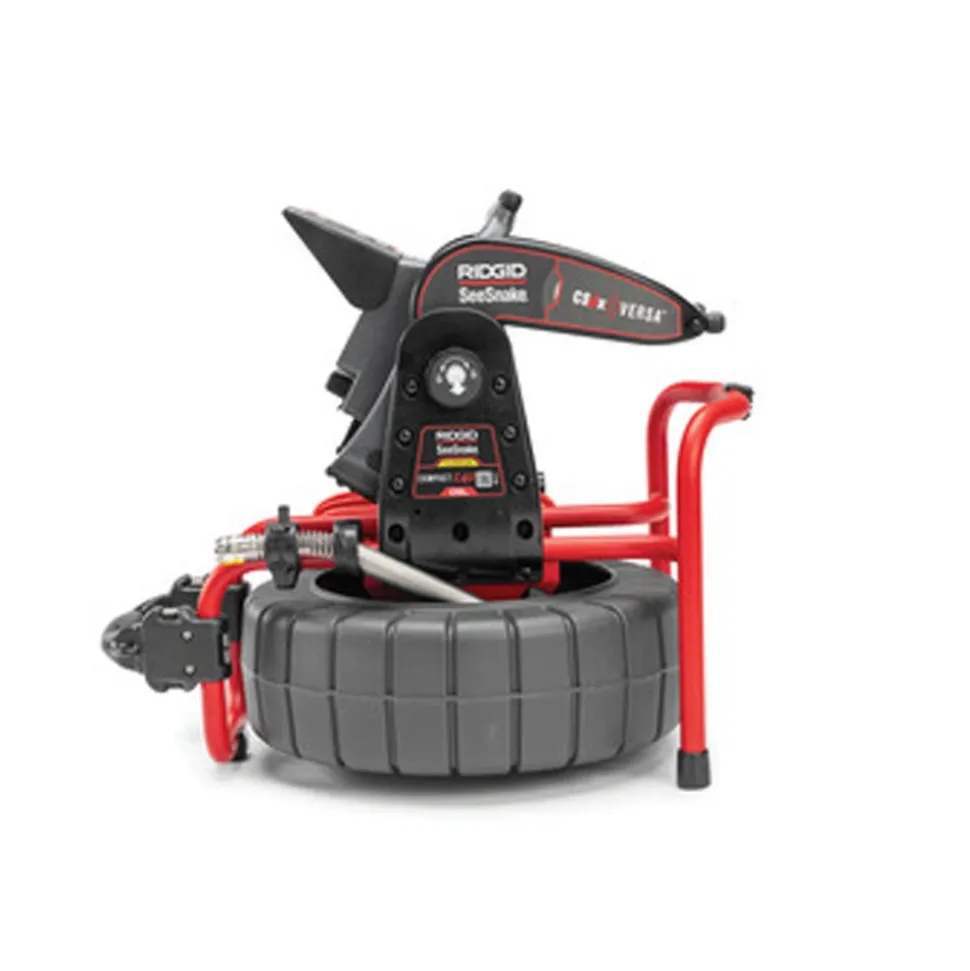

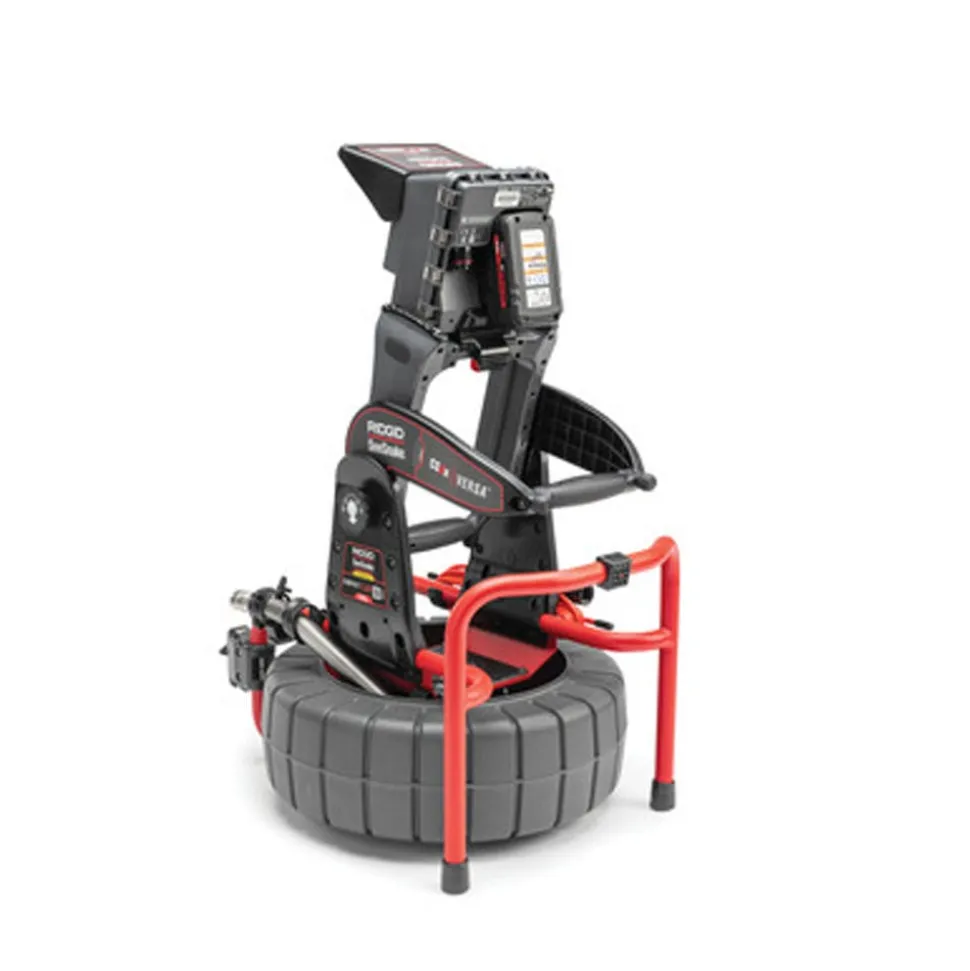

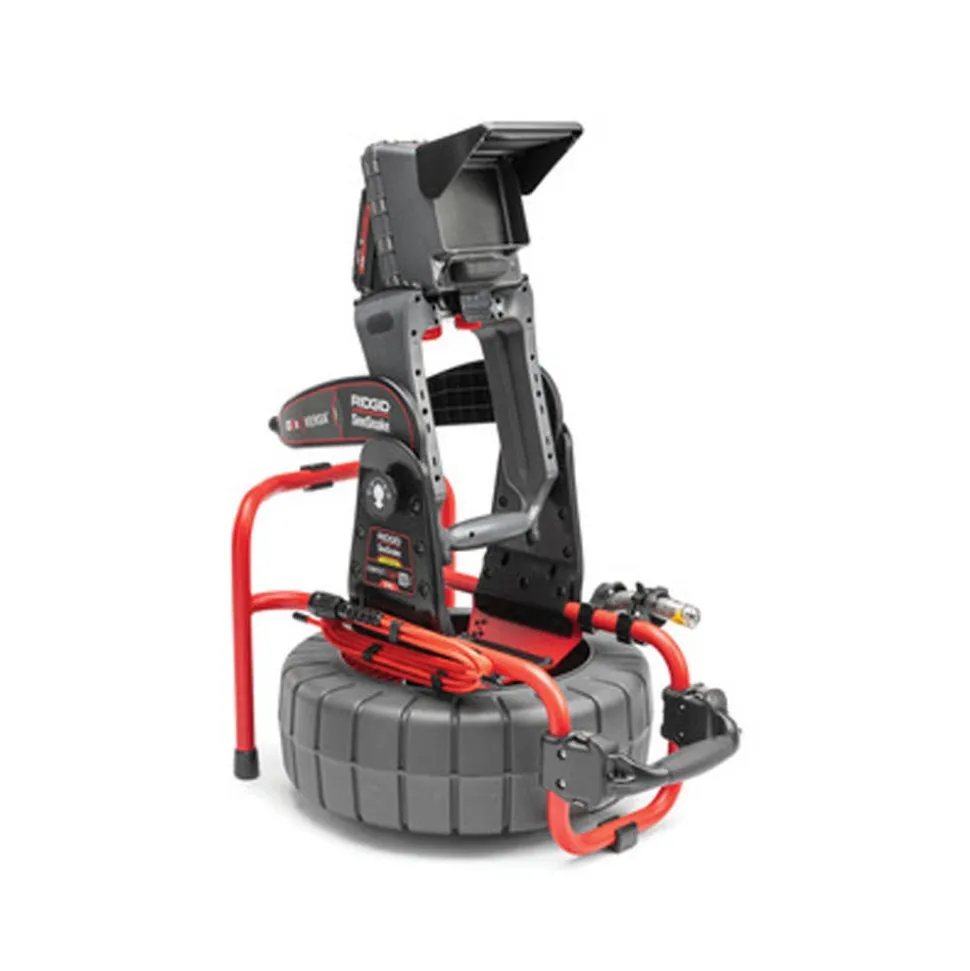

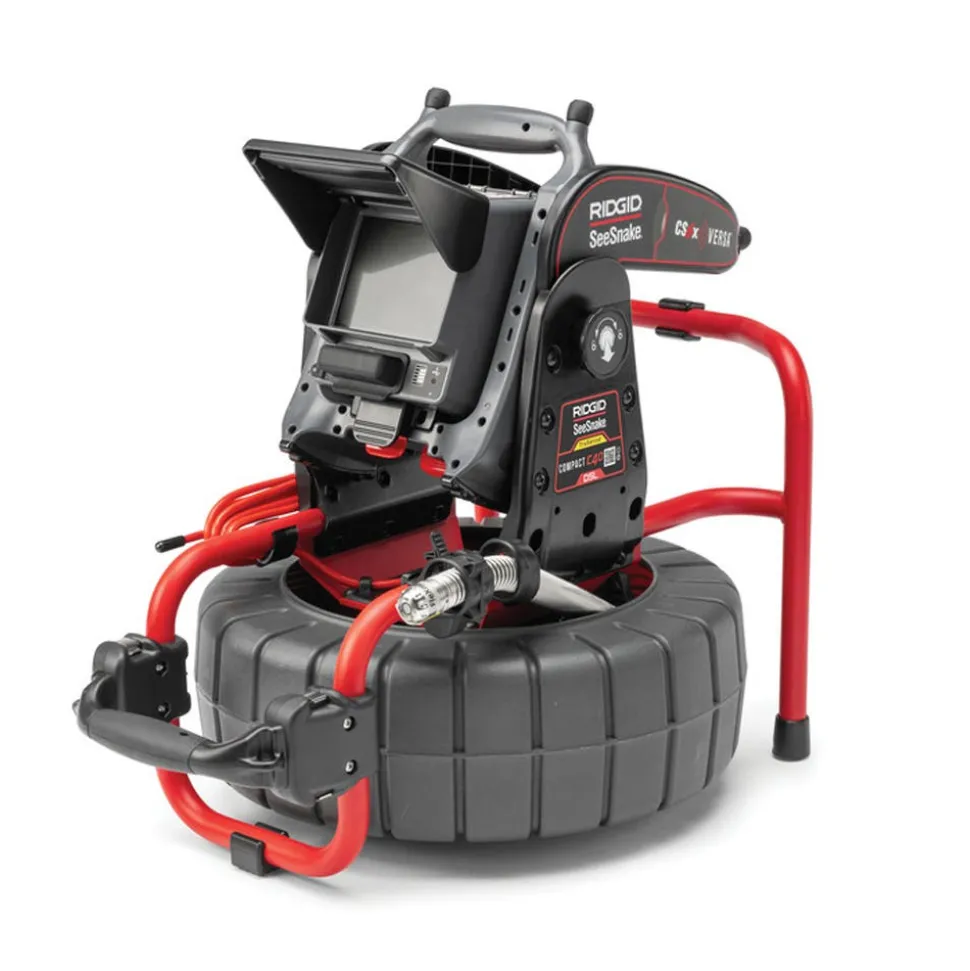

RIDGID Tools SeeSnake Compact C40 DSL w/CS6x Versa Monitor 70043
$132.89
Additional Details
The Compact C40 DSL combines the popular compact form factor with the latest TruSense-enabled feature Digital-Self Leveling. The Compact C40 DSL offers 131′ (40 m) of mid-flex push cable which makes it ideal for small/restricted branch lines with tight turns and short runs in main laterals from 1.5″ to 6″ (40 to 150 mm). When used with the CS6x Versa, the innovative digital self-leveling technology produces the most stable in-pipe view, without mechanical rotation. No moving parts in the camera head improves longevity and durability, which maximizes uptime.
Features
- Digital Self-Leveling – Ultra-smooth digital self-leveling keeps image upright with no moving mechanical parts
- Maximum Uptime – No moving parts provides improved longevity and durability and lower service calls for the camera head
- High Dynamic Range – Offers superior clarity and detail of the in-pipe image displayed on a TruSense enabled monitor
- TiltSense™ Inclinometer – Provides the degree of tilt of the camera head while in-pipe and displays it on a TruSense enabled monitor
- Digital Pan & Zoom – Adds the ability to focus on a single point of interest
- Quick-release docking system – Fast & efficient job setup with the SeeSnake® CS6x Versa monitor
- Traceability – A built-in 512Hz Powerful FleXmitter® sonde preserves the flexibility to clear tight runs
Manufacturer Specifications
| Line Capacity | 1.5″ to 6″ (38mm to 152mm) |
|---|---|
| Push Cable Length | 131′ (40m) |
| Push Cable Diameter | 0.26″ (6.7 mm) with 3 mm [0.12 in] Fiberglass core |
| Push Cable Core | Polypropylene |
| Fiberglass Push Cable Minimum Bend Radius | 2.5″ (63.5 mm) |
| Camera width | 1″ (25 mm) |
| Camera Type | TruSense with Digital Self-Leveling |
| FleXmiter (Sonde) Frequency | 512Hz |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Storage Temperature | 14°F to 158°F (-10°C to 70°C) |
| Ingress Protection (without monitor) | IPx5 |
| Light Source | High-Intensity LED |
Specifications
| OPT SKU | RD70043 |
|---|---|
| MPN | 70043 |
| UPC/GTIN | 095691700438 |
| Product Type | Inspection Cameras |
| Shipping Weight | 22.00 |
