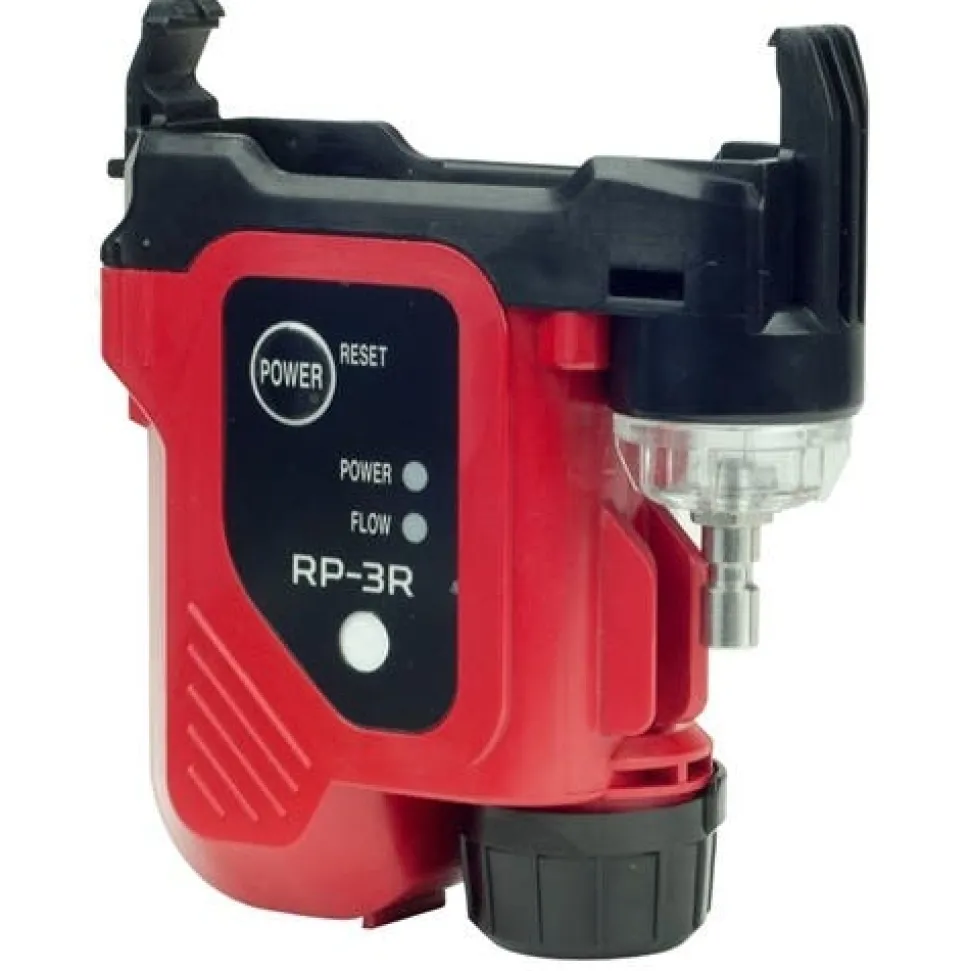

RKI Instruments RP-3R Pump w/ 10′ hose; 10 Probe & Tapered Red Nozzle For GX-3R 81-1198

RKI Instruments

RP-3R Pump w/ 10′ hose; 10 Probe & Tapered Red Nozzle For GX-3R 81-1198

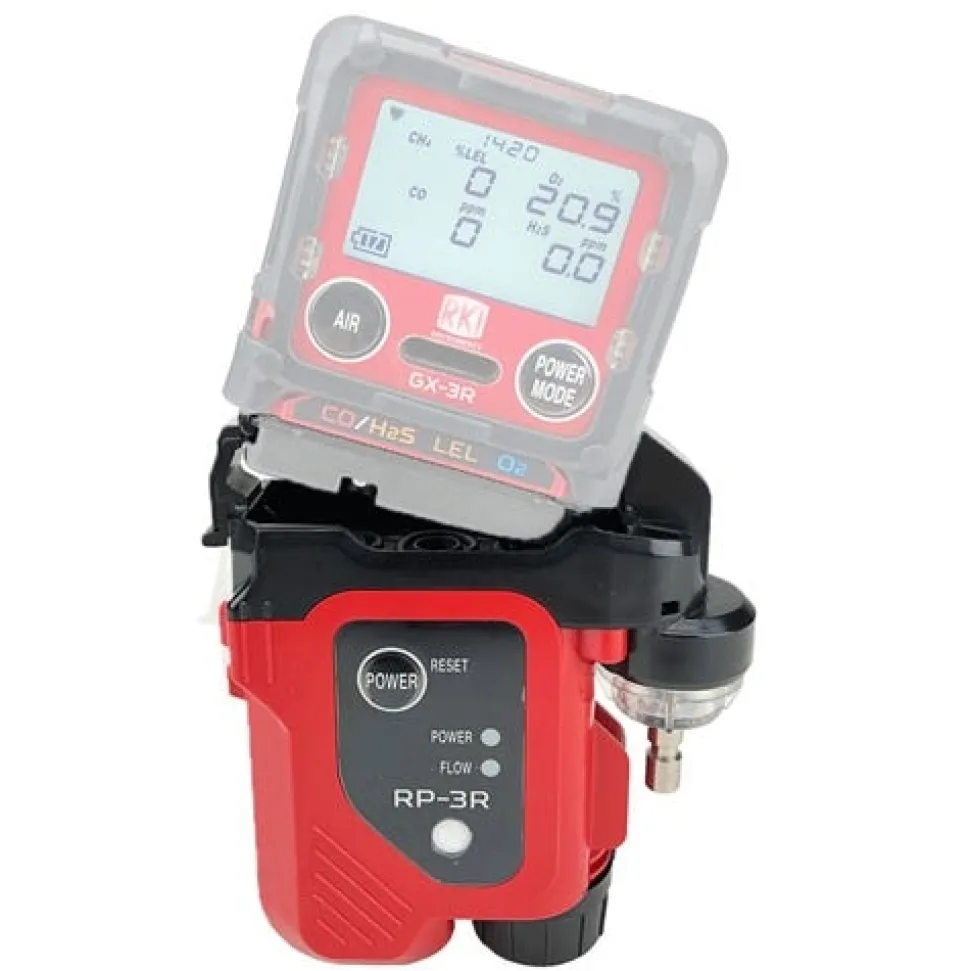

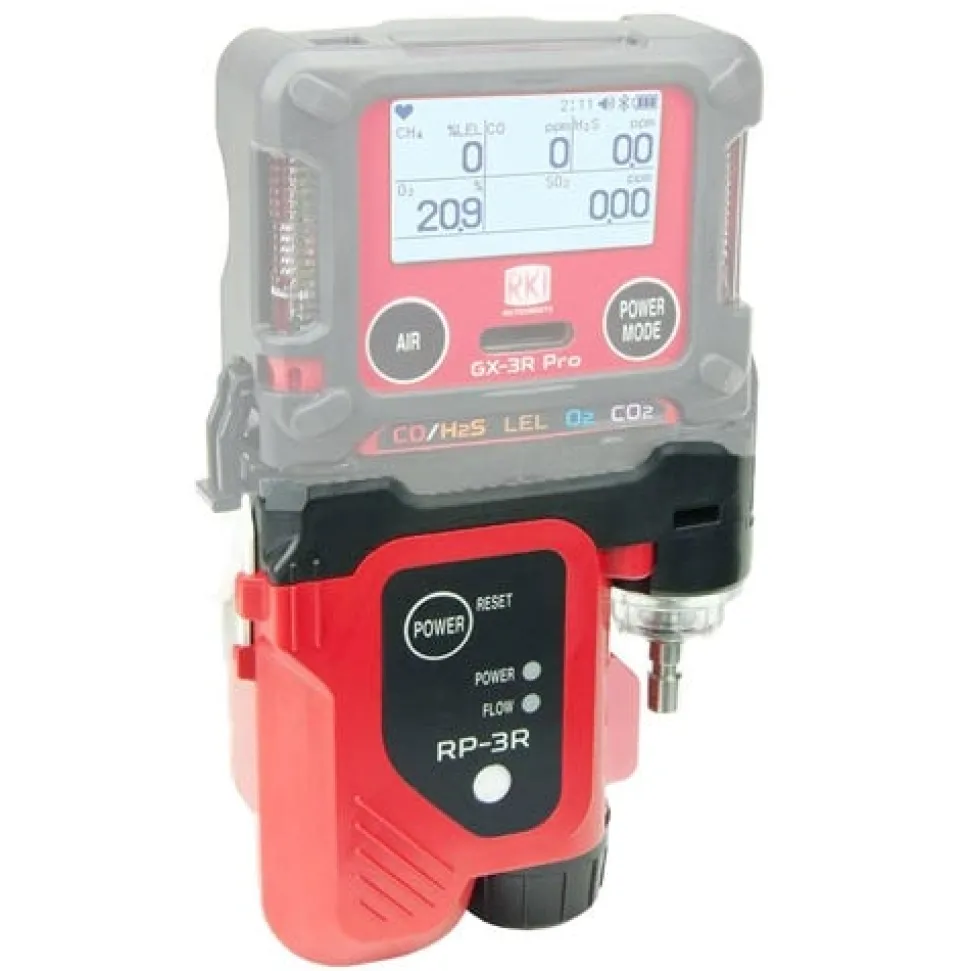

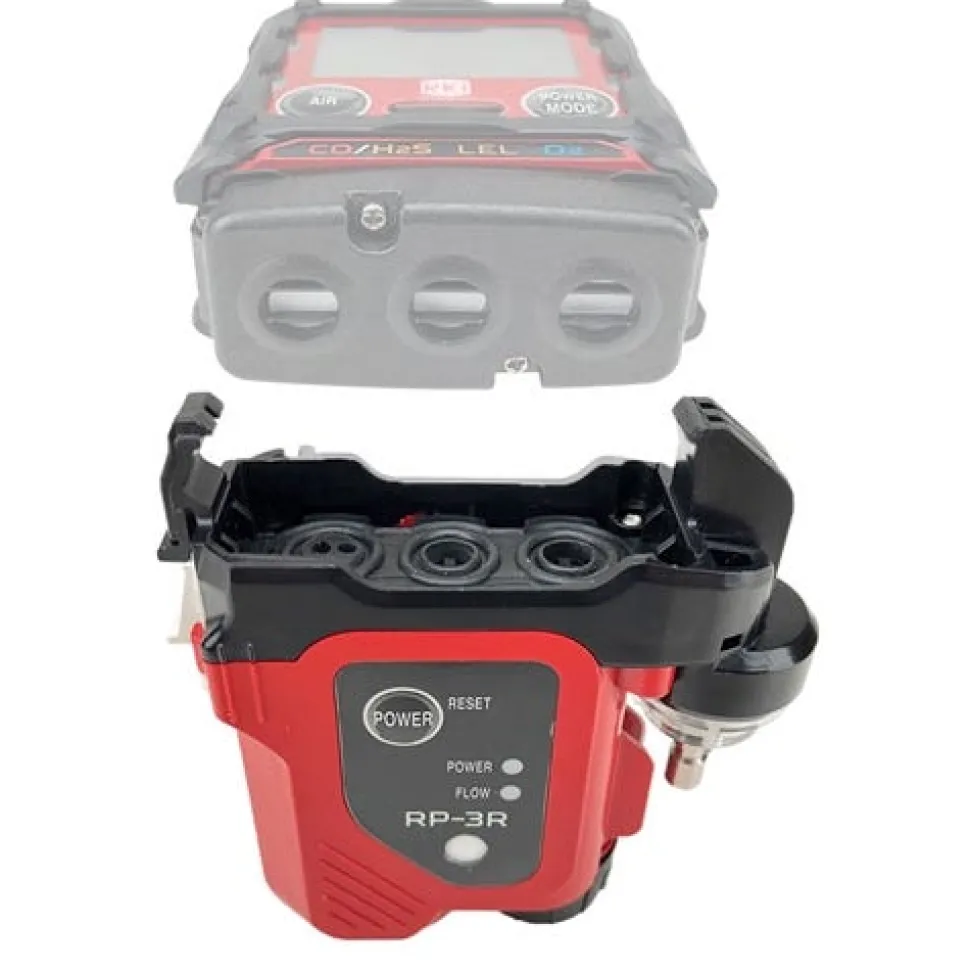

The RP-3R are compact; battery operated; motorized sample drawing pumps which attach to either the GX-3R or the GX-3R Pro to change them from diffusion operation to sample drawing operation. The pump quickly and firmly snaps onto the GX-3R gas monitor and is easily removed when sampling is complete. No tools are required.

FEATURES:

• Attaches to the GX-3R in seconds.
• Compact and lightweight.
• 10 hours of operation in normal mode (higher flow mode).
• 16 hours of operation in lower-flow mode (ECO mode).
• Audible and visual alarms for low flow and low battery conditions.
• Pilot light to confirm operation.
• Quick disconnect fitting for hose connection.
• Rugged and proven RKI reliability.

SPECIFICATIONS:

Flow Rate	Higher flow mode: 0.5 l/m Lower flow mode (ECO mode): 0.35 l/m
Alarm Display	Low flow alarm: Flow blinks YELLOW Low battery alarm: Power LED blinks GREEN
Power Supply	1 AA alkaline battery
Continuous Operation	Higher flow mode: 10 hours Lower flow mode (ECO mode): 16 hours
Operating temperature	-4° F to + 122° F (no sudden change)
Operating humidity range	95% RH or less (without condensation)
External Dimensions	3.23? (W) x 3.78? (H) x 1.14? (D) (body only)
Explosion Proof	Intrinsically safe construction; ATEX/IECEx
Optional Accessories	10′ – 100′ hose; 10? probe with dust filter

INCLUDES:

• 4? tapered red rubber nozzle
• AA alkaline battery
• hydrophobic filters

“
