- (2) Cast Iron Extension Wings
- (1) Miter Gauge
- (1) Dust Collection Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10” Blade
- (1) Standard Lockdown Insert
- (1) Standard Brake Cartridge
- (1) Owner’s Manual
- (2) Hardware Packs
- (1) 3mm Hex Key
- (1) 5mm Hex Key
- (1) 8mm Hex Key
- (1) Blade Spacing Adjustment Gauge
- 36″ Industrial T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection.
- Durable craftmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments.

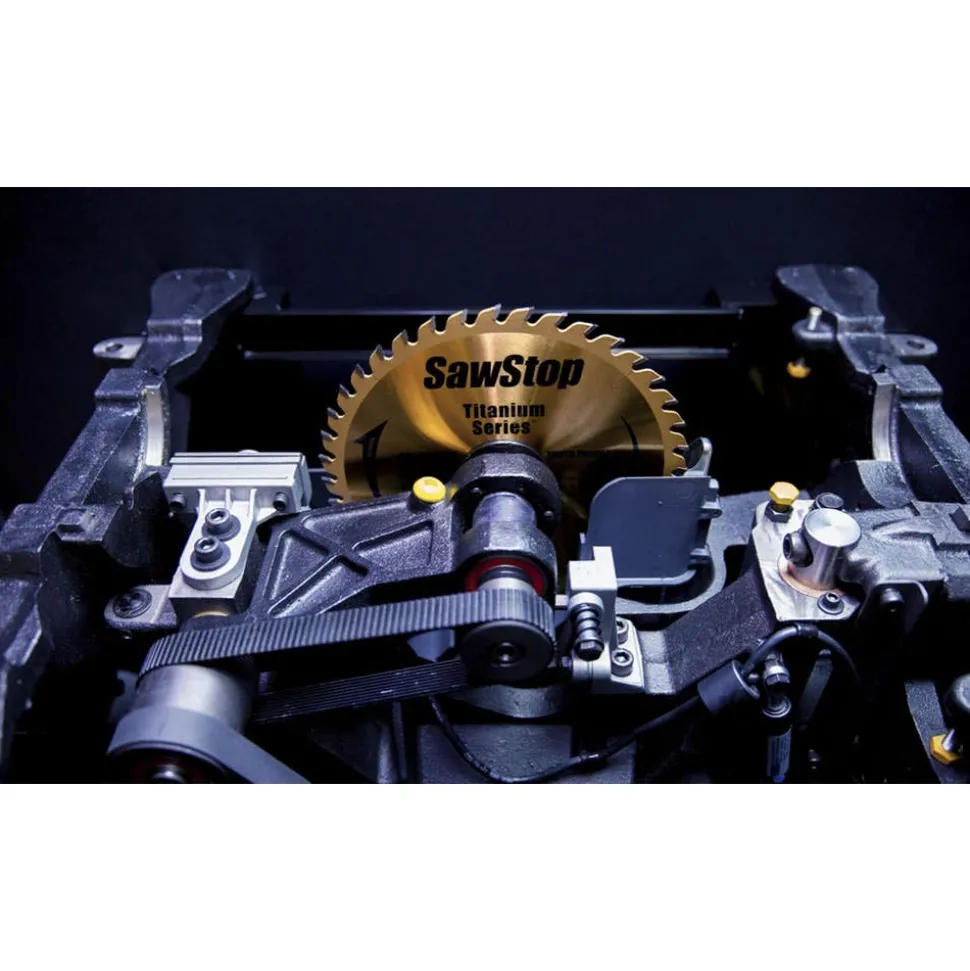

- SawStop Safety System stops on contact with skin.
- Horsepower: 5HP
- Dimension: 69 1/4″ w, 36 1/2″ d, 34″ h
| 36″ Rip Capacity | 36″ T-Glide Fence Assembly |
|---|---|
| Motor Option(s) (60Hz TEFC) | 3, 5, 7.5 HP available |
| Overall saw dimensions 36 in | 69 1/4″ W x 36 1/2″ D x 34″ H |
| Motor configuration 3 | 5 HP, 3 phase, 230v, 12 A, 60Hz, TEFC |
| Saw body footprint | 20″ W x 25″ D (Cabinet) |
| Cast iron table | 24″ W x 30″ D |
| Cast iron table (w/ extension wings) | 44″ W x 30″ D |
| Extension wings | 10″ W x 30″ D each |
| Extension table 36 in | 24″ W x 30″ D |
| Shipping weights – w/ 36 in fence systems | 755 lbs (4 boxes) |
| Shipping dimensions (saw body only) | 40″ W x 40″ D x 40″ H |
| Shipping weight (approx.) | 640 lbs (table saw only) |
| Assembled weights – w/ 36 in fence systems | 635 lbs. (approx weight, actual weight varies by motor size) |
| Weights – table saw only | 530 lbs. (approx weight, actual weight varies by motor size) |
| Blade | 40-tooth Titanium, 5/8″ arbor |
| Blade diameter | 10″ |
| Blade tilt | Left |
| Blade kerf | 0.118″ (3mm) |
| Blade plate thickness | 0.078″ (2mm) |
| Max. depth of cut, blade at 0º | 3 1/8″ |
| OPT SKU | KIT-SAWICS53230-36 |
|---|---|
| MPN | ICS53230-36 |
| UPC/GTIN | 857555005123 |
| Product Type | Table Saws |
| Google Category | Hardware > Tools > Saws > Table Saws |
| Diameter | 10″ |
| Power Method | Corded/Electric |
| Package | Bundle |
| Voltage | 220V/240V |
| Shipping Weight | 810.00 |
