- (2) Cast Iron Extension Wings
- (1) Miter Gauge
- (1) Dust Collection Blade Guard
- (1) Riving Knife
- (2) Blade Wrenches
- (1) Push Stick
- (1) 10” Blade
- (1) Standard Lockdown Insert
- (1) Standard Brake Cartridge
- (1) Owner’s Manual
- (2) Hardware Packs
- (1) 3mm Hex Key
- (1) 5mm Hex Key
- (1) 8mm Hex Key
- (1) Blade Spacing Adjustment Gauge
- 36″ Industrial T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection.
- Durable craftmanship and thoughtful details combine for consistent, reliable performance in the most demanding industrial environments.

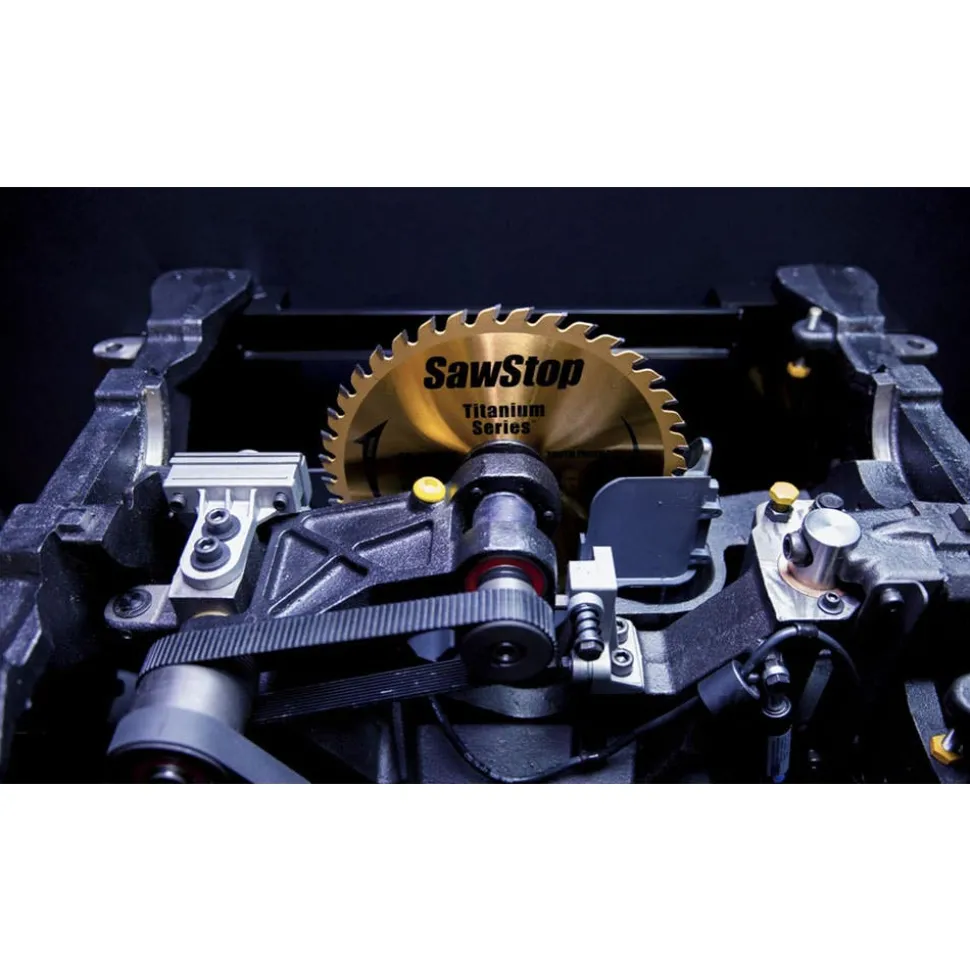

- SawStop Safety System stops on contact with skin.
- Horsepower: 7.5HP
- Dimension: 69 1/4″ w, 36 1/2″ d, 34″ h
36″ Rip Capacity | 36″ T-Glide Fence Assembly |
---|---|
Motor Option(s) (60Hz TEFC) | 3, 5, 7.5 HP available |
Overall saw dimensions 36 in | 69 1/4″ W x 36 1/2″ D x 34″ H |
Motor configuration 6 | 7.5 HP, 3 phase, 480v, 9 A, 60Hz, TEFC |
Saw body footprint | 20″ W x 25″ D (Cabinet) |
Cast iron table | 24″ W x 30″ D |
Cast iron table (w/ extension wings) | 44″ W x 30″ D |
Extension wings | 10″ W x 30″ D each |
Extension table 36 in | 24″ W x 30″ D |
Shipping weights – w/ 36 in fence systems | 755 lbs (4 boxes) |
Shipping dimensions (saw body only) | 40″ W x 40″ D x 40″ H |
Shipping weight (approx.) | 640 lbs (table saw only) |
Assembled weights – w/ 36 in fence systems | 635 lbs. (approx weight, actual weight varies by motor size) |
Weights – table saw only | 530 lbs. (approx weight, actual weight varies by motor size) |
Blade | 40-tooth Titanium, 5/8″ arbor |
Blade diameter | 10″ |
Blade tilt | Left |
Blade kerf | 0.118″ (3mm) |
Blade plate thickness | 0.078″ (2mm) |
Max. depth of cut, blade at 0º | 3 1/8″ |
OPT SKU | KIT-SAWICS73480-36 |
---|---|
MPN | ICS73480-36 |
UPC/GTIN | 857555005246 |
Product Type | Table Saws |
Google Category | Hardware > Tools > Saws > Table Saws |
Diameter | 10″ |
Power Method | Corded/Electric |
Package | Bundle |
Shipping Weight | 750.00 |
