Simplex

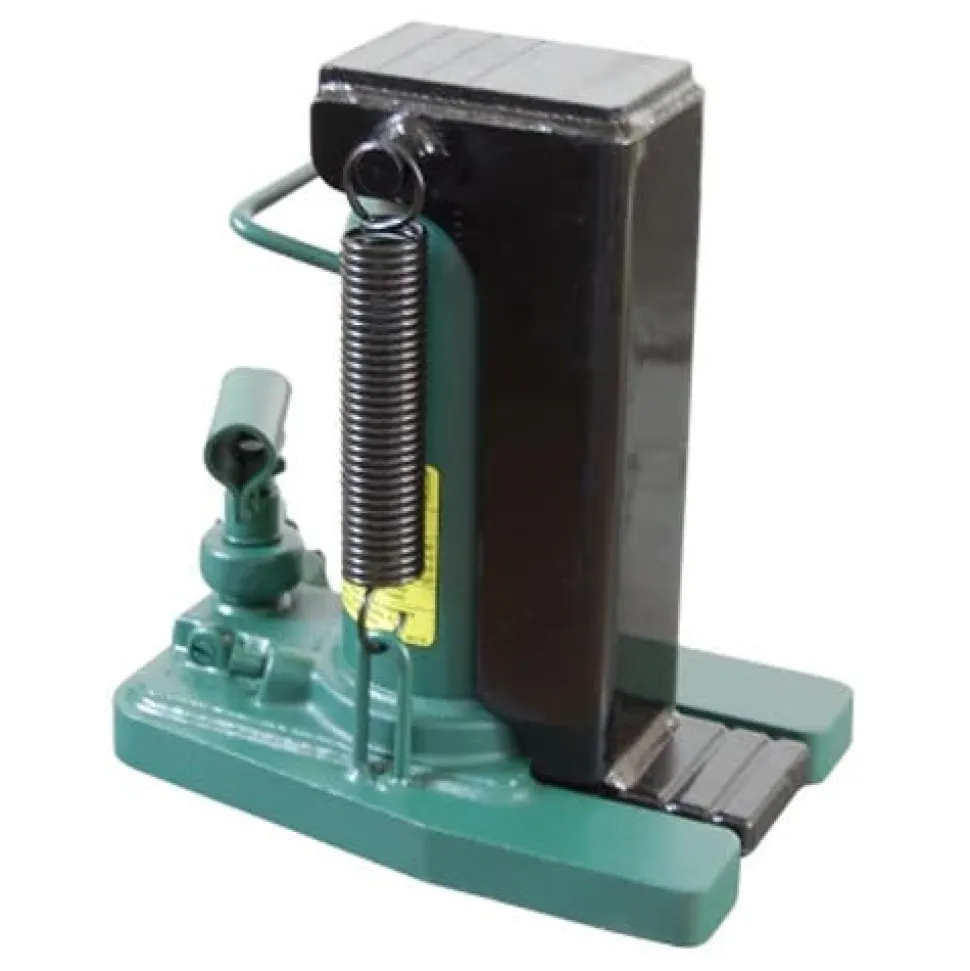

10 Ton Toe Jack 5.87” Stroke TJH10A
FEATURES:
- Self-contained models for maximum versatility.
- Low toe heights fit in tight clearances.
- The lowest handle effort for easy operation.
- The lowest weights for reduced back injuries.
- Swivel sockets for access in close quarters. (TJH5A & TJH10A only).
- Lever Bars are included with all models.
- TJH2A, TJH5A and TJH10A Toe Jacks come equipped with a 3 piece Lever Bar set to accommodate space limitations.
- Toe Lifts are rated at maximum capacity on all models.
SPECIFICATIONS:
| Capacity (imperial tons) | 10 |
| Stroke (in) | 5.71 |
| Minimum Height Toe (in) | 1.22 |
| Minimum Height Capacity (In) | 12.87 |
| Power Source | Hydraulic |
| Handle Effort per Ton (lbs) | 56.2 |
| Return Type | Spring |
| Weight (lbs) | 83 |
| OPT SKU | SIMTJH10A |
|---|---|
| MPN | TJH10A |
| UPC/GTIN | 812761021930 |
| Product Type | Mechanical Jacks & Movers |
| Google Category | Business & Industrial > Material Handling > Lifts & Hoists > Jacks & Lift Trucks |
| Shipping Weight | 85.00 |
