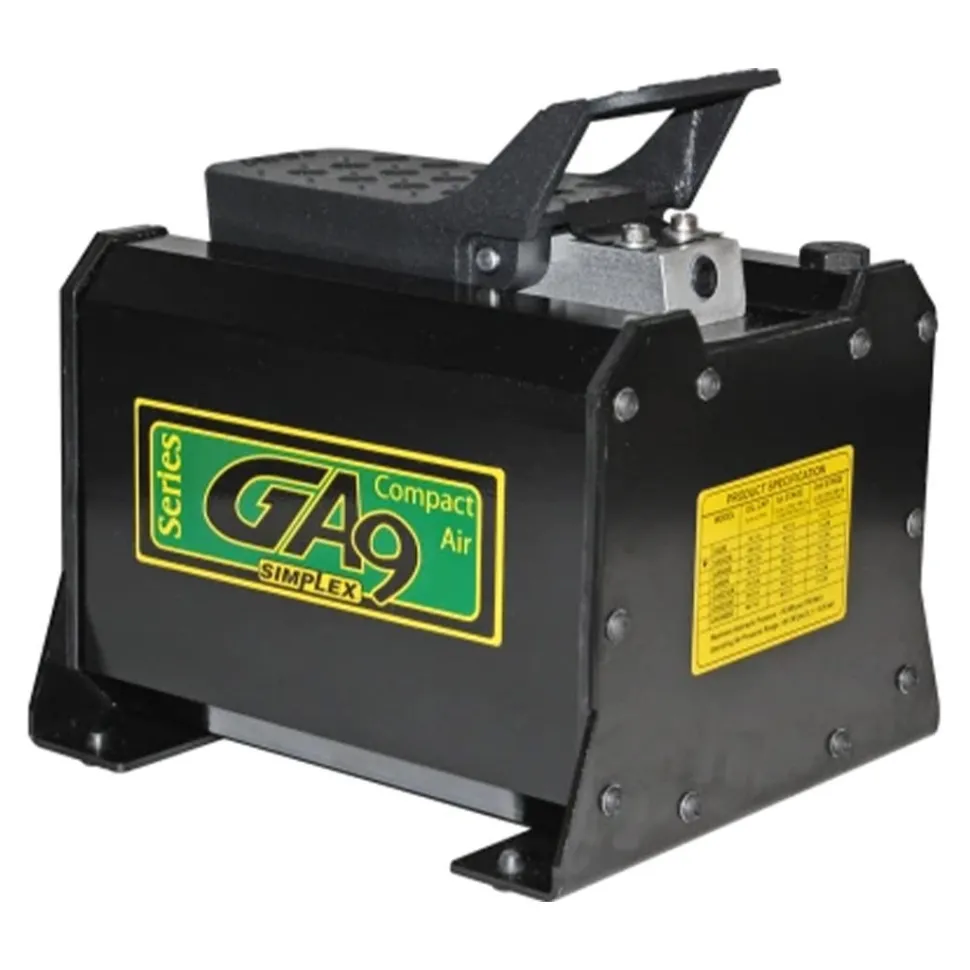

Simplex Air Over Hydraulic Compact Foot Pump, 230 in3 GA9230

Name: Simplex Air Over Hydraulic Compact Foot Pump, 230 in3 GA9230
Brand: Simplex
SKU: SKUeYPnSkgR5F
Availability: InStock

Original price was: $951.00.Current price is: $126.89.

SKU: SKUeYPnSkgR5F Categories: Hydraulic Pumps High Pressure, Power Tools Tag: Simplex Brand: Simplex

Additional Details

Simplex

Air Over Hydraulic Compact Foot Pump, 230 in3 GA9230

FEATURES:

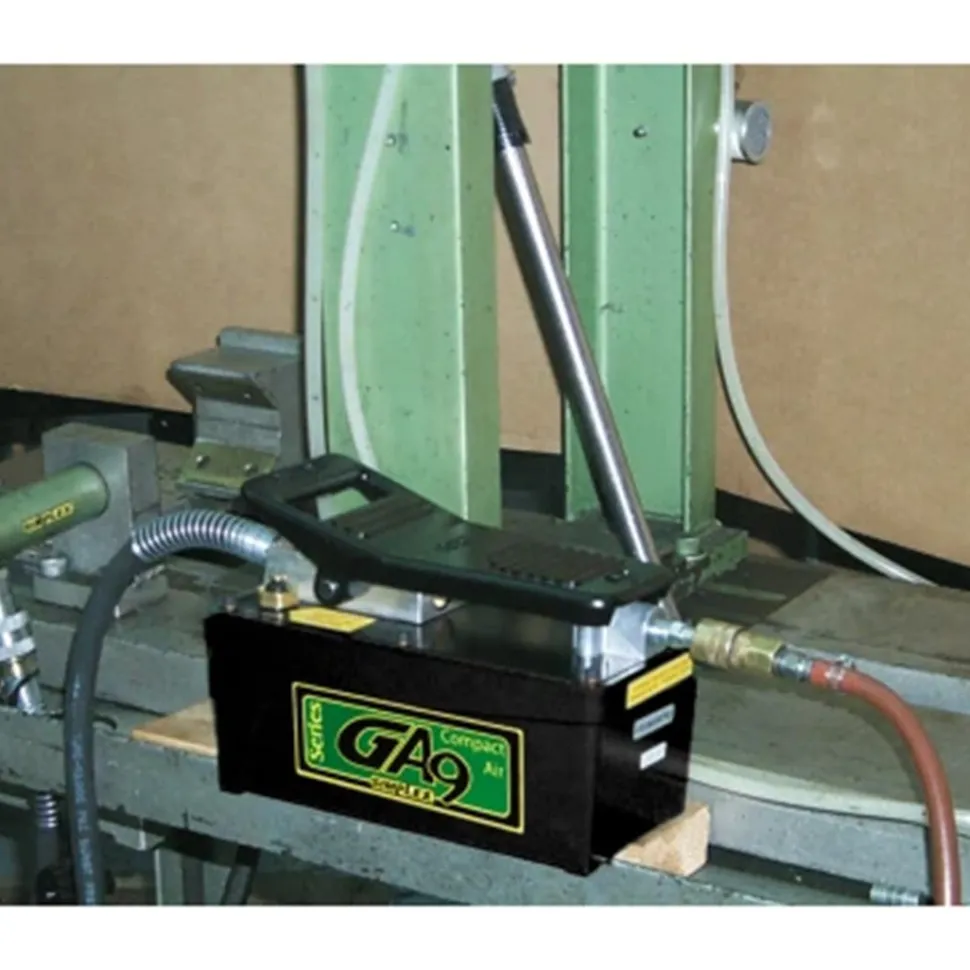

An intermittent portable foot controlled pump best suited for pressing, production and shop tool applications. Runs effectively on 10 CFM (10 pi3) / @ 60 – 150 PSI (4,13 – 10,34 bar).
3 position non-slip, diamond grip treadle for safe advance, hold & retract operation.
Quiet operation – 85 dba @ 10,000 psi (700 bar) for in-house production.
Rugged all metal construction.
High quality rubber gasket seals.
Integrated non-spill vent / oil level indicator.
Pedal can be used to reduce operator strain by locking in the release position.
Four mountable non-skid rubber feet can be used to make your pump stationary.
A non-slip diamond plate texture gives the user safe and controlled foot pivoting action.

SPECIFICATIONS:

Maximum Operating Pressure (psi)	10,000
Cylinder Compatability	Single-Acting
Usable Oil Capacity (in3)	230
Output Flow Rate (in3/min) at 0 psi	68
Output Flow Rate (in3/min) 10000 psi	11
Valve Operation	Manual
Power Source	Air
Pump Control	Foot Pedal
Air Pressure Range (psi)	60 – 150
Sound Level (dBa)	85
