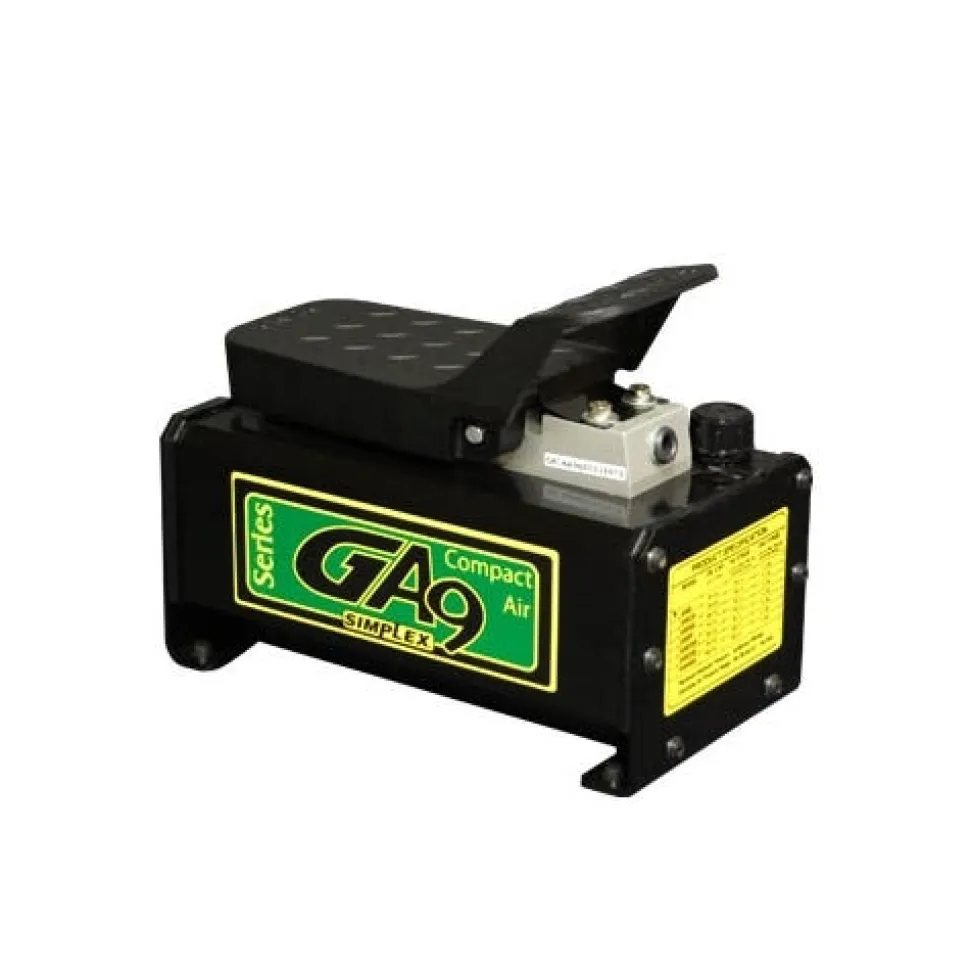

Simplex Air Powered Hydraulic Foot Pump GA90

Simplex

Air Powered Hydraulic Foot Pump GA90

FEATURES:

• Rugged all-metal construction.
• High performance/fast operation.
• Pressure relief valve protects hydraulic circuit.
• Quiet operation – 85 dba @ 10;000 psi for in-house production.
• Reduced operator fatigue.
• 3 position non-slip; diamond grip treadle for safe advance; hold; and retract.
• 1/4 NPT air entrance.
• Air inlet valve for smooth operation.
• Serviceable air piston assemble.
• Piston with U-cup sealing offers extended life.
• High rate spring for rapid response.
• High performance air muffler.
• Large 3/8″ npt hydraulic pressure port.
• (2) 25 Micron screens keeps circuit clean.
• High performance inlet check assembly.
• High strength cast steel pump body.
• Chrome plated.
• High perform ace outlet check assembly.
• Release pin offers smooth pressure release.

SPECIFICATIONS:

Control	Foot Pedal
Usable Oil Capacity	90 cu. in.
Oil Flow	At 0 psi: 68 cu.in. At 10;000 psi: 11 cu. in.
Operating air pressure range	60-150 psi

“
