Simplex Aluminum 100 Ton Hydraulic 4″ Double Acting Cylinder Center Hole RACD1004

• Simplex Hydraulic
• Capacity : 100 ton
• Stroke : 4 inch
• • Body O.D. : 11 inch

  • Center Hole O.D. : 3.5 inch

• Min. Height : 12 inch
• Oil Cap. Req. (Push/Pull) : 83.04/31.2 cu. in.
• Max. Pressure : 10000 psi
• Heavy duty spring for fast & full retraction.
• Chrome plated center hole for extra protection.
• Carrying handles standard on all models.
• Technical hard coating reduces wear & corrosion.
• Stop rings for piston blow-out protection.
• Rod wiper protects inner cylinder from dirt.

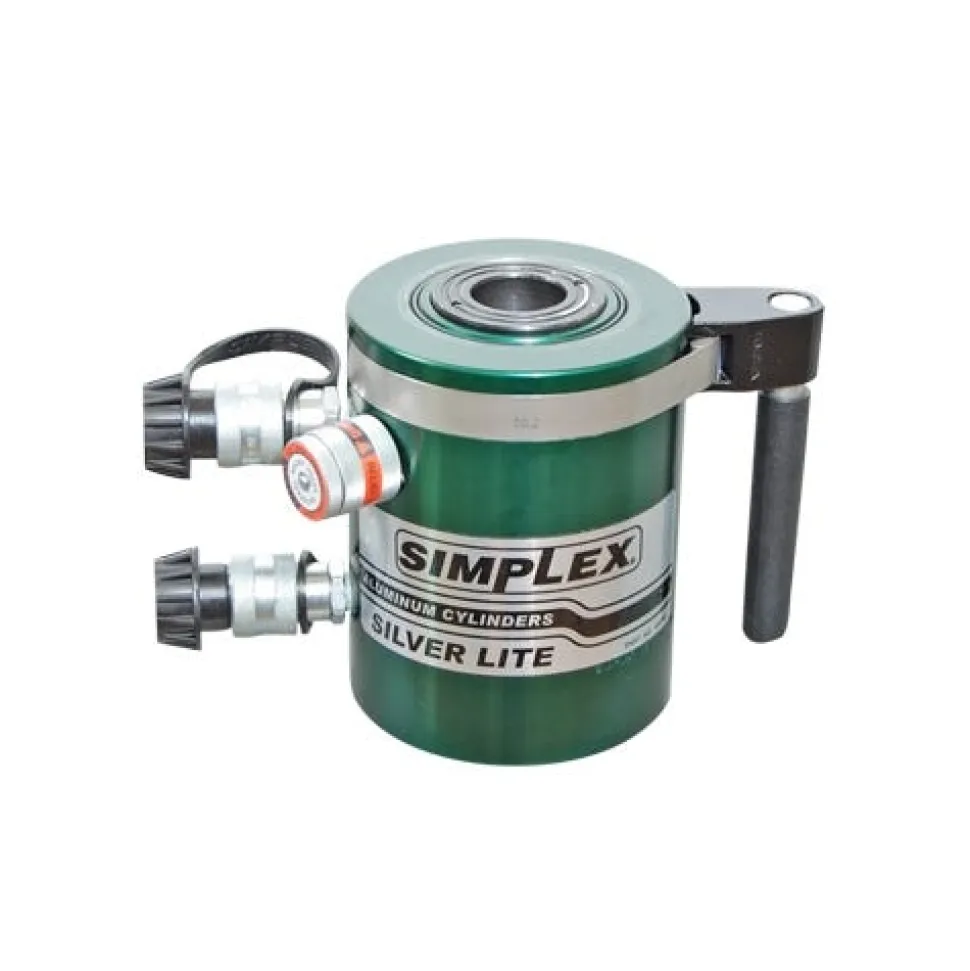

• ** Not Exact Picture

“
