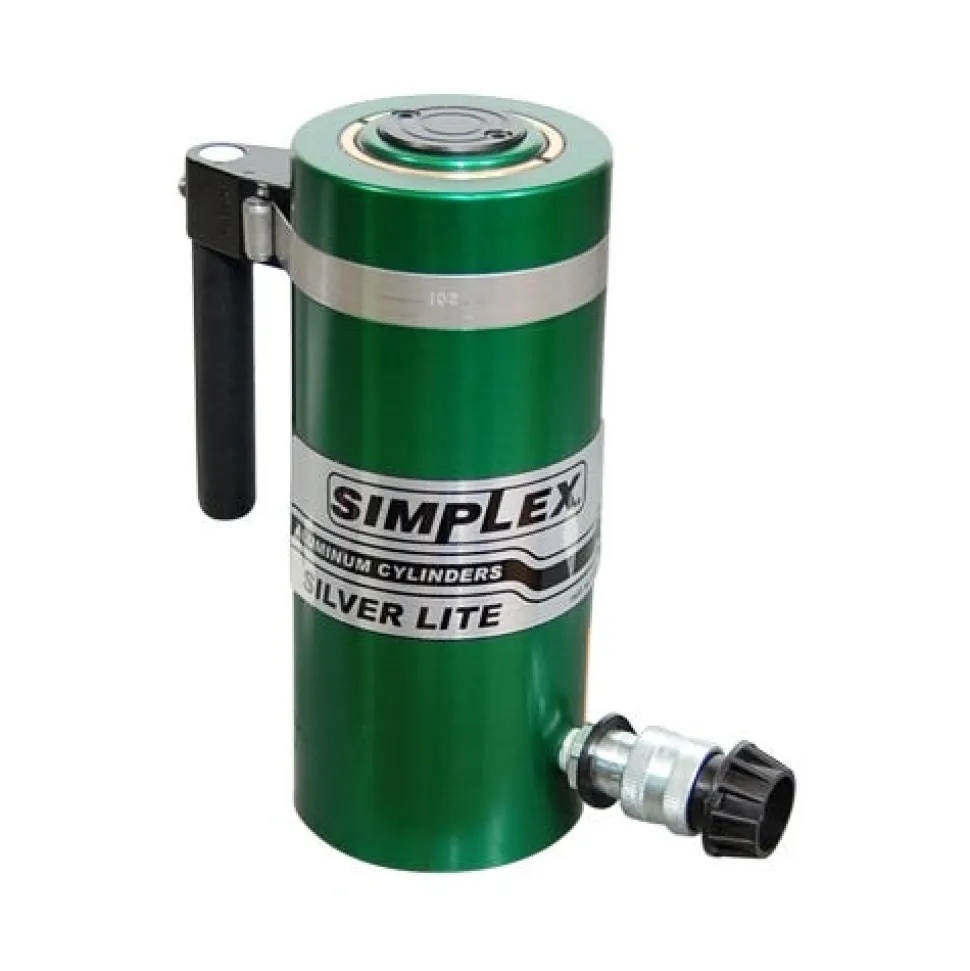

Simplex Aluminum 50 Ton Hydraulic 10″ Single Acting Cylinder Spring Return RAS5010B

• Simplex Hydraulic
• Capacity : 50 ton
• Stroke : 10″
• Min. Height : 14.5″
• Body O.D. : 5.5″
• Piston O.D. : 3.13″

• Oil Cap. Req. : 110.4 cu. in.
• Max. Pressure : 10000 psi
• Heavy duty spring for fast & full retraction.
• Large bearing surfaces for side load protection.
• Technical hard coating reduces wear & corrosion.
• Stop rings for piston blow-out protection.
• Rod wiper protects inner cylinder from dirt.
• ** Not Exact Picture


“
