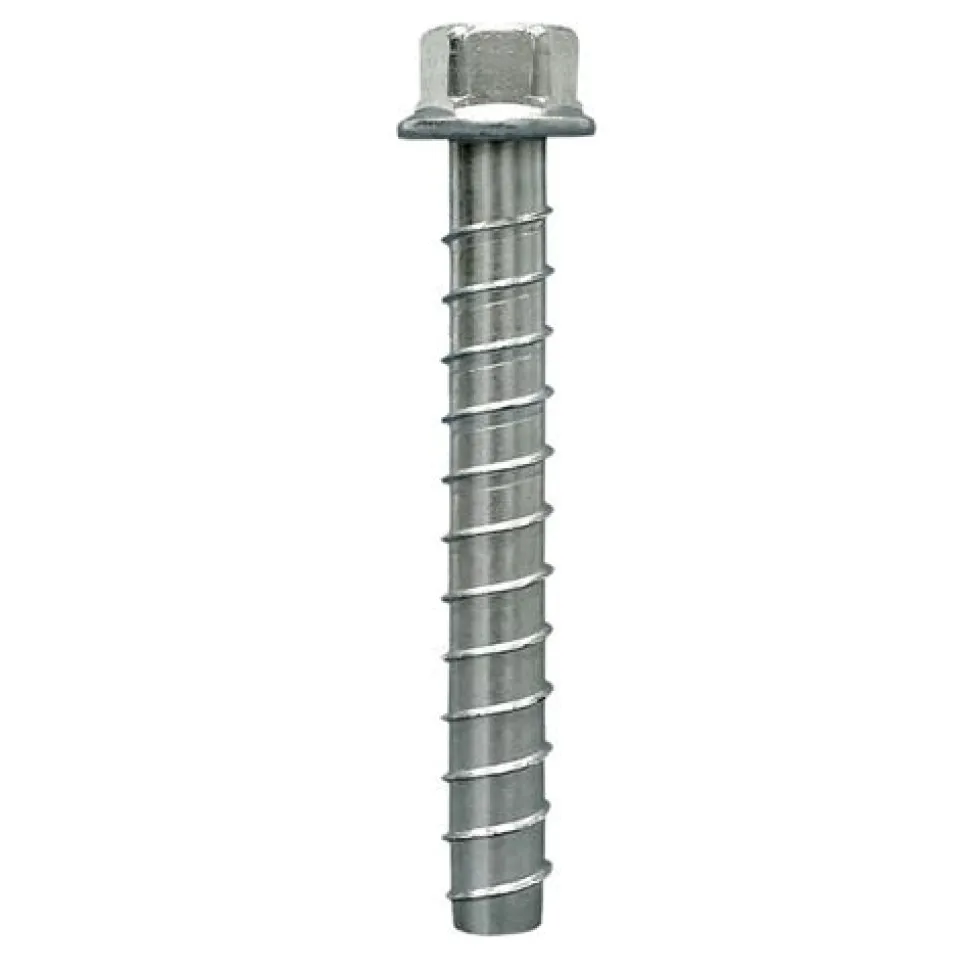

Simpson 5/8” x 6″ Strong-Tie Titen HD Heavy-Duty Screw Anchor (Box of 10) THDB62600H

Simpson Strong-Tie

5/8 x 6″ Titen HD Heavy-Duty Screw Anchor (Box of 10) THDB62600H

The original high-strength screw anchor for use in cracked and uncracked concrete; as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed and tested in dry; interior; non-corrosive environments or temporary outdoor applications; the Titen HD demonstrates industry-leading performance even in seismic conditions.

FEATURES:

• Qualified for static and seismic loading conditions.
• Thread design undercuts to efficiently transfer the load to the base material.
• Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility.
• No special drill bit required — designed to install using standard-sized ANSI tolerance drill bits.
• Testing shows the Titen HD installs in concrete with 50% less torque than competitor anchors.
• Hex-washer head requires no separate washer; unless required by code; and provides a clean installed appearance.
• Removable — ideal for temporary anchoring (e.g.; formwork; bracing) or applications where fixtures may need to be moved.
• Reuse of the anchor to achieve listed load values is not recommended.
• Code listed under IBC/IRC in accordance with ICC-ES AC193 and ACI 355.2 for cracked and uncracked concrete per ICC-ES ESR-2713.
• Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056.

SPECIFICATIONS:

Material	Carbon steel
Coating	Zinc Plated
Size (in.)	5/8″ x 6″
Drill Bit Dia. (in.)	5/8″
Wrench Size (in.)	15/16″
Recommended Fixture Hole Size (in.)	3/4″ to 13/16″

“
