Simpson Strong-Tie Drop-In Anchor 1/4″ Rod Size (PACK 100) DIAB25

Simpson Strong-Tie

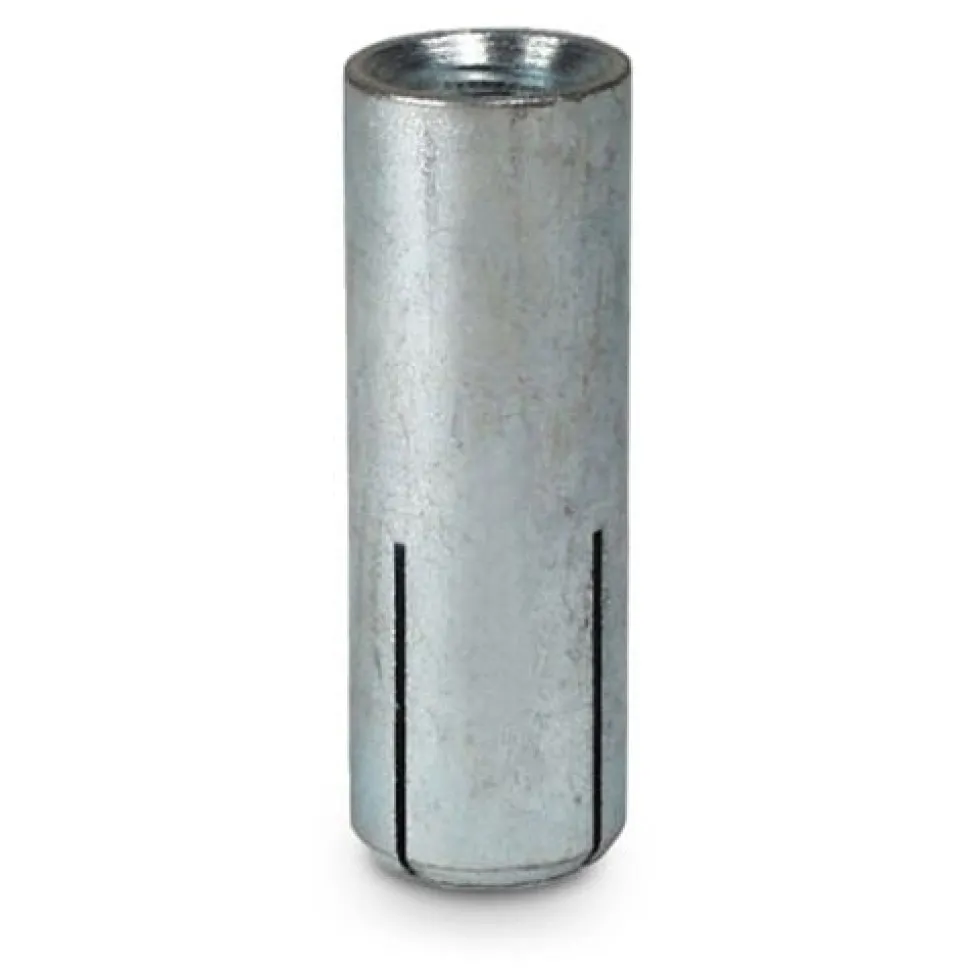

Drop-In Anchor 1/4 Rod Size DIAB25

Simpson Strong-Tie introduces a new; redesigned Drop-In anchor (DIAB) that provides easier installation into base materials. These displacement-controlled expansion anchors are easily set by driving the plug toward the bottom of the anchor using either the hand- or power-setting tools.

FEATURES:

• New design offers easier installation than previous drop-in anchor design — sets with 40% fewer hammer hits.

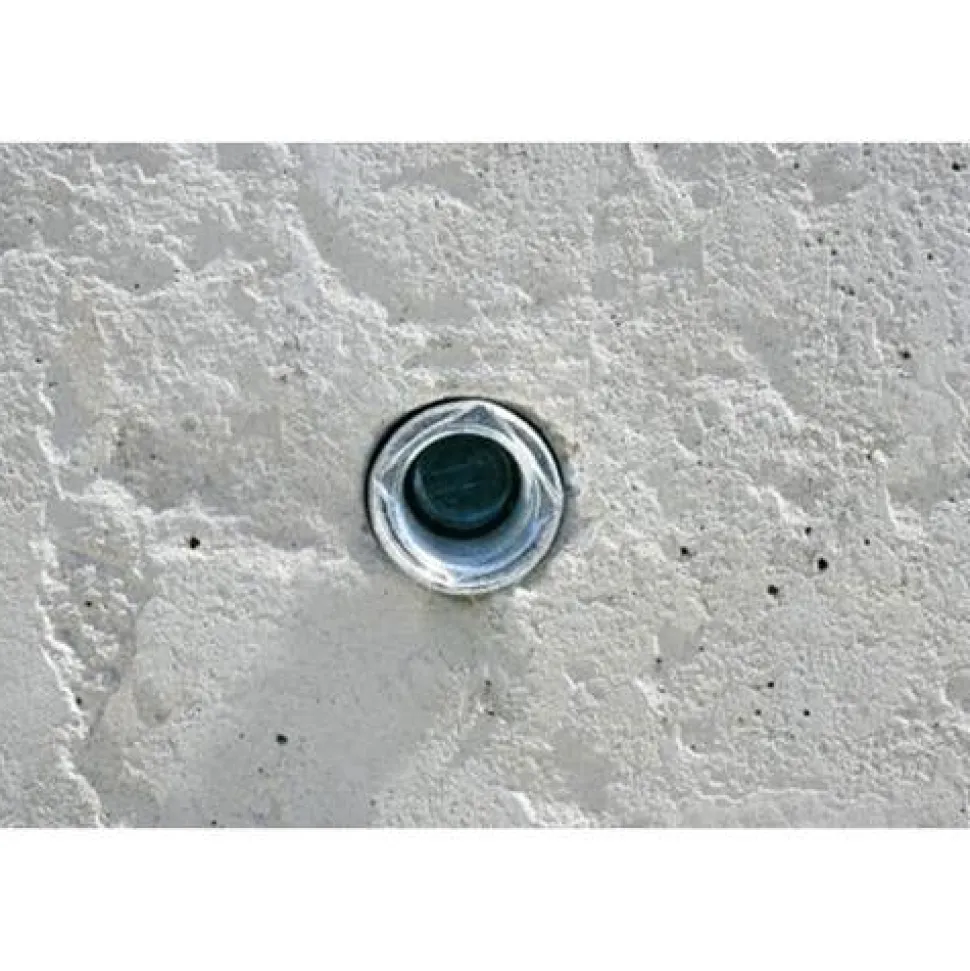

• Positive-set marking system indicates when anchor is properly set.
• Hand- and power-setting tools available for fast; easy and economical installation.
• Fixed-depth stop bit helps you drill to the correct depth every time.

SPECIFICATIONS:

Material	Carbon steel
Finish	Zinc Plated
Drill bit dia. (in.)	3/8″
Length (in.)	1″
Rod dia. (in.)	1/4″
Thread Length (in.)	3/8″
TPI	20

“
