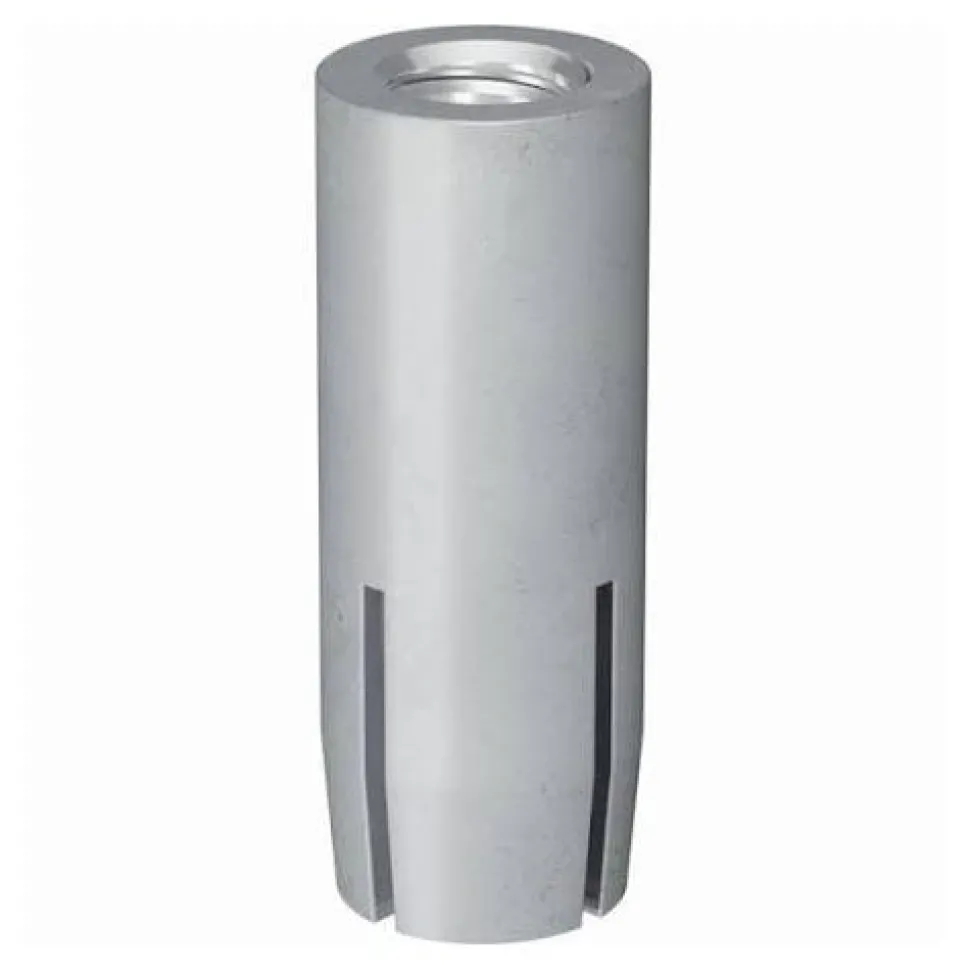

Simpson Strong-Tie Drop in Anchors 316 Stainless Steel 1/2″ Rod Size (PACK 50) DIA506SS

• Simpson Strong-Tie
• Drop in Anchors 316 Stainless Steel 1/2 Rod Size (PACK 50) DIA506SS
• Drop-In anchors are internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials. Available in stainless steel (DIA); short (DIAS) or coil-thread (DIAC) versions. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.
• Installation
• Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth plus 1/8″ for flush mounting. Blow the hole clean using compressed air. Overhead installations need not be blown clean.
• Insert designated anchor into hole. Tap with hammer until flush against surface.
• Using the designated drop-in setting tool; drive expander plug toward the bottom of the anchor until shoulder of setting tool makes contact with the top of the anchor.
• Minimum thread engagement should be equal to the nominal diameter of the threaded insert.

“
