Simpson Strong-Tie

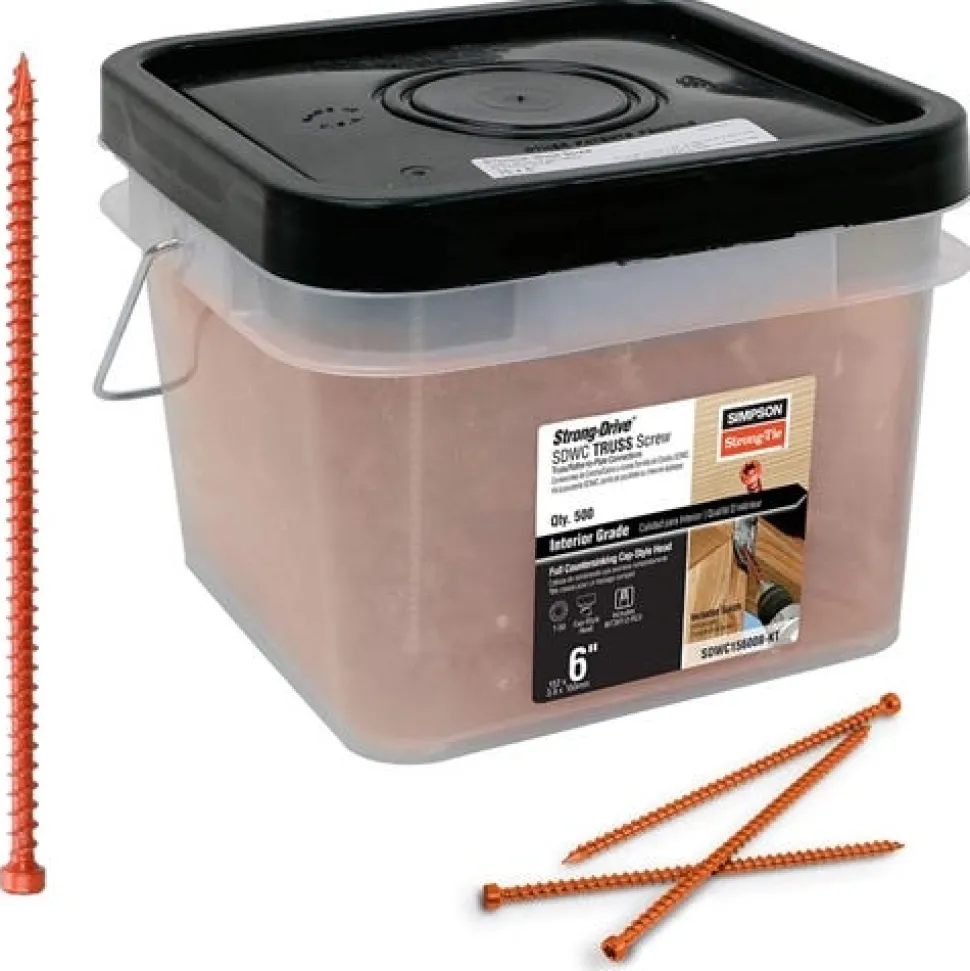

Strong-Drive 6 SDWC Truss Screws (Box of 500) SDWC15600B-KT
The Strong-Drive SDWC Truss screw provides a stud-to-bottom plate or stud-to-top plate connection as well as fastening trusses and rafters to top plates. The full-threaded shank engages the entire length of the fastener; providing a secure connection. It is code listed under IAPMO-UES ER-262 and meets 2015 and 2018 IRC and IBC code requirements for several common wood framing applications.
FEATURES:
- Fully threaded shank engages the entire length of the fastener; providing a secure connection between the roof and wall framing members.
- Cap-style head countersinks fully into the double top plate to avoid interference with drywall or finish trades.
- Wide tolerance on installation angle makes it easy to install the SDWC correctly.
- Can be installed from inside the structure; eliminating exterior work on the upper stories and enhancing job safety.
- Fastening can be performed before or after exterior sheathing is applied for added flexibility.
- Metal installation guide tool (included) to help ensure proper installation.
- Matched-tolerance driver bit (included) engages fastener head securely to allow one-handed driving (replacement bit part no. BIT30T-2-RC3).
- Orange color for easy inspection.
- Type-17 point for faster starts and easier driving.
- SDWC15450 is recognized for use in chemically treated wood as described in the evaluation report.
SPECIFICATIONS:
| Coating / Material | Clear Zinc Coating |
|---|---|
| Length | 6″ |
| Shank Diameter | 0.152″ |
| Drive Type | T30 6-Lobe |
| Head Type | Cap Head |
| Thread Length | 5-3/4″ |
| Point Type | Type-17 Point |
| Color | Orange |
INCLUDES:
- (500) 6″ SDWC Truss Screws
“
| Depth | 0.335 in. |
|---|---|
| Width | 0.335 in. |
| Height | 6 in. |
| Limited Warranty | Limited warranty, available at www.strongtie.com/limited-warranties. |
| Packaging Quantity | 500 |
| Country of Origin | Taiwan |
| OPT SKU | SSTSDWC15600B-KT |
|---|---|
| MPN | SDWC15600B-KT |
| UPC/GTIN | 707392888307 |
| Product Type | Connector Screws |
| Google Category | Hardware > Hardware Accessories > Hardware Fasteners > Screws |
| Shipping Weight | 5.00 |
