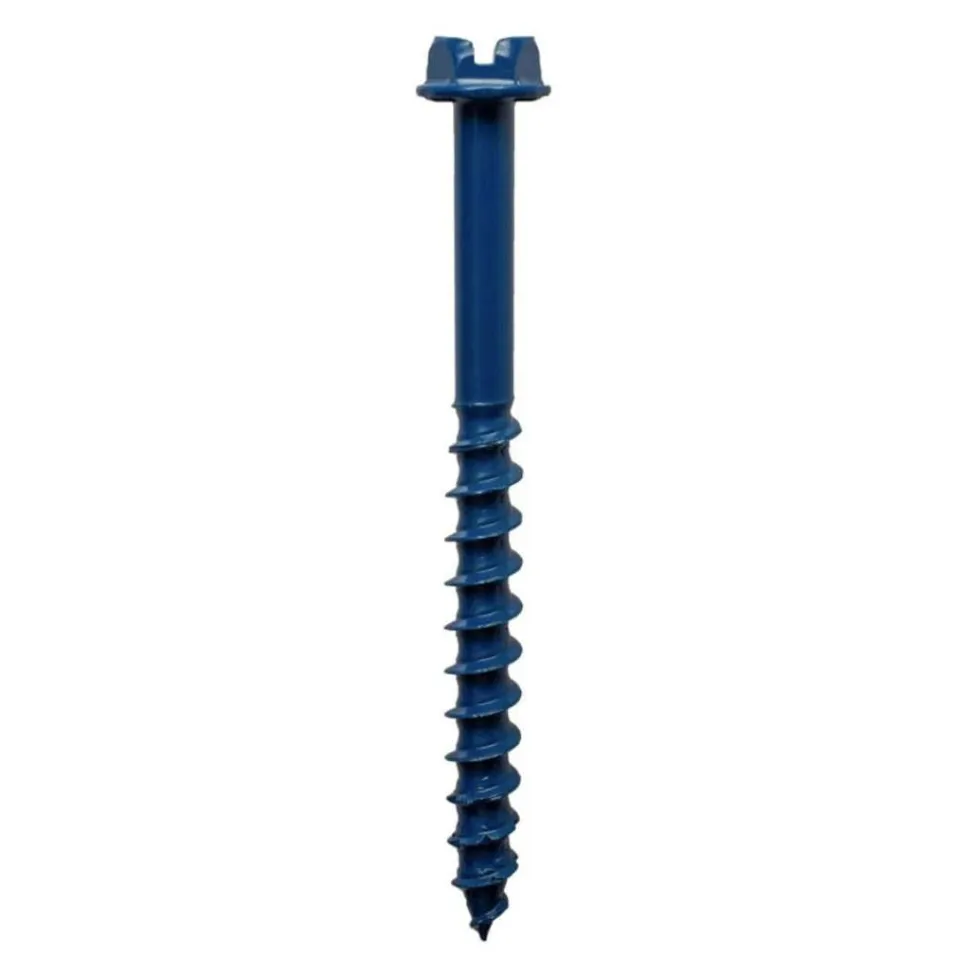

Simpson Strong-Tie Titen Turbo 3/16″ x 1-1/4″ Hex Head Concrete & Masonry Screws (Box of 100) TNT18114H

Simpson Strong-Tie

Titen Turbo 3/16″ x 1-1/4″ Hex Head Concrete & Masonry Screws (Box of 100) TNT18114H

The Titen Turbo screw anchor features an innovative Torque Reduction Channel to trap drilling dust where it canﾒt obstruct thread action, significantly reducing binding, stripping, and snapping without compromising strength. The patented reverse thread design enables smooth driving with less torque while providing superior holding power.

FEATURES:

• Patent-pending Torque Reduction Channel that displaces dust where it canﾒt obstruct the thread action, reducing the likelihood of binding in the hole..
• Availability with either a hex head or, for a flush profile, a 6-lobe-drive countersunk flat head.
• The 6-lobe driveﾒs larger contact area provides better bit grip for reduced cam-outs, more torque, better performance and longer bit life.
• 6-lobe bit included in packaging for countersunk flat head version.
• Superior tension load performance compared to leading competitors in the market.
• Matched-tolerance bit not required; use a standard ANSI drill bit for installation.
• Serrated screw point for easier starts when fastening wood.
• Designed for installation with an impact driver or cordless drill. Installation using the Titen Turbo Installation Tool is recommended.
• Use in dry interior environments only.
• Code listed in accordance with ICC-ES AC193 for uncracked concrete and ICC-ES AC106 for masonry applications without cleaning dust from predrilled holes.

SPECIFICATIONS:

Head Type	Hex Head
Coating	Zinc Plated with Ceramic Coating
Material	Carbon Steel
Size	3/16″ x 1-1/4″
Drill Bit Diameter	5/32″
Drive Type	1/4″ Hex
Color	Standard Blue

INCLUDES:

• (100) Titen Turbo 3/16″ x 1-1/4″ Hex Head Concrete & Masonry Screws
