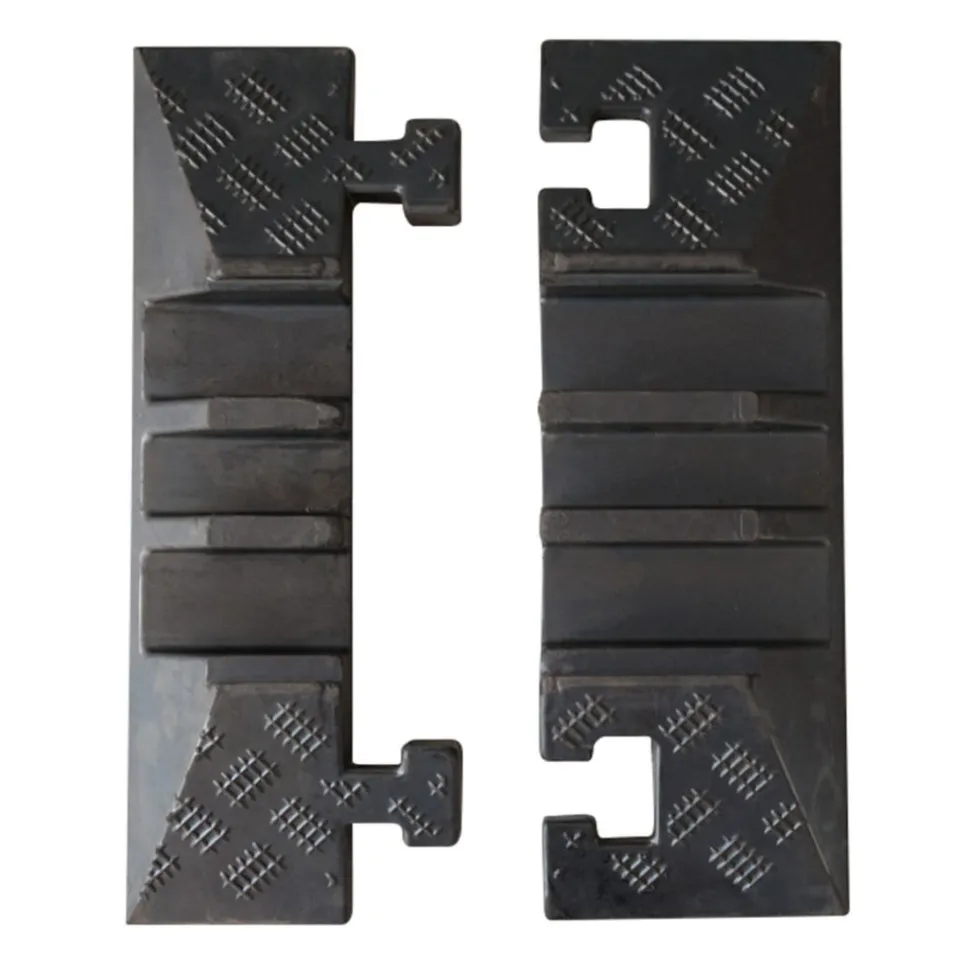

Southwire ShockShield 3 Channel End Cap Cable Protection System (2-Caps) 31208-1

Southwire

ShockShield 3 Channel End Cap Cable Protection System (2-Caps) 31208-1

Assure your temporary electrical cable runs with ShockShield Cable ProtectionSystems. Perfect for any application where cables are in harms way. Connect multiplepieces to adapt the protection to your specific environment. Eliminate downtime,costly repairs and jobsite liabilit

FEATURES:

• Non-slip molded pattern.
• Heavy Duty materials hold up to rugged conditions.
• Black rubber base and Safety Yellow hinged EVA channel covers.
• Non-conductive and resists oils and solvents.
• Modular design allows virtually any configuration.
• Robust interlocking connectors.
• Load bearing capacity to 40,000 lbs or 21,000 lbs per axle.
• Handle is integrated into the linear pieces for portability.
• Stake/Nail through holes in base pieces allows for more stable installation.

SPECIFICATIONS:

Type	End Cap (2)
Channel QTY	3
Channel Size	1.96″ x 2.09″
Length	7.87″
Width	23.625″
Height	2.95″
Load Capacity / Per Axle Cap (lbs)	40,000/21,000
Material	Rubber
Cable Lid	EVA (plastic)
