Spectra Precision 2,600' Diameter Interior/ Exterior; Horizontal/ Vertical Laser w/ Receiver HV302GC-2

Spectra Precision 2,600′ Diameter Interior/ Exterior; Horizontal/ Vertical Laser w/ Receiver HV302GC-2

Original price was: $1,258.00.Current price is: $126.89.

SKU: SKUu9xj9HzQzt Categories: Laser Levels, Power Tools Tag: Spectra Precision Laser Brand: Spectra Precision Laser

Description
Reviews (0)

Additional Details

Spectra Precision

Medium Range Interior/ Exterior; Horizontal/ Vertical Laser w/ Receiver HV302GC-2

FEATURES:

Automatic horizontal and vertical self-leveling
Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
Working range of 800 m (2;600 ft) diameter
High-visibility beam – easily visible even inbrightly lit conditions
Split beam – enables plumb point transferand 90-degree layout
Height of Instrument Alert – unit stops rotatingwhen jarred to avoid erroneous readings
Long range RC402N Radio remote control
Radio communication between the HL760DRO receiver and the laser provides automaticGrade Matching and PlaneLok
“Fingerprint” function of the HL760 DROreceiver only accepts the beam from the laserit is paired with
Extremely durable and portable

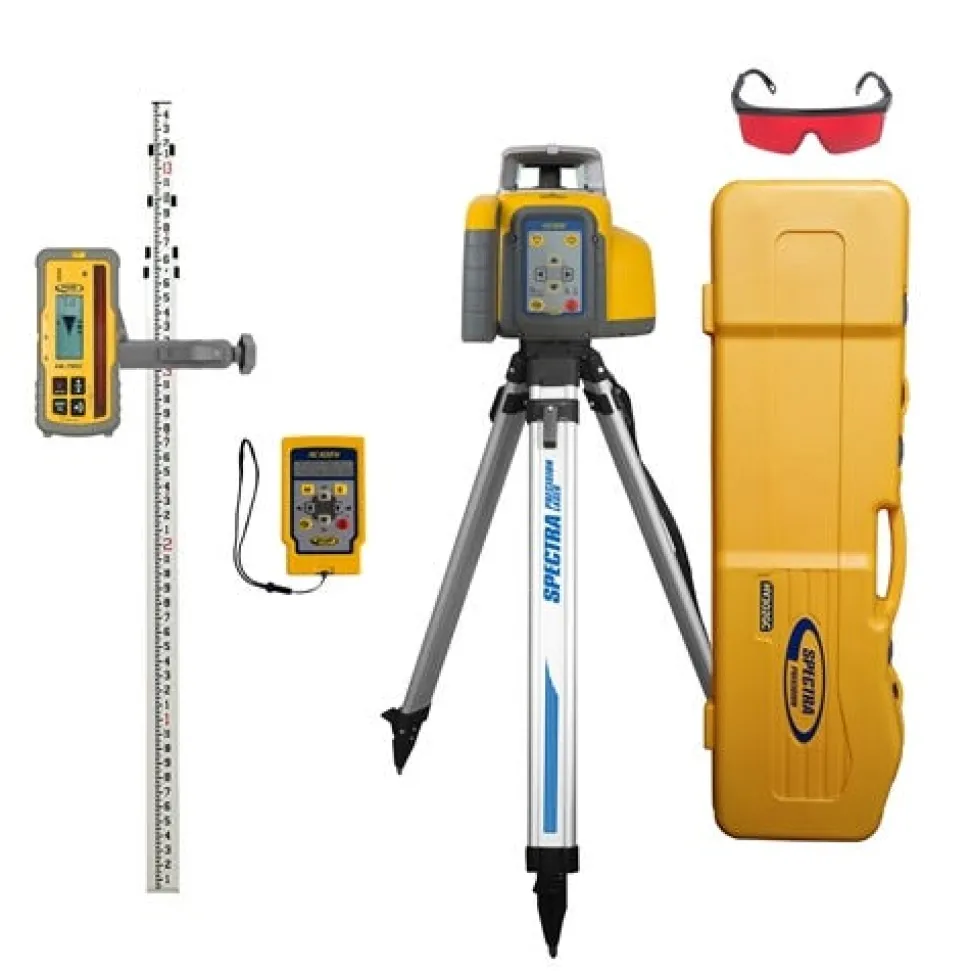

INCLUDES:

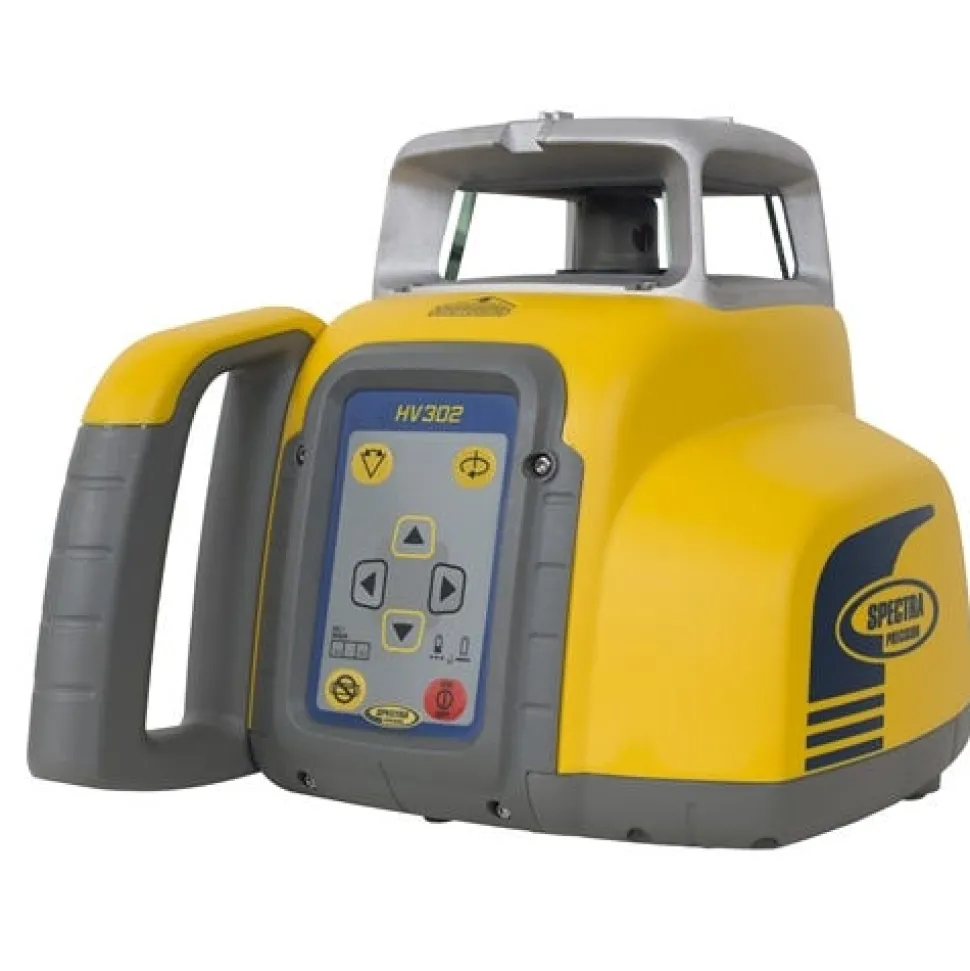

HV302 Horizontal Vertical Laser
RC402N Radio Romote Control
HL760 Laser Receiver
C70 Adapter
105516 Vertical Adapter for HL Receiver
GR152 Grade Rod Inches 15ft
Q104025 Tripod
Q100206 Laser Glasses
All In One Carrying Case”

SPECIFICATIONS:

RC402N Remote Control Specifications
Leveling accuracy1;3:	± 1.5 mm/30 m;1/16“ @ 100 ft; 10 arc seconds
Operating diameter	1;2: appr. 800 m (2600 feet)
Rotation:	0; 10; 80; 200; 600 rpm
Pre-selected scan sizes:	5°; 15°; 45°; 90°; 180°and 0
Laser type:	red diode laser 600-680 nm
Laser class :	Class 3A/3R; max. 5 mW
Self-leveling range:	± 5° (±9%)
Leveling indicators:	LED flashes
Radio range (HL760):	up to 100 m (330 ft)
Power source:	10.000 mAh NiMH battery pack
Battery life :	45 hours NiMH; 60 hours alkaline
Operating temp.:	-20°C to 50°C (-4°F to 122°F)
Storage temp.:	-20°C to 70°C (-4°F to 158°F)
Tripod attachments:	5/8 x 11 horizontally and vertically
Dust and waterproof:	Yes – IP66
Weight:	3.1 kg (6.8 lbs)
Low voltage indication:	LED battery indicator
Low voltage disconnection:	unit shuts off
Warranty:	5 Years
Operating range1;3:	up to 100 m (330 ft)
Power source:	2 x 1.5V AA alkaline batteries
Battery life1	: 130 hours
Dust and waterproof:	Yes – IP66
Weight:	0.26 kg (0.57 lbs)
HL760 Digital Readout Receiver
Digital readout units:	mm; cm; ft; in; frac. in
Reception height:	127 mm (5 inches)
Six On-grade sensitivities:	– Ultra Fine 0.5 mm (~1/32 in)
	– Super Fine 1 mm (~1/16 in)
	– Fine 2 mm (~1/8 in)
	– Medium 5 mm (~1/4 in)
	– Coarse 10 mm (~1/2 in)
	– Calibration Mode 0.1 mm (~1/64 in)
Battery life (2 x AA):	60+ hours continuous operation
Auto shut-off:	30 minutes/24 hours
Operating temp.:	-20°C to 50°C (-4°F to 122°F)
Dust and waterproof:	Yes – IP67
Weight:	0.37 kg (13.1 oz)
Warranty:	3 Years “No Excuses”

“

Specifications

More Information
OPT SKU	SPEC-HV302GC-2
MPN	HV302GC-2
Product Type	Laser Levels
Google Category	Hardware > Tools > Measuring Tools & Sensors > Levels > Laser Levels
Power Method	Cordless
Shipping Weight	49.00
