Spectra Precision

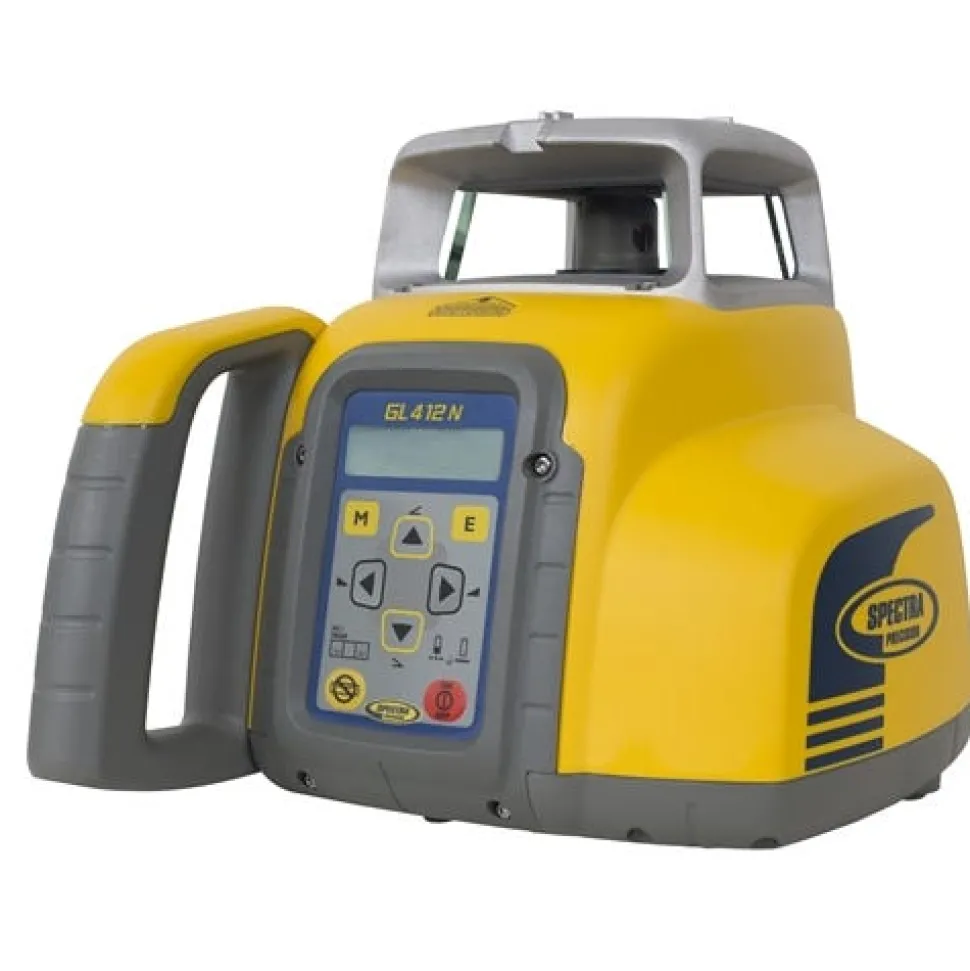

2;600 ft. Diameter Self-Leveling Grade Laser w/ Receiver GL412N
FEATURES:
- Automatic horizontal and vertical self-leveling
- Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
- Working range of 800 m (2;600 ft) diameter
- Radio communication between the HL760DRO receiver and the laser provides automaticGrade Matching and PlaneLok
- “Fingerprint” function of the HL760 DROreceiver only accepts the beam from the laserit is paired with
- Height of Instrument Alert – unit stops rotatingwhen jarred to avoid erroneous readings
- Long range RC402N Radio remote control
- Selection of Sensitivity – accurate even in highwinds or on high vibration job sites
- Extremely durable and portable
- 5 Year warranty
SPECIFICATIONS:
| Leveling accuracy | ± 1.5 mm/30 m;1/16“ @ 100 ft; 10 arc seconds |
|---|---|
| Operating diameter | appr. 800 m (2600 feet)Rotation: 300; 600 rpm |
| Laser type | red diode laser 650 nm |
| Laser class | Class 2; <3.4 mW |
| Self-leveling range | ± 5° (±9%) |
| Leveling indicators | LCD indications and LED flashes |
| Radio range (HL760) | up to 100 m (330 ft) |
| Power source | 10.000 mAh NiMH battery pack |
| Battery life | 35 hours NiMH; 50 hours alkaline |
| Operating temp. | -20°C to 50°C (-4°F to 122°F) |
| Storage temp. | -20°C to 70°C (-4°F to 158°F) |
| Tripod attachments | 5/8 x 11 horizontally and vertically |
| Dust and waterproof | Yes – IP66 |
| Weight | 3.1 kg (6.8 lbs) |
| Low voltage indication | LCD battery indicator |
| Low voltage disconnection | unit shuts off |
| Warranty | 5 Years |
| OPT SKU | SPEC-GL412N |
|---|---|
| MPN | GL412N |
| Product Type | Laser Levels |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Levels > Laser Levels |
| Power Method | Cordless |
| Shipping Weight | 19.00 |
