Spectra Precision

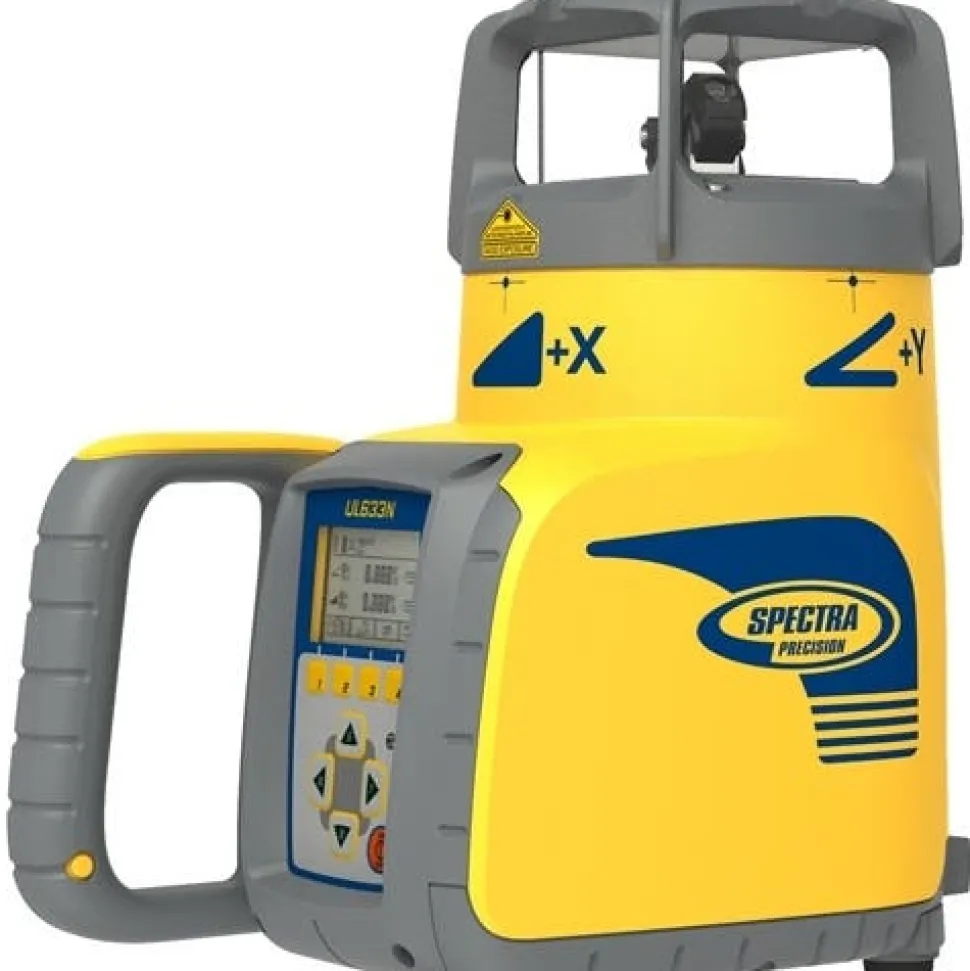

2;600 ft. Diameter Universal Grade Laser UL633N
FEATURES:
- Up to 2;600-foot operating range
- ±1/16 inch accuracy at 100 feet
- Self-leveling within ±14 degrees
- Grade range to ±25% in X; Y; Z axes
- Automatic axis alignment
- Two HL760 laser receivers
- Spot finder for detecting the plumb beam
- Spot match to measure unknown slopes in existing pipes
- Grade matching measures and displays the existing grade
- PlaneLok automatically locks on the laser beam
- Horizontal angle measurement
- Automatic Spot Align for short pipe laying applications
- Scan mode with five preset sizes and variable adjustment
- Different rotation modes
- Mask mode for using multiple lasers on site
- Electronic leveling vibration filter
- Automatic temperature compensation
- Radio remote control
- Ideal for machine control applications
- 5/8-11 tripod thread
- 40-hour battery life
- Water resistant and dustproof to IP-67
- Withstands 3 feet drop onto concrete
- Graphic LCD display and keypad
SPECIFICATIONS:
| Color | Red |
|---|---|
| Wavelength | 650 nm |
| Classification | Class 3A/3R |
| Direction | Horizontal and vertical |
| Visibility | Visible |
| Exterior | Up to 2;600 feet (800 m) |
| Self Leveling | ±14 degrees |
| Battery Life with Rechargeable Battery Pack | Up to 35 hours |
| Battery Life with Alkaline Batteries | Up to 40 hours |
| Power Source | NiMH or alkaline batteries |
| Battery Life Alert | Yes |
| Automatic Shut-Off | Yes |
| Display | Backlit; graphic LCD |
| Drop Damage Protection | Up to 3 feet onto concrete |
| Protection Class | IP67 dustproof and water submersible |
| Tripod Adapter (Center Screw Thread) | 5/8 x 11 |
| Detecting Indicator | LCD indications and LED flashes |
| Adjustable Rotating Speed | 0 – 750 RPM |
| Weight | 6.8 lbs (3.1 kg) |
| Warranty | 5-year |
| Remote Control Operating Distance | Up to 490 feet (150 m) |
| OPT SKU | SPEC-UL633N |
|---|---|
| MPN | UL633N |
| Product Type | Laser Levels |
| Google Category | Hardware > Tools > Measuring Tools & Sensors > Levels > Laser Levels |
| Power Method | Cordless |
| Shipping Weight | 15.00 |
