Werner 1″ 10,000 lbs Reusable Concrete Anchor Connector A510010

Werner

1″ 10,000 lbs Reusable Concrete Anchor Connector A510010

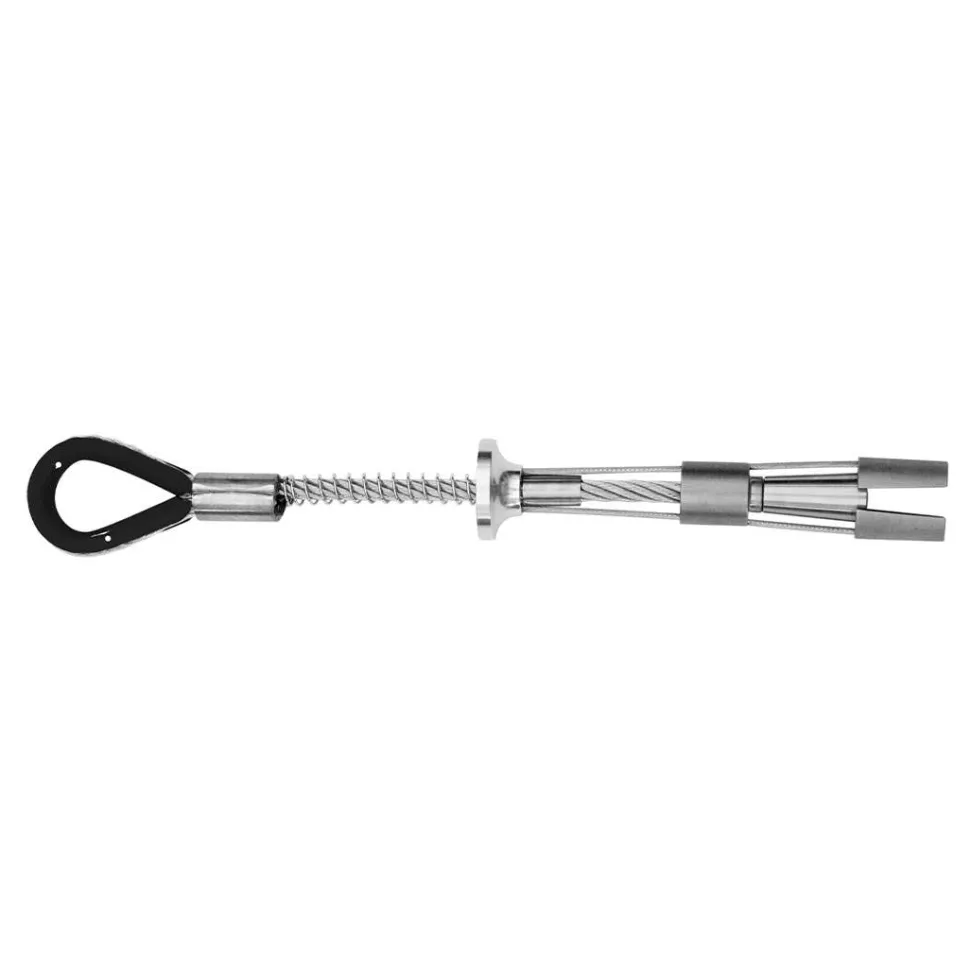

The Werner A510010 Reusable Concrete Anchor is a lightweight, easy to use bolt providing convenient anchorage in concrete. The anchor requires a pre-drilled hole of 1 inch and 4-1/2 inch deep in 3000 psi concrete. It can be used in any direction as a fall protection anchor and is reusable with its easy to insert and remove design.

FEATURES:

• Lightweight design is easy to insert and remove.
• Drill hole of 1 inch with 4-1/2 inch minimum depth.
• Minimum 3000 psi concrete.
• Multi-directional use.
• Minimum Breaking Strength (MBS): 10,000 pounds.
• Reuseable.
• Meets ANSI and OSHA standards.

SPECIFICATIONS:

Anchor Application	Concrete
Style	Connecting Hardware
Color	Silver, Black
Permanent/Temporary	Temporary
Material	Stainless Steel, Aircraft Cable
Certifications	ANSI Z359.18-2017, OSHA 1910 & 1926
